Summary of Contents for Red Rhino RGLIV4500

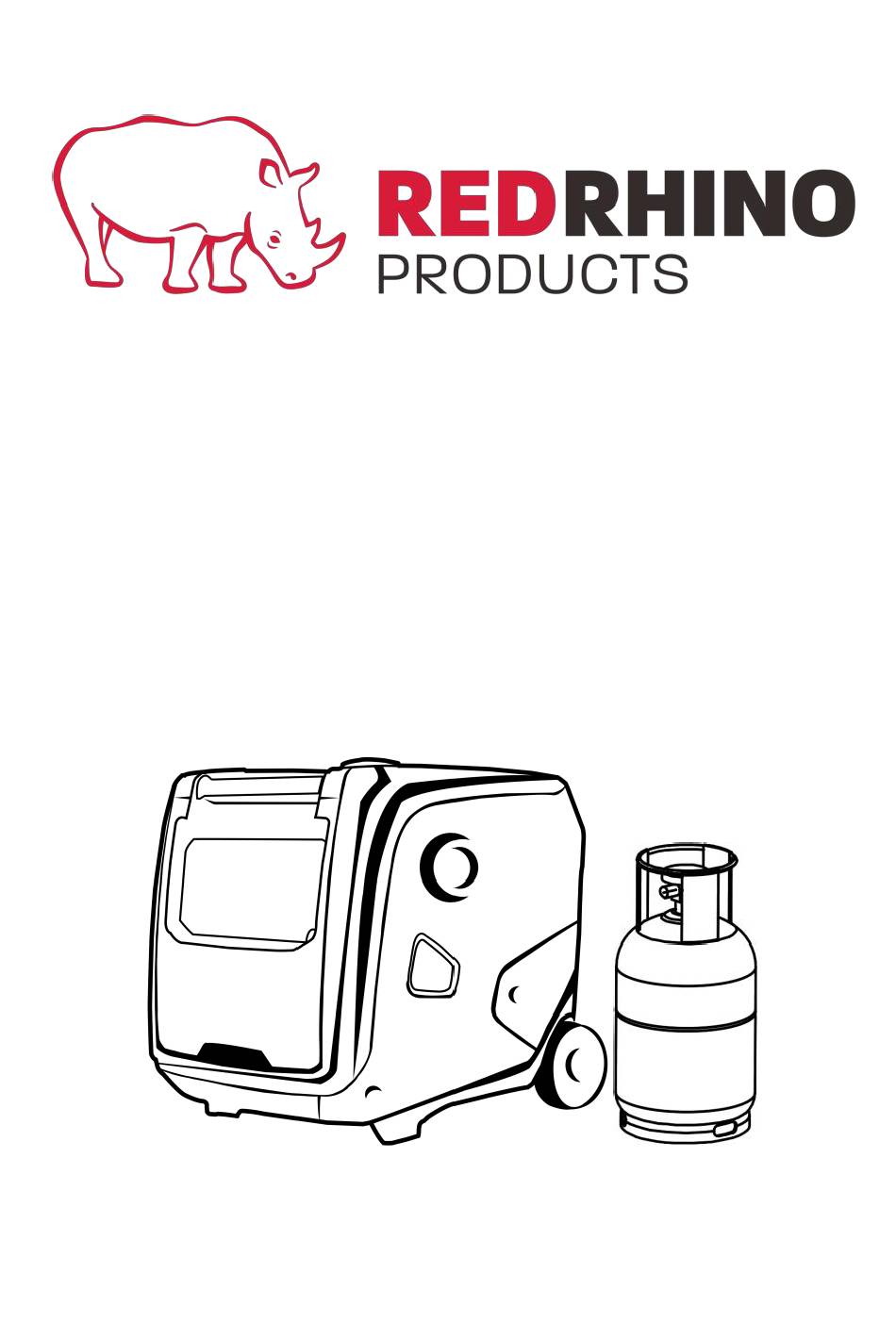

  • Page 1 DUAL FUEL INVERTER GENERATOR USER’S MANUAL...
  • Page 2 Thank you for choosing a inverter generator. This manual covers the right operation and maintenance. Before operating, please read it carefully, then you’ll gain good rewards. All technical data and drawings in this manual are consistent with the latest products while publication. As a result of revisions and other changes, the contents of this manual may be slightly different from the actual situation.
  • Page 3: Safety Warning

    Safety Warning The personal and property safety of you and others is very important. Please read carefully the extremely important safety warnings we have written in the manual and the label of the generator set. Safety warnings can alert you to potential dangers that may harm you and others.
  • Page 4: Table Of Contents

    Content ……………………….……………………………………3 Safety Warning ……….. Content …………………………………….…………………………………………………..4 1. Safety Instruction ..................6 1.1 Safety Specification ................ 6 1.2 Special Request ................7 2. Safety Warning Label .................. 8 3. Components Identification ............... 9 3.1 Components Feature ..............9 3.2 Control Panel .................. 10 3.3 Model and Serial Number ............
  • Page 5 6.How to Use the Generator ............... 19 6.1 Connect to Household Power Supply ........20 6.2 Generator Grounding ..............21 6.3 AC Power ..................22 6.4. Used at High Altitudes ..............23 7. Starting the Engine ................... 24 7.1 Preperation ..................24 7.2 Electric Start ..................
  • Page 6: Safety Instruction

    1. Safety Instruction 1.1 Safety Specification Please read and be well known about the manual before operating. Familiarity with the safe operating procedures of generators can help you avoid accidents. Don’t use it indoor Don’t use it in damp environment. Do not connect directly to household No smoking while adding fuel appliances.
  • Page 7: Special Request

    Do not spill fuel out when fueling. Stop generator before filling fuel. Be away from inflammable at least 1m. 1.2 Special Request Electrical equipment includes unexposed wires and plugs.  The protecting breaker should be matched with generator. The  application parameters and performance should be totally matched if changing.
  • Page 8: Safety Warning Label

    2. Safety Warning Label Please read the manual carefully before using. Safety warning label...
  • Page 9: Components Identification

    3. Components Identification 3.1. Components Feature Fuel tank cover Oil label window Raise your hand Four-in-one switch Engine oil maintenance door Control panel Maintenance door knob Handle Muffler cover plate Left appearance cover plate LPG interface Muffler vent...
  • Page 10: Control Panel

    3.2 Control Panel ( Factory will adjust the panel according to different configuration. Please note that subject to change without prior notice. ) Gas Switch Gas indicator light Gas indicator light Circuit Breaker LPG indicator light 10 DC Overload indicator Oil warning light 11 DC POLAR AC Indicator Light...
  • Page 11: Model And Serial Number

    3.3 Model and Serial Number Model Product Number Serial Number...
  • Page 12: Control System

    4.Control System 4.1 Petrol, LPG converting system This is an automatic converting function between petrol fuel and LPG fuel. When petrol and LPG are both filled to power the generator, the LPG is priority to be consumed. When the LPG is used up or shut down manually, the converting system detects that the pressure is too low to meet run the generator, it will automatically switch to the use of petrol fuel.
  • Page 13: Petrol And Lpg Converting Systerm

    4.2 Engine oil alerting system (YELLOW) The engine oil protection system will stop the engine automatically, engine indicating lights, while the oil in crankcase is under safe line; Fill the engine oil to the oil level, it can be restart again. If the engine oil alerting light flashes for few seconds, it means the oil capacity is insufficient.
  • Page 14: Ac Indicating Light(Green)

    4. Restart the engine after checking. Notice: When using the electrical equipment with high starting current(like compressor and sinking pump...), the overload indicating light may will flash for few seconds. But this doesn’t belongs to troubles as before mentioned. 4.4 AC Indicating Light (GREEN) The AC indicating light will be on while the engine starts and keep normal output.
  • Page 15 oil consumption and low noise. ② “OFF” While the Eco switch is on position of “OFF”, whether it connects with load, the engine also runs at a rated rotating speed.(3600r/min) NOTICE: Cause it needs heavy start current, ECO switch must be off while using compressor.
  • Page 16: Preparation

    5. Preparation 5.1 Fill Petrol Fuel, LPG The petrol fuel and LPG are flammable and toxic.  Please read the safety instruction carefully before refueling. (See Page6 for details.) Do not fill the tank with too much fuel, or the fuel will ...
  • Page 17: Engine Oil

    To avoid damage the plastic outer case, please wipe off residual  petrol with a clean, soft cloth after refueling. You must use unleaded petrol. The leaded one would damage the  internal parts of the engine. Suggested Fuel Type: unleaded petrol Fuel Tank Capacity: 12L(H4500iER) Suggested LPG: Commercial propane gas 5.2 Engine Oil...
  • Page 18: Choke Valve

    carburetor. Please make sure it is on position of “OFF” after stop working. 5.4. Starting handle Pull the starting handle gently until you feel there is resistance, and then pull it out suddenly. Do not let the starting handle bounce back suddenly after starting, but gently put the handle back.
  • Page 19: Ac Breaker Protector

    5.6.Fuel switch Overload current can turn off the breaker protector automatically. The load shortened and overload should be avoided. If the breaker protector closed automatically, please must test the loading before opening. AC Breaker Protector 5.7 Ground Terminal Ground terminal connect the ground for prevention of electric shock. When the electric device is grounded, be sure to ground the generator also.
  • Page 20: Connect To Household Power Supply

    · Applicable altitude: areas below 1000 meters ( If you operate your engine at altitudes above 1000 meters, reduce the engine power or modify the carburetor by contacting the suppliers. 6.1 Connect to Household Power Supply When the generator is connected to the household power supply as a standby power supply, it should be connected by a special electrician or someone familiar with the electricity.
  • Page 21: Generator Grounding

    6.2 Generator Grounding In order to prevent the generator from being damaged by electric shock or misuse of inferior electrical appliances, the generator should be grounded by a good insulated conductor. Ground Terminal 6.3 AC Power Before starting the generator, it should be confirmed: The total power of all electrical appliances (the sum of resistance, capacitance and inductive load) shall not exceed the rated power of the generator.
  • Page 22 Generally speaking, capacitive and inductive loads, especially motor drive devices, will cause large starting current when starting. The following table is for your reference when connecting these electrical appliances to the generator set. 6.4 Used at High Altitudes This engine may require a high altitude carburetor kit to ensure correct engine operation at altitudes above 1000 meters.
  • Page 23: Used At High Altitudes

    petrol engine can be improved by replacing a slightly smaller main nozzle on the carburetor or by adjusting the adjustment screw. If you often use generators in areas over 1000 meters, you can buy special high-altitude components for replacement. Otherwise , reduce load power when using generator。...
  • Page 24: Preperation

    7.1 Preparation 1) remove all loads from the output. 2) rotate the start switch to place the Start button in the "start" position. 3) place the AC circuit breaker protector in the "closed" position. 7.2 Electric Start 1) connect the positive wire to the positive extreme of the starting battery before starting, and then fasten it with tools.
  • Page 25: Petrol Fuel And Lpg Conversion

    When the petrol engine starts in the hot engine status, please rotate the start switch to place the start button in the "running" position. 4)Press the “ON” button. 5)After starting the engine, rotate the engine switch to place the start button in the "run"...
  • Page 26: Stopping The Engine

    completed. If your dual fuel generator is not equipped with electric start, or the battery capacity is too low to start the generator normally, your generator can not be started directly by using LPG at this time, you must ensure that there is enough petrol fuel in the fuel tank, start the generator by petrol fuel first, if you want to run the generator by LPG, then press the switch button on the control panel for 3 seconds to complete the conversion.
  • Page 27: Engine Oil Replacement

    condition, you must check and maintain it regularly. Please follow the schedule below. Period Each First month Each 3 months Each year or Item or 20 hours or 50 hours 200 hours Check-Refill √ Engine Oil Change √ √ √ Check level Reduction Gear Oil (If have)
  • Page 28 ② Install the oil drain bolt and tighten it. ③ Add engine oil to the correct level. ④ Install the oil level gauge. Oil Capacity: RGLIV4500 0.6L Long-term and frequent skin exposure to engine oil may lead to skin cancer. Soap and water are recommended to wash the oil-exposed...
  • Page 29: Air Filter Maintenance

    To protect environment, please properly deal with the waste oil after use. We strongly recommend that: put waste oil into sealed containers (bottle or cans), and then send it to your local service station or waste oil recycling center. Keep in mind: don't throw it into the garbage dump or dump it on the ground or in the ditch.
  • Page 30 4)Fill in the filter element and cover the air filter cover. Filter element Air filter cover Lock clamp...
  • Page 31: Spark Plug

    10.3 Spark plug Please replace the spark plug according to the original type: F7TC 1) Remove the spark plug cap. 2) Use the spark plug socket wrench to remove the spark plug. 3) Visually inspect whether the spark plug insulator is damaged. Replace the spark plug if it is damaged.
  • Page 32: Storing

    11. Storing avoid combustion misfire contact with high-temperature components of the generator, the generator must be cooled before packaging and storage. If long-term storage is required, please make sure the storage area is clean and dry. 1) Drain fuel from the fuel tank.Clean the fuel filter, O - ring seal and precipitation cup after the assembly.Unscrew the carburetor drain bolt, drain the fuel from the carburetor entirely, then reinstall and tighten the carburetor drain bolt.
  • Page 33: Troubleshooting

    12. Troubleshooting...
  • Page 34: Electrical Diagrams

    13. Electrical Diagrams According to different features,factory may adjust without prior notification.)...
  • Page 36: Technical Specifications

    14. Specification Model# RGLIV4500 Single Cylinder、4 stroke、Air-cooling、 Engine Type Cylinder center is tilted 25° Displacement(cc) Ignition System Engine E.D.I. Starting Type Recoil Start Fuel Tank Capacity (L) 12.5L Engine Oil Capacity(L) 0.6L Frequency (Hz) 50Hz Phase Single Phase Voltage(V) 230V Rated Output(kW) 3.5kW(petrol)/3.2kW(LPG)
