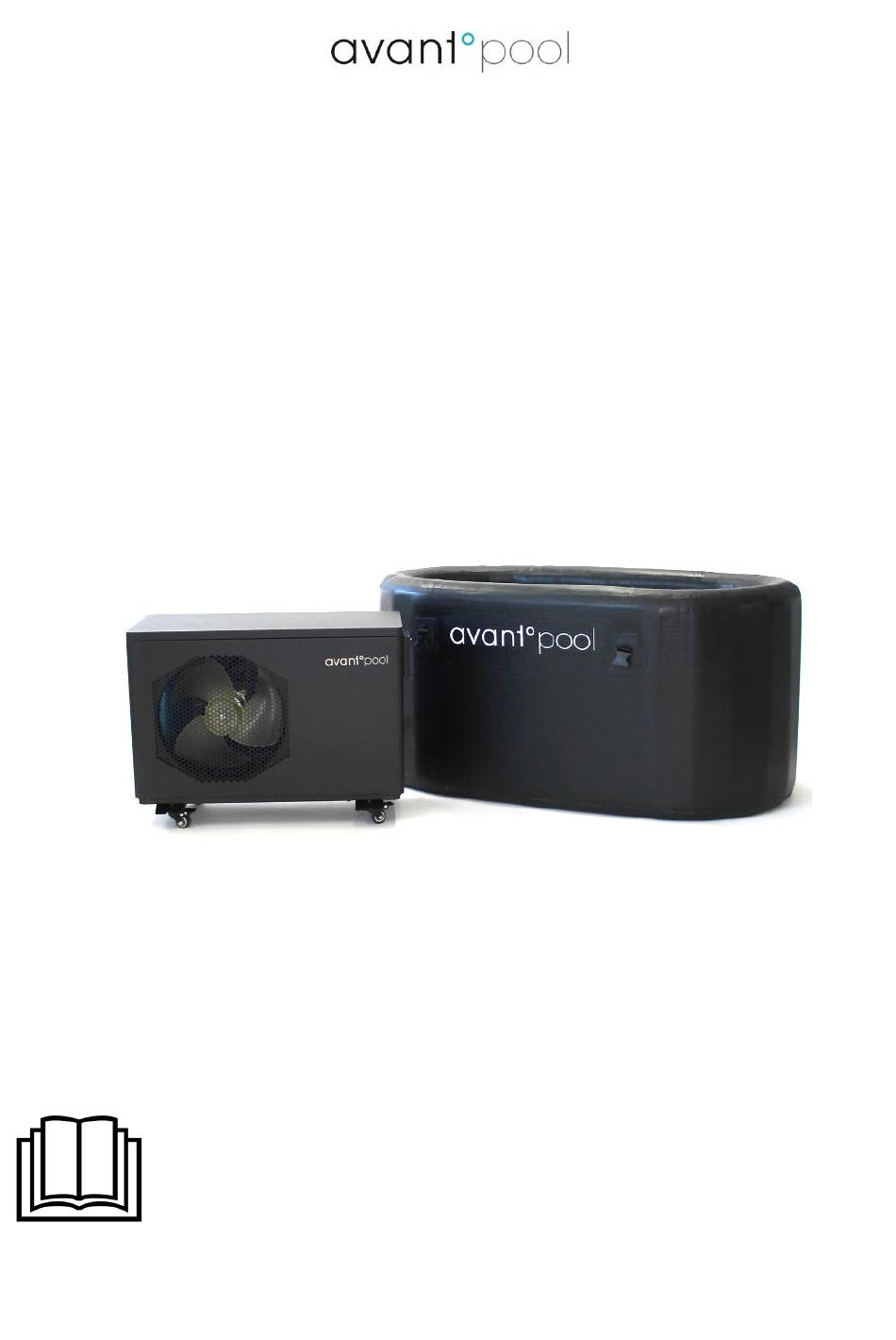

- Page 1 Avantopool Kide with Cooling & Heating Unit Installation and User Manual Please read this manual carefully before installation, operation or maintenance.
-
Page 2: Table Of Contents
Time Setting ......................................8 Power ON/OFF Timer Setting (“Sleep Mode”) ........................8 Filling the Pool and letting air out of the unit ......................9 Kide Pool – implementation steps ........................10 MAINTENANCE ..............................11 General maintenance and quality of water ............................ 11 Maintenance tips ....................................... -
Page 3: Warning
Warning a. For repairs, please contact service. The repair process must be done in strict accordance with this manual. All maintenance operations by non-professional personnel are prohibited and will void warranty. b. Misoperation may result in injury to personnel or damage to equipment. c. -
Page 4: Cooling & Heating Unit Installation
COOLING & HEATING UNIT INSTALLATION Installation Distance for the Unit cooling unit should be installed in a well-ventilated area. It should be installed in the place greater than the following distances: - Min. distance between unit front and wall = 1500mm (150 cm) - Min. -
Page 5: Attaching Water Hoses To Unit
Attaching Water Hoses to unit Use the hoses included in the delivery package. Threaded connectors are pre-attached in the hoses. Please make the sealing o-rings are correctly in place before attaching the connector. Layout of water circulation between the unit and pool (filtering is optional) If the operating ambient temperature is below 0°C, please keep the unit running and at “Automatic”... -
Page 6: Operation Of The Unit
OPERATION OF THE UNIT Controller Interface Operation Instruction of Controller Power and Screen Lock To unlock, press any key to light up the screen and long press “ ” 5 seconds until you hear a “beep” sound. The lock icon “ ”... -
Page 7: Temperature Setting
Temperature Setting When the cooling unit is on, unlock the screen (see “Power and Screen Lock”). Press up “ ” or down “ ” to adjust the temperature. No actions for 3 seconds will exit to display showing set target temperature and the current water temperature. Error messages on Display When the fault occurs, the corresponding error code will appear. -
Page 8: Time Setting
Time Setting (1) Enter Time Setting: Long press the “ ” key for 5 seconds until the digit in both “hour” and “minute” parts flash. (2 ) Time Setting Method: On the time setting interface, short press “ ”. Then the hour digit in area will blink. -
Page 9: Filling The Pool And Letting Air Out Of The Unit
Filling the Pool and letting air out of the unit Fill the pool slightly below the upper nozzle and use same water hose to run water from the upper nozzle to get air out of the unit. Then turn on the unit. If the air does not come out of the unit and no flow (error P01) appears after unit starts, stop the unit, and run water from the upper nozzle again, keep the hose tightly in the upper nozzle. -
Page 10: Kide Pool - Implementation Steps
Kide Pool – implementation steps Attach the pump hose to the pool, as shown in the picture, and apply approximately 0.3-0.5 bar of pressure into the pool. 2. Attach the connectors: unit/pool q. Place the o-ring inside the connector and turn clockwise until tight. -
Page 11: Maintenance
MAINTENANCE General maintenance and quality of water Maintenance of pool. Make sure the water stays clean and clear. Depending on the utilization frequency, occasional use of chlorine might be needed to disinfect the water (especially in heavy public use) On daily basis: Check the water level. On weekly basis: Clean the possibly stained water line and the filter. -
Page 12: Warranty
- Flood or rainwater, insect infestation or unreasonable outdoor exposure - Damage caused due to the product not being reasonably installed, operated, maintained or used in accordance with Avantopool’s instructions and specifications (User Manual) - Damage caused by unauthorized alterations, accident, misuse, abuse, use of an incorrect... - Page 13 At its discretion, Avantopool may either repair the product at the premises of the owner of the product, or if the repair is beyond the scope of a local repair agent, Avantopool may request that the product be shipped back to it’s factory for a more thorough and comprehensive examination and repair.
