Related Manuals for Avantopool Kinos
Summary of Contents for Avantopool Kinos

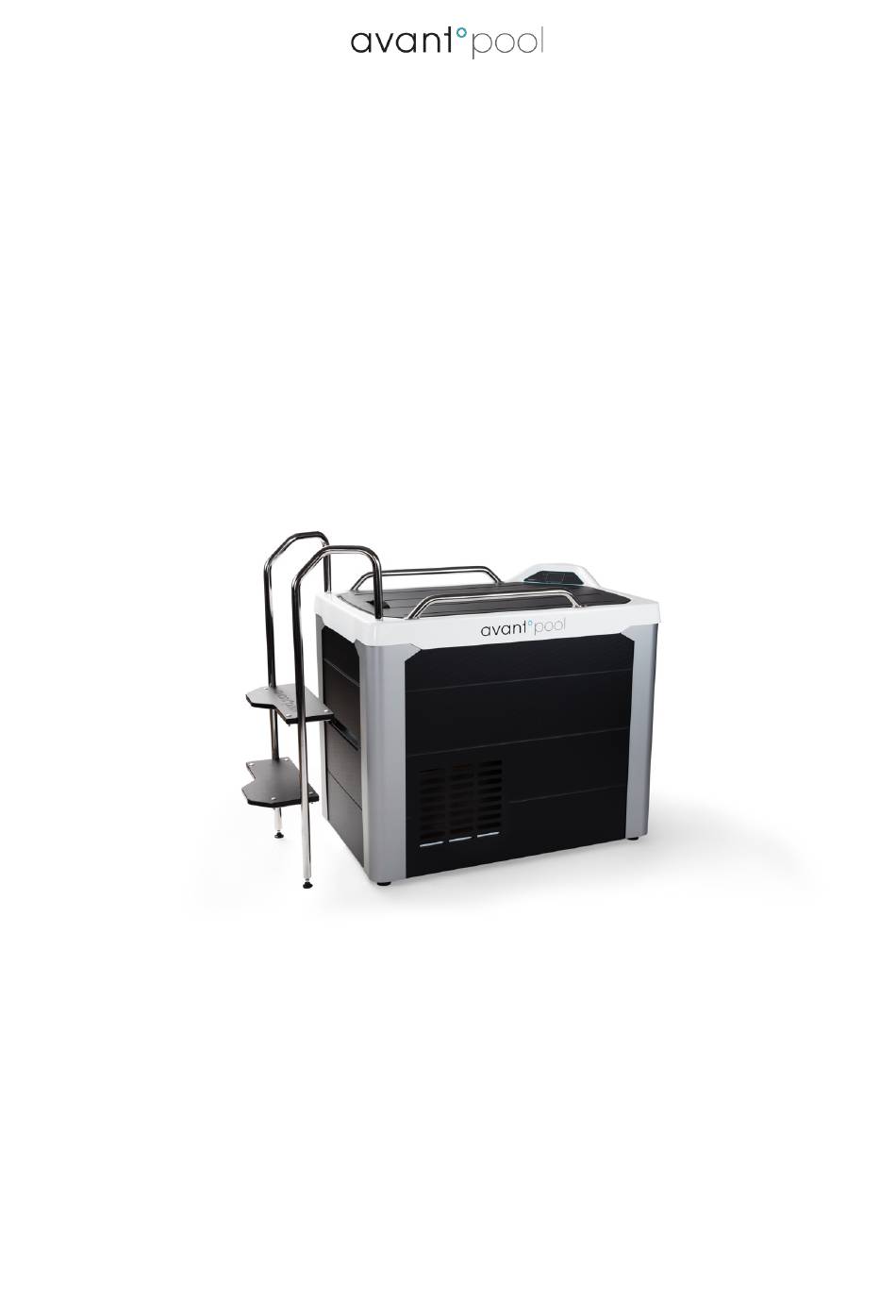

- Page 1 Avantopool Kinos installation and User Manual The serial number of your Kinos pool is www.avantopool.com...
- Page 2 Congratulations for your purchase of Kinos cold pool! Avant°pool Kinos is an easy-to-use and compact indoor cold pool, which gives you the benefits of winter swimming all year round. It enables optimal and high- quality cold recovery, eases muscle pain and inflammations, helps sleep and improves immune system.
- Page 3 • DO NOT OPEN THE ELECTRIC CABINET • DO NOT USE THE KINOS POOL OUTDOORS WITHOUT A PROPER COVER, IT SHOULD BE • PROTECTED FROM RAIN AND SNOW AT ALL TIMES DO NOT USE SLEEP MODE, IF AMBIENT TEMPERATURE IS BELOW 4 •...
-
Page 4: Table Of Contents
Table of content General safety instructions ..........................5 Main external parts of Kinos pool ........................6 Technical information ..........................6 Transportation, installation, electrical connection ..................7 Detaching and attaching the panels ......................7 Installing the stairs ............................8 Start-up instructions ............................9 Operating instructions .......................... -
Page 5: General Safety Instructions
Persons using medication should consult a physician or a doctor before using • the pool since some medication may induce drowsiness while other medication may affect heart rate, blood pressure and circulation. Pregnant women should consult a physician or a doctor before using the pool. • www.avantopool.com... -
Page 6: Main External Parts Of Kinos Pool
Main external parts of Kinos pool Technical information Measurements, without stairs: Length 1200 mm, width 790 mm, height 1050 mm • Measurements, including stairs: Length 1200/1540 mm, width 790/1130 mm, height 1220 mm • Capacity: 300 l • Weight when filled: 450 kg •... -
Page 7: Transportation, Installation, Electrical Connection
Transportation, installation, electrical connection Kinos pool is packed in covering, durable and easily transportable carton container. It can be easily moved with a pallet jack. There are inset handles at both ends of the pool to help manual moving. The package container can be stored or re-used when needed. -
Page 8: Installing The Stairs
2. Place the pins of the stairs (or rail) through the holes. If needed, fasten to the frame using the pipe bushings and nuts. 3. Adjust the height of the stairs to correct level by screwing the pads. www.avantopool.com... -
Page 9: Start-Up Instructions
Set the existing time of the day with the arrows on the screen and press Save – or bypass time • setting by pressing Save Fig. 3a Fig. 3b www.avantopool.com... - Page 10 The default target is set to 10 C. (Fig. 5) Fig. 5 Now the Kinos cold pool is successfully turned on! • Note! There is approx. 7 min delay before the cooling starts. •...
-
Page 11: Operating Instructions
University of Jyväskylä faculty of Sports and Exercise Medicine. Set the timer by using the + and – buttons. The timer starts by pushing the Start button (triangle) and can be stopped and cleared by using Stop button (square). www.avantopool.com... -
Page 12: Entering And Exiting The Pool
Entering and exiting the pool In Kinos pool you can immerse partly or fully to the neck level. During entering and exiting the pool pay close attention as the surfaces might be slippery from water. Use the stairs and lean on the rails while entering and exiting the pool. Notice that you might feel temporary stiffness in limbs caused by the cold water, especially after a longer immersion time. -
Page 13: Display Options
Temperature mode By pressing the cogwheel icon long, ”Temperature mode” –menu will appear (Fig. 7). Options are: show only Celsius or only Fahrenheit, or both. Desired choice is made by pressing the corresponded icon and then Save. Fig. 7 www.avantopool.com... -
Page 14: Set Temperature
Desired choice is made by pressing the corresponded icon and then Save. Fig. 9a If you choose Lock and Save, then the + and - buttons in touch screen will disappear (Fig.9b). They can be returned by choosing Unlock and Save. Fig. 9b www.avantopool.com... -
Page 15: Sleep Mode
Note! Do not use sleep mode, if ambient temperature is below 4 Fig. 10 Fig. 10b When device is in sleep mode, touch screen will show the remaining time (Fig. 11). Sleep mode can be interrupted (that time) by pressing Cncl. Fig. 1 www.avantopool.com... -
Page 16: Time Of Day
Precondition for Sleep mode to work properly is, that Time of the day is set. By pressing the cogwheel icon long and then < or > buttons, you can change the menu to “Set time of day”-mode (Fig. 12). If necessary, set the time and press Save. Fig. 12 www.avantopool.com... -
Page 17: General Maintenance And Quality Of Water
Depending on the utilization frequency, occasional use of chlorine might be needed to disinfect the water (especially in heavy public use). Should Kinos pool be in public use, the requirements set by local authorities for the water quality must be obeyed. - Page 18 Fig. 13a Fig. 14a Fig. 15 www.avantopool.com...
-
Page 19: Replacing The Water
If the water is not circulating properly, the device will stop itself and an error message will appear (Fig. 16). Check the water level and condition of the filter cartridge. Add more water if needed. Clean the filter cartridge or replace it if needed. Should problem remain, please contact the retailer or manufacturer. Fig. 16 www.avantopool.com... -
Page 20: Temp Measure Err (Hi)
If the power supply is ok but the residual-current device has turned off the power, push the green button to de-activate. Should the problem remain, unplug the device and contact the retailer or manufacture www.avantopool.com... -
Page 21: Warranty
Damage or defect caused by misuse of the device, wrong or inadequate electrical • current or connection, negligence, inappropriate on-site operating conditions, repairs by non-Avantopool designated personnel, tampering, alterations or accidents in later transportations. Flood or rainwater, insect infestation or unreasonable outdoor exposure •... - Page 22 Where Avantopool determines that the repair needs to be carried out at it’s factory, Avantopool will be responsible for the cost of land transport so long as that transport is arranged by or approved by Avantopool.
-
Page 23: Eu Declaration Of Conformity
02270 Espoo FINLAND Declaires that this appliance set to the market: Avantopool model: Kinos compies with the requirements of Low Voltage Directive 2014/35/EU: Household and similar electrical appliances – Safety – General requirements IEC 60335-1 Particular requirements for whirpool baths and whirpool spas IEC 60335-2-60...
