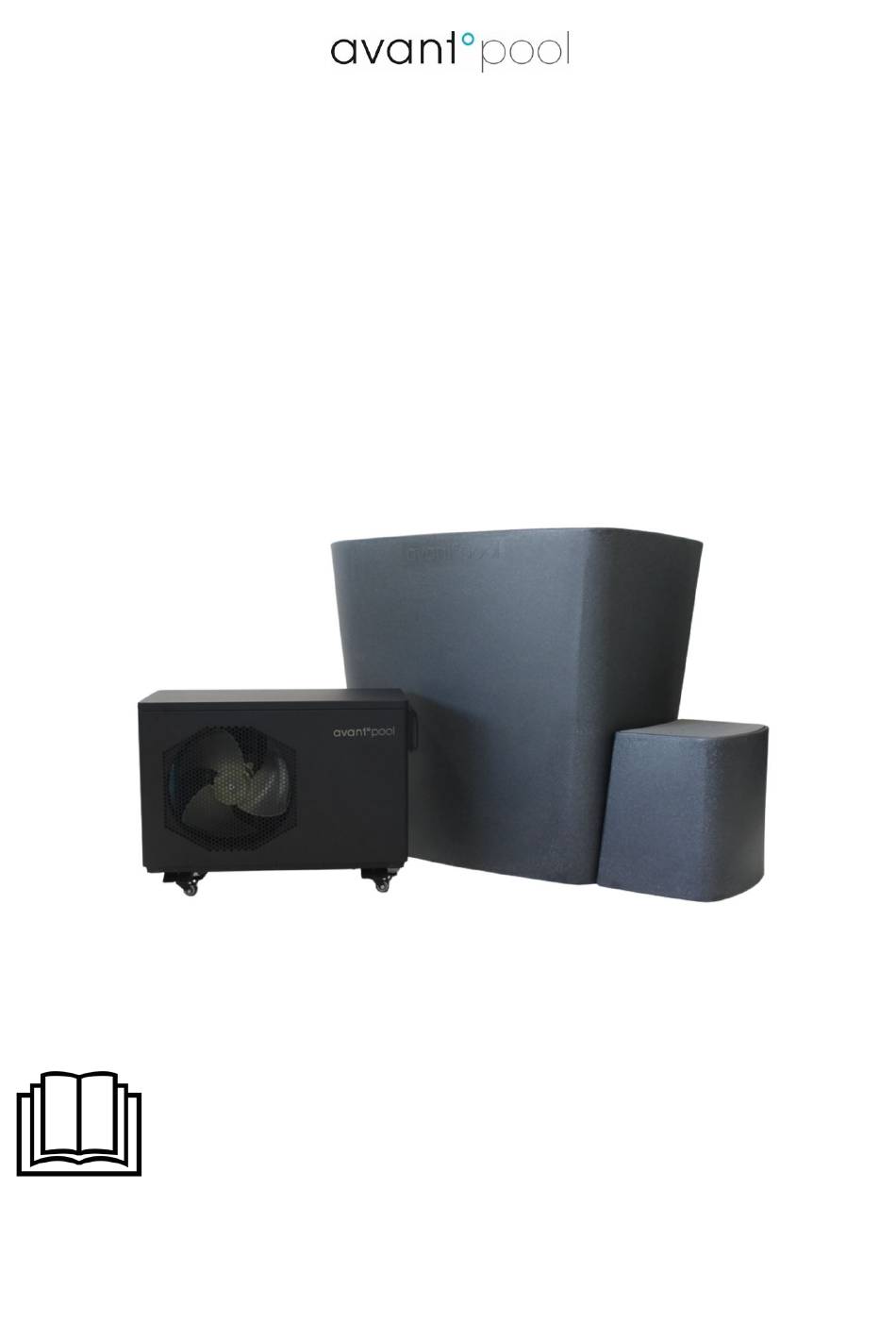

- Page 1 Avantopool Hanki with Cooling & Heating Unit Installation and User Manual Please read this manual carefully before installation, operation or maintenance.
-
Page 2: Table Of Contents
Time Setting ......................................8 Power ON/OFF Timer Setting (“Sleep Mode”) ........................8 Filling the Pool and letting air out of the unit ......................9 Hanki pool – implementation steps ........................9 MAINTENANCE ..............................12 General maintenance and quality of water ........................... 12 Maintenance tips ...................................... -
Page 3: Warning
Warning a. For repairs, please contact service. The repair process must be done in strict accordance with this manual. All maintenance operations by non-professional personnel are prohibited and will void warranty. b. Misoperation may result in injury to personnel or damage to equipment. c. -
Page 4: Installation Distance
Installation Distance cooling unit should be installed in a well-ventilated area. It should be installed in the place greater than the following distances: - Min. distance between unit front and wall = 1500mm (150 cm) - Min. distance between unit back and wall = 300mm (30 cm) - Min. -
Page 5: Attaching Water Hoses To Unit
Attaching Water Hoses to unit Use the hoses included in the delivery package. Threaded connectors are pre-attached in the hoses. Please make the sealing o-rings are correctly in place before attaching the connector. Layout of water circulation between the unit and pool (filtering is optional) If the operating ambient temperature is below 0°C, please keep the unit running and at “Automatic”... -
Page 6: Operation
OPERATION Controller Interface Operation Instruction of Controller Power and Screen Lock To unlock, press any key to light up the screen and long press “ ” 5 seconds until you hear a “beep” sound. The lock icon “ ” disappears. Long press the “ ”... -
Page 7: Temperature Setting
Temperature Setting When the cooling unit is on, unlock the screen (see “Power and Screen Lock”). Press up “ ” or down “ ” to adjust the temperature. No actions for 3 seconds will exit to display showing set target temperature and the current water temperature. Error messages on Display When the fault occurs, the corresponding error code will appear. -
Page 8: Time Setting
Time Setting (1) Enter Time Setting: Long press the “ ” key for 5 seconds until the digit in both “hour” and “minute” parts flash. (2 ) Time Setting Method: On the time setting interface, short press “ ”. Then the hour digit in area will blink. -
Page 9: Filling The Pool And Letting Air Out Of The Unit
Restart the unit and fill the pool to desired level. Hanki pool – implementation steps Attach the step • Turn the step into place as shown in the picture. - Page 10 2. Attaching the hoses (with Camlock connectors) • Push the hose into the connector as shown in the picture. 3. Lock the connector as shown in the picture. • Note: You can secure the Camlock connectors with the safety pins 4.
- Page 11 5. Attach the filter (optional) 6. Use scissors to cut off the cable tie. Install the gasket on the valve and turn the valve clockwise to tighten. 8. Valves with seals installed. 9. Ensure that your setup resembles this: the upper hose from the unit should connect to the upper hole in the pool, and the lower hose should connect to the lower hole in the pool.
-
Page 12: Maintenance
MAINTENANCE General maintenance and quality of water Maintenance of pool. Make sure the water stays clean and clear. Depending on the utilization frequency, occasional use of chlorine might be needed to disinfect the water (especially in heavy public use) On daily basis: Check the water level. On weekly basis: Clean the possibly stained water line and the filter. -
Page 13: Warranty
Avantopool designated personnel, tampering, alterations or accidents in later transportations. - Flood or rainwater, insect infestation or unreasonable outdoor exposure - Damage caused due to the product not being reasonably installed, operated, maintained or used in accordance with Avantopool’s instructions and specifications (User Manual) - Page 14 At its discretion, Avantopool may either repair the product at the premises of the owner of the product, or if the repair is beyond the scope of a local repair agent, Avantopool may request that the product be shipped back to it’s factory for a more thorough and comprehensive examination and repair.
