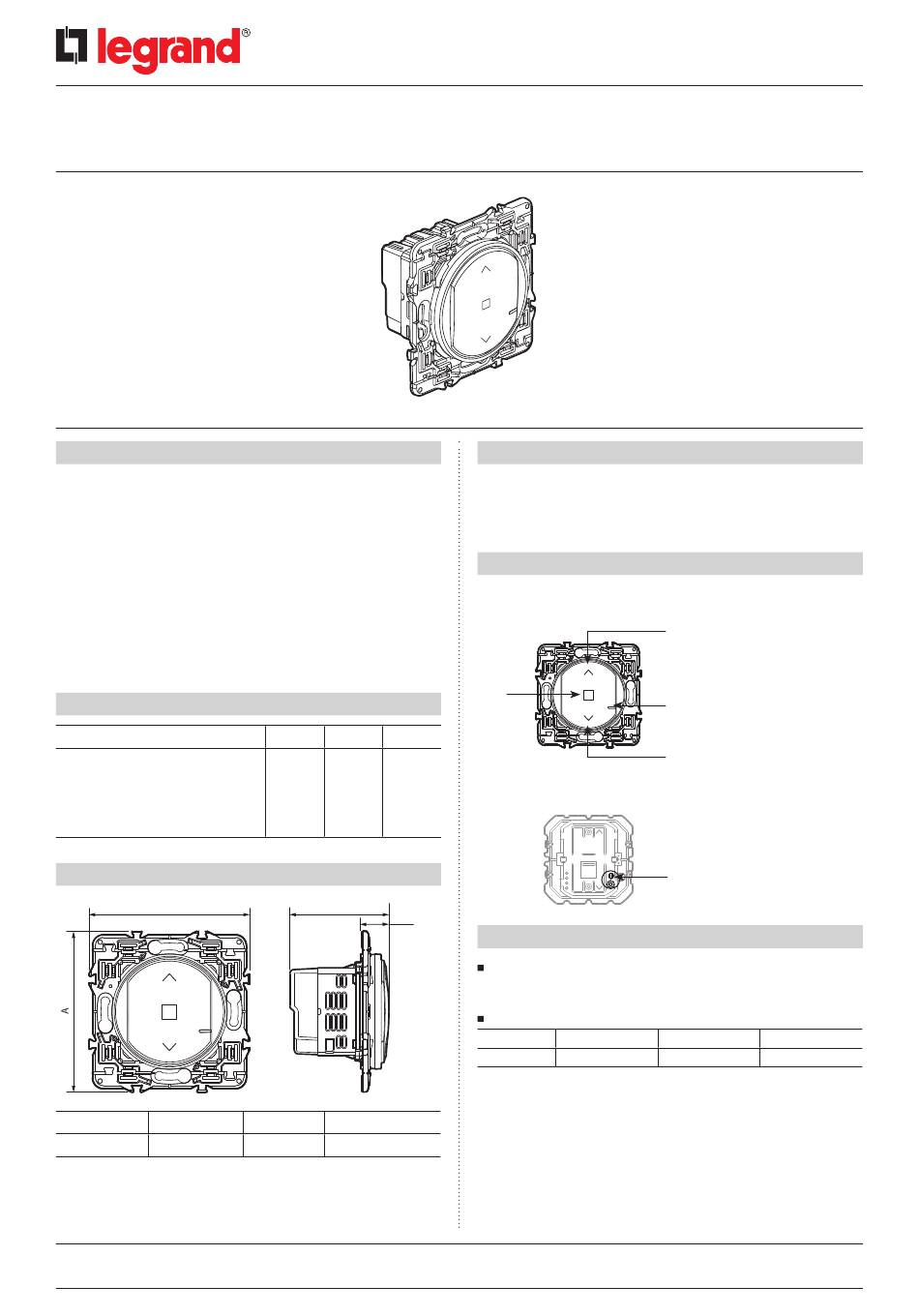

LEGRAND Celiane 0 677 26A Quick Start Manual

Céliane with Netatmo
TM

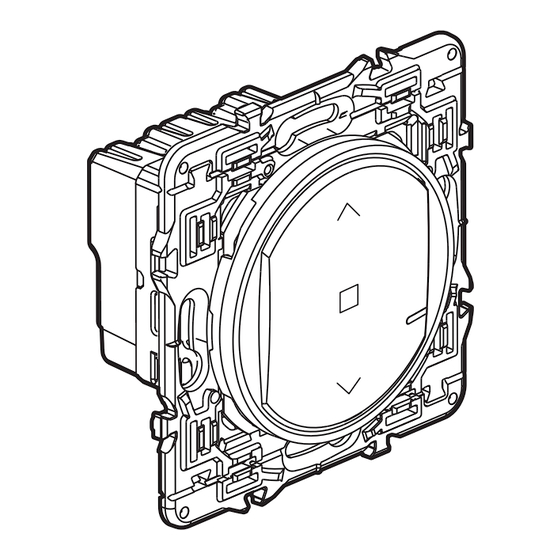

Connected switch for roller shutters
and orientable sun shades
1. USE
For local or remote control of roller shutters or orientable sun shades.
Can be combined with one or more wireless roller shutters controls.
Can be installed in place of an existing roller shutters switch in a flush-
mounting box 40 mm deep (minimum).
The Céliane with Netatmo solution is compatible with roller shutters and
orientable sun shades (OSS) with a mechanical or electromechanical
stop, controlled by a standard wired switch for roller shutter.
Caution: Must be connected to the neutral.
Not compatible with radio-controlled roller shutters motors.
Screw fixing.
Self calibration function to enable roller shutters level control.
Orientable sun shades control function (to be selected in Home + Control
App).
2. RANGE
Description
Connected switch for roller shutters and orientable sun
shades.
Supplied with rocker plate and site protection cover.
Equipped with an LED indicator.
Hidden reset button used to return to factory settings.
To be equipped with plate
3. DIMENSIONS (mm)
B
A B
74 74
Technical data sheet: F02505EN/02
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
White Titanium Graphite
0 677 26A 0 677 76A 0 648 96A
C
D
C D
46 13
Updated: 20/06/2022
Cat. Nos: 0 677 26A/76A - 0 648 96A
4. CONNECTION
Terminal type: screw
Terminal capacity: 1 x 2.5 mm - 2 x 1.5 mm
2
Stripping length: 8 mm
Screwdriver: 3 mm flat
5. OPERATION
Integrated time delay for up/down inversion = 500 ms
STOP
6. TECHNICAL CHARACTERISTICS
6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies/liquids: IP 41 assembled product
6.2 Material characteristics
Colour White RAL 9003
Rocker plate
ABS
Mechanism casing: PC
Grid: 6.6 PA + Galfan steel
Halogen-free
UV-resistant
Self-extinguishing:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
2
Up when pressed at the top:
- short press raises to the top
- long press raises until released
- OSS mode: long press tilts slats
LED indicator:
- useful during installation
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
- OSS mode: long press tilts slats
RESET button
used to return to factory settings
Titanium Graphite
Painted ABS Painted ABS
Created: 16/01/2018
1/2
