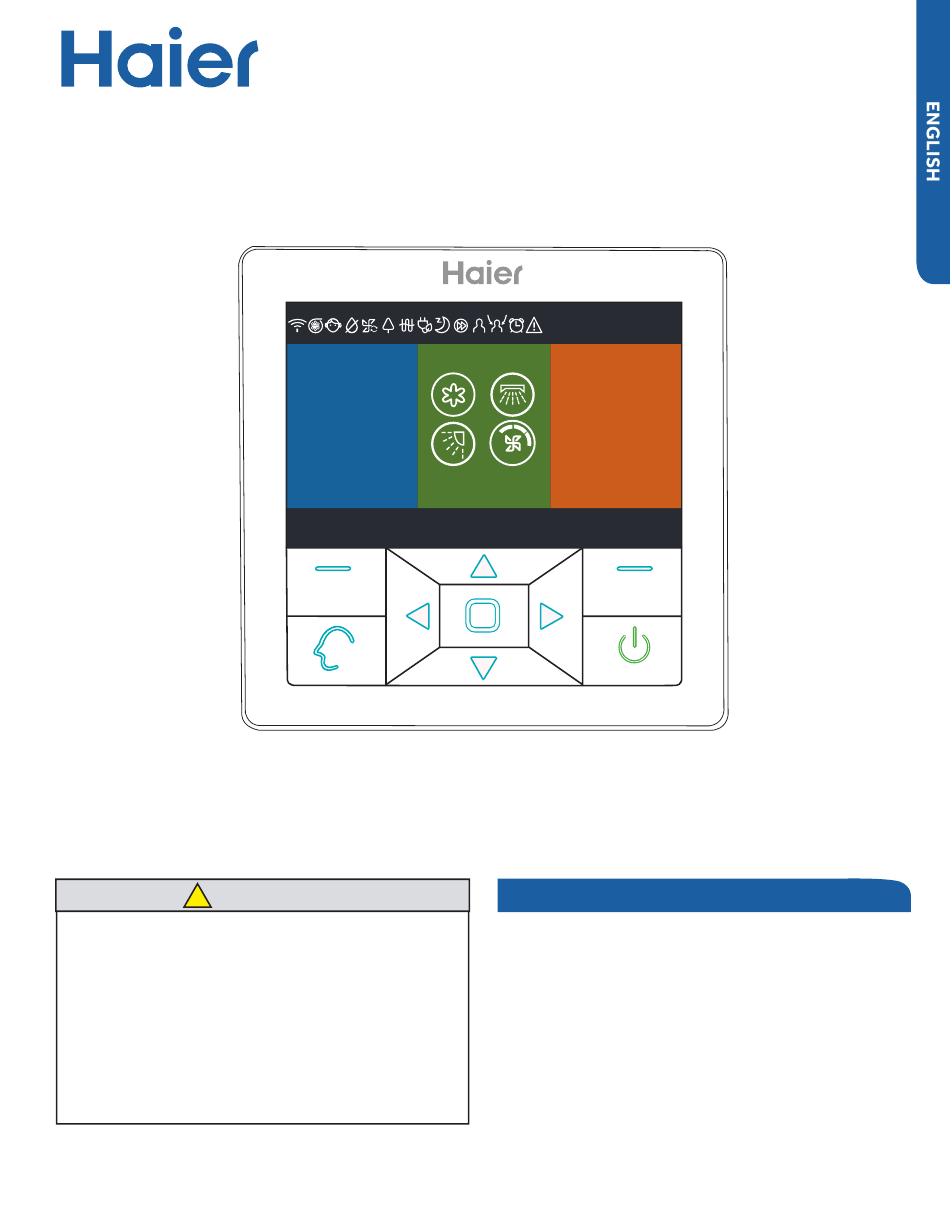

YR-E16b Wired Controller
User Manual
WARNING
!
• This system should be installed by a qualified HVAC
professional. Incorrect installation may cause fire, water
damage, personal injury or death.
• When abnormalities such as a burnt smell are detected,
immediately power off the main switch and contact a
licensed contractor.
• Do not obstruct or cover ventilation grill on the air con-
ditioner. Do not put fingers/objects into inlet, outlet or
swing louver
• Do not allow children to play on or near the outdoor
system equipment
Set temp.
76
°F
Indoor temp.
70 °F
Indoor humidity
32%RH
Mode
Menu
WIRED CONTROLLER
Ductless Split Air Conditioner
10:30
Thursday
01.01.2015
AM
Qty. online
Standby
Defrost
Master
Outdoor temp. 36 °F
Outdoor humidity 32%RH
Swing
TABLE OF CONTENTS
Wired Control Panel Functions .................. 2
Features and Interface ....................................2
Operation ................................................. 4
Settings & Functions .......................................4
Installation ................................................ 9
Page 1
Advertisement
Table of Contents
Related Manuals for Haier YR-E16b
Summary of Contents for Haier YR-E16b
- Page 1 Ductless Split Air Conditioner YR-E16b Wired Controller User Manual 10:30 Thursday 01.01.2015 Set temp. Qty. online °F Standby Defrost Master Outdoor temp. 36 °F Outdoor humidity 32%RH Indoor temp. 70 °F Indoor humidity 32%RH Mode Menu Swing WARNING TABLE OF CONTENTS • This system should be installed by a qualified HVAC...
-
Page 2: Wired Control Panel Functions
Wired Controller YR-E16b WIRED CONTROL PANEL FUNCTIONS Features and Interface Quiet function, 10:30 Thursday 01.01.2015 Turbo function. Set temp. Qty. online Child lock function. Pree the Left and °F Standby Defrost Master Right keys at the same time in the Outdoor temp. 36 °F... -
Page 3: Motion Sensing
Defrost function. Temp. ECO. The state of the indoor unit, this area can also display “operation” Motion sensing. The state of wired controller, this area also can display”slave”. “Master” 10:30 Thursday 01.01.2015 means the wired controller is the main Motion sensing follow. controller, “Slave” means the wired Set temp. Qty. online controller only can control parts of °F Standby Motion sensing evade. Defrost functions. Master Outdoor temp. -
Page 4: Operation
OPERATION Display Setting 10:30 Thursday Menu 10:30 Thursday 01.01.2015 01.01.2015 Settings & Functions English Spanish French Language Italian Chinese Russian 1. Keep pressing Left/Right key to speed uptime adjustment. Schedule Schedule Time Extra function Error code Service help Random timing Temp. unit °C °F Press the menu key in the main interface to enter the Schedule Segmented timing Random timing... -
Page 5: Error Code
1. In the schedule display interface, the mode icon in white means timer on and the gray mode icon means timer off. Extra Function 10:30 Thursday 01.01.2015 Press Up/Down key to select different schedule. Use the Quiet Ventilation Left/Right key to change pages. When the number flashes, press the enter key to display the setting interface where it Turbo Health can be edited. Child lock Quick start 2. Celsius or Fahrenheit can be selected. 12-hour or 24-hour Forced Night quiet defrost clock can also be selected. Return Enter Main... -
Page 6: Humidity Control
1. If password recovery is set, the interface will prompt as 7. A ngle definition: follows, then cancel or enter. Up/Down swing: 1 stands for angle 1,2 stands for angle 2,3 stands for angle 3,4 stands for angle 4,5 stands for angle 5, Do you really want to password 1 and 2 stand for health airflow up,4 and 5 stands for health recovery? airflow down, the circulation of 1->2->3->4->5 ->4->3->2- >1 stands for automatic swing. Cancel Enter Up/Down swing will be changed in sequence as follows: angle 1->angle 2->angle 3->angle 4->angle 5->automatic 1. Help function is available for only some models. The swing->angle 1. information is gray when it is not available. Sleep The function is reserved for some models. Swing Left/Right swing: Left/right swing can be adjusted as per the user’s Press enter key to enter the interface when swing icon is requirement. The circulation of 1->2->3->4->5->4->3->2- flashing in the menu. Password is required. -
Page 7: Display Setting
1. Current humidity is controlled by the indoor unit and can not be adjusted through wired controller. Display Setting 10:30 Thursday 01.01.2015 2. Target humidity can be adjusted. Press enter key to make Indoor temp display arrows static, then adjust the humidity with the Left/Right Indoor humidity display key. Press enter key to confirm. Outdoor temp display Outdoor humidity display Display Setting PM2.5 display Press the enter key to go to the next interface when the icon is Return Enter Main flashing in the menu. - Page 8 Basic setting Ambient temperature revision The information of model is controlled by the indoor unit and The revision value is only valid for wired controller ambient can not be changedas is the same to capacity information. temperature. Press enter key to make the arrows static and adjust the temperature using the Left/Right key. Normal fan The default information is controlled by the indoor unit. Basic Setting 10:30 Thursday...
- Page 9 Running time Wired Controller Wiring The function records both continuous running time and total running time. When the bottom color of “Clear” changes to 1. First put the communication wire through the hole in the white, press enter key to clear the accumulative running time. back cover. 2. Connect the communication wire to CON4 port of the wired controller. Finally, put the front cover of wired controller on Running Time 10:30 Thursday 01.01.2015 to the back cover to complete the installation. Continuous Running 0014:22:53 Clear...
- Page 10 B. One wired controller can control up to 16 sets of indoor units (max); A 3 conductor shielded cable must connect the wired controller and the master unit (the indoor unit connected to the wire controller directly). The others connect to the master unit also through a 3 conductor shielded cable.
- Page 11 Haier America, Model #: YR-E16b Wayne, NJ 07470 Issued Date: Aug 2016 update ©2016 Haier America Trading, LLC.
