Summary of Contents for Squatz SQABTWST
-

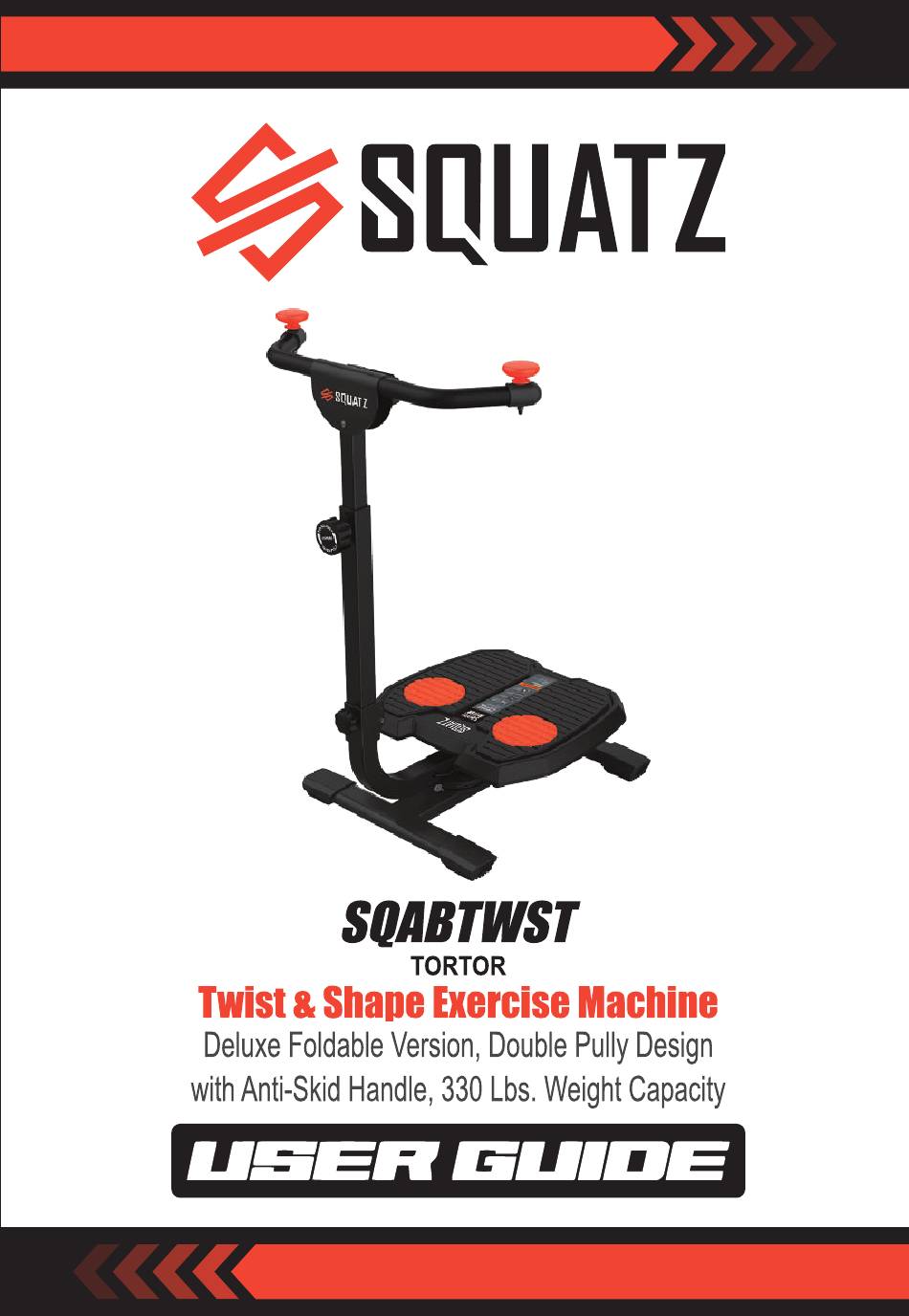

Page 2: Product Introduction

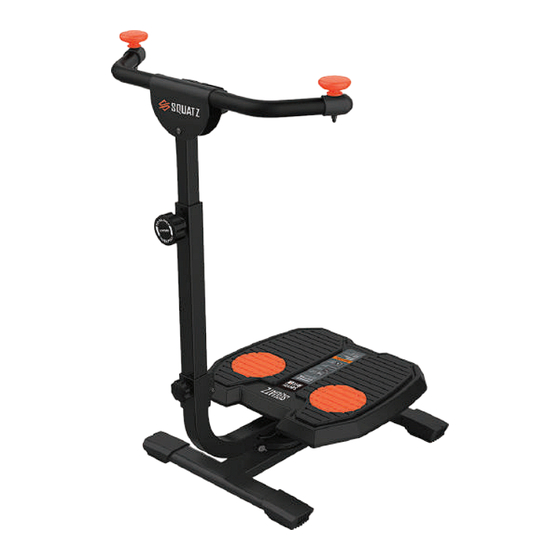

Read this user manual carefully before you use the Exercise Machine and save it for future reference. The utility model provides a waist twisting machine. The SQUATZ Twist & Shape Exercise Machine includes an armrest, a vertical pole, a pedal, a pedal seat, a drawstring, a turntable, and a base bracket. -
Page 3: Product Diagram
PRODUCT DIAGRAM 1. Pole 14. turntable accommodating cavity 2. Base bracket 15. center through hole 3. Pedal seat 16. ball groove 4. Handrail 17. annular bearing 5. Pulley I 6. Pulley II 18. turntable 7. Pedal 8. Brake device www.squatz.com... - Page 4 The rotating shaft penetrates through the central through hole of the rotating disk accommodating cavity and is screwed and xed on the rotating shaft bolt hole by bolts, so that the rotating disk can freely rotate in the rotating disk accommodating cavity of the pedal. www.squatz.com...
- Page 5 Since there is no load device, it cannot be achieved if the user needs to increase the exercise intensity, and if the user does not want to make the lower body and upper body Reverse movement, just a slight twist of the lower body to relax the waist is also impossible. www.squatz.com...
- Page 6 The above-mentioned design structure is more reasonable, and the service life is longer. www.squatz.com...
- Page 7 In the accommodating cavity 14, a central through hole 15 is opened at the center of the bottom of the turntable accommodating cavity 14. A ring of ball grooves 16 is also provided on the bottom surface of the turntable accommodating cavity 14. www.squatz.com...
- Page 8 Any modi cation, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention. www.squatz.com...
- Page 9 Battery Operated Digital Control Unit, Requires (2) x ‘AA’ Batteries • *Some Assembly Required • Adjustable Height: 31.5"-44.88” -inches • Assembled Dimensions (L x W x H): 26.57" x 23.62" x 31.5” -inches • Disassembled Dimension: (L x W x H): 26.57" x 23.62" x 12.01” -inches www.squatz.com...
