Refrigerator Light (Top) - LG UPFXC2466 Series Service Manual

3-7 Refrigerator Light (Top)

Unplug Refrigerator, or disconnect power at the circuit
breaker.
If necessary, remove top shelf or shelves.

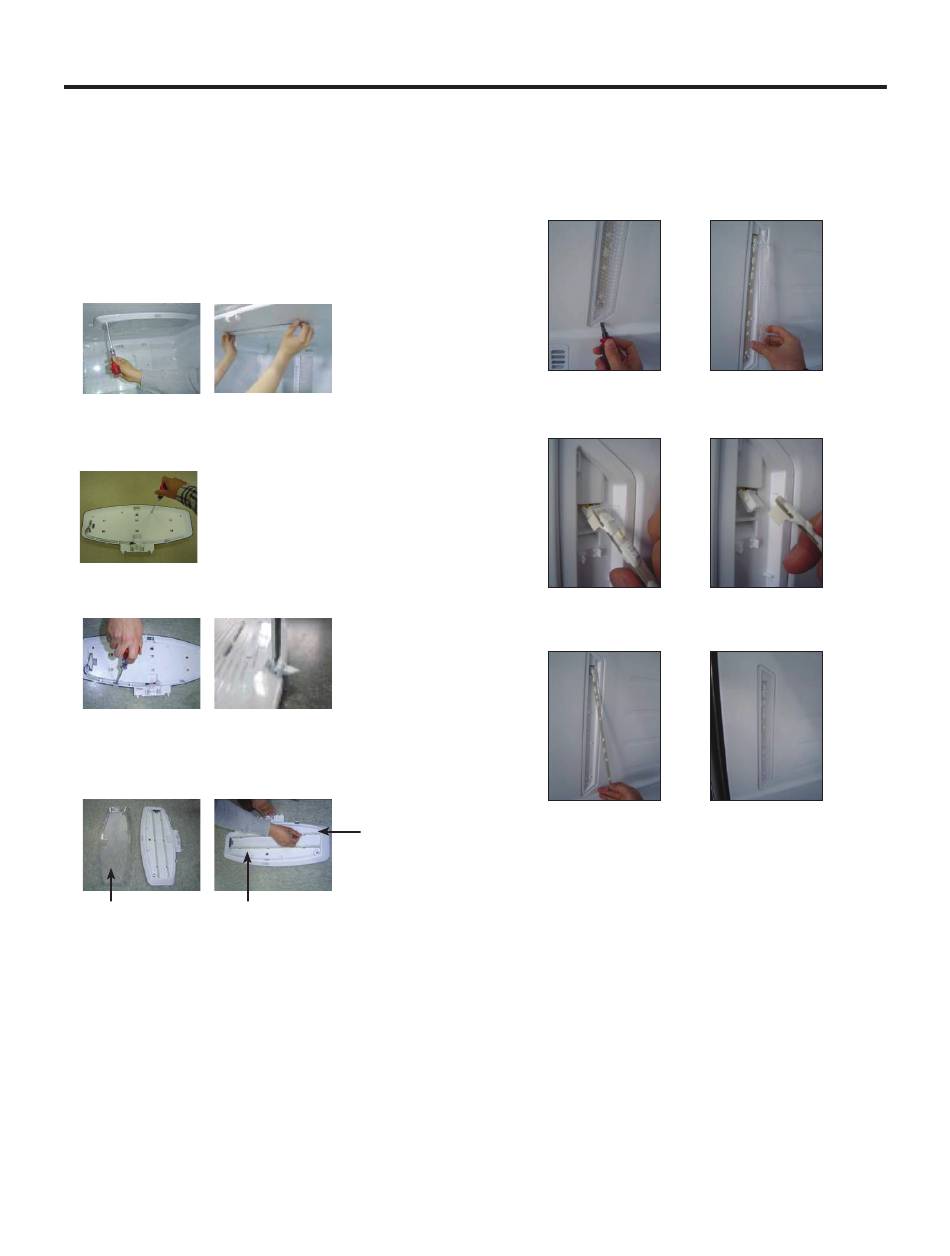

3-7-1 Refrigerator Compartment Lamp
1) Release 2 screws.
2) Hold both ends with your both hands and pull it
downward to remove it.
3) To remove the case lamp and cover lamp, release
another 2 screws as following picture.
4) Use a flat blade screwdriver as shown below to remove
the cover lamp.
5) To remove the LED Assembly, open the Hook part to pull
it out as shown in the following picture.
Cover, lamp LED, Assembly
3-7-2 Refrigerator Light (Side)
1. Unplug refrigerator power cord from electric outlet.
2. Put flat screwdriver into sevice hole and remove cover of
refrigerator light.
3. Remove the LED assembly from connector.
4. Replace LED assembly.
Case, lamp
5. Assemble the cover in reverse order.
- 9 -
