- Page 1 Uno plus Uno XL Quattre Quattre plus Quattro XL www.pridecaraudio.com...
-
Page 2: Before You Begin Installation
Before you begin installation Before you begin, you will need tools, supplies and adapters. It is best to make sure you have everything you need before you start. Amplifier Location Allow air circulation around the amplifier. When selecting a location, remember that amplifiers generate heat. Select a location where air can circulate around the amplifier. - Page 3 12 AWG or larger speaker wire is recommended. 8. Mount remote level control in the car where it can be easily reached from the driver’s seat, if desired. 9. Using RCA interconnect cables, connect all line inputs per the wiring diagrams which follow. If possible, keep RCA cables away from the 12 V power and ground wire.

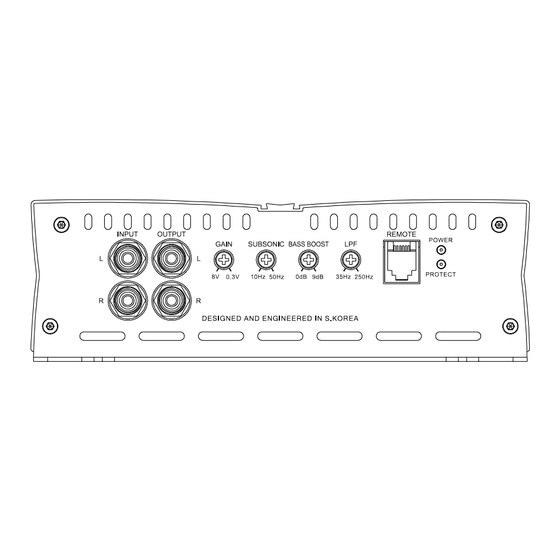

- Page 4 , UNO PLUS & UNO XL Digital Monoblock Input & Output Connection RC A INPU TS - BASS BO O ST - The RCA inputs ensure the highest quality contacts and This allows you to tune amplifier response with up to 9 dB the lowest noise in your audio system.
- Page 5 , UNO PLUS & UNO XL Digital Monoblock Power Connection Fuse rates : 40 A Uno plus : 30 A x 2 Uno xl : 30 A x 4 : 30 A Quattro : 30 A x 2 Quattro plus : 40 A x 2 Quattro xl : 40 A x 3...
- Page 6 D U E 2 C hannel Input & O utput C on nec tion RC A INPU TS - X-OVER ( MULTIPLY, BANDPASS ) - The RCA inputs ensure the highest quality contacts and Controls and switches select mode and frequency. Multiply selector (x1, x10) multiplies crossover frequency the lowest noise in your audio system.
- Page 7 D U E 2 C hannel Speaker O utput C on nec tion D U E 2 C HANNEL WIRING MOD E Important : Working impedance minimum working impedance is 2 ohm stereo or 4 ohm mono SUBWOOFER MODE 8 - 4 OHMS...
- Page 8 Q UATTRO , Q UATTRO PLU S & QUATTRO XL 4 C hannel Input & O utput C on nec tion RC A INPU TS - X-OVER ( MULTIPLY, BANDPASS ) - The RCA inputs ensure the highest quality contacts and Controls and switches select mode and frequency.
- Page 9 Q UATTRO , Q UATTRO PLU S & QUATTRO XL 4 C hannel Speaker O utput C onn ec tion Q UATTRO , Q UATTRO PLU S & QUATTRO XL 4 C HANNEL WIRING MOD E Important : Working impedance Quattro minimum working impedance is 2 ohm stereo or 4 ohm mono...
-
Page 10: Troubleshooting
Trouble shooting NO PO WER LED O N, NO O U TPU T • Check +12 V and GND connection • Check remote signal +12 V • Check the external fuses or built-in. PO WER LED O N, NO O U TPU T •... - Page 11 Features UNO PLUS UNO XL QUATTRO QUATTRO PLUS QUATTRO XL 4ohm Power 160W x 1 350W x 1 500W x 1 75W x 2 75W x 4 100W x 4 175W x 4 2ohm Power 280W x 1 550W x 1 900W x 1 100W x 2 100W x 4...
-
Page 12: Declaration Of Conformity
D eclaration of conformity This products meets the requirements of the following directives and standards: Directives: 2014/30/EU (EMC) 2011/65/EU (RoHS) Standards: EN 55024: 2010 EN 55032: 2012 / AC: 2013 The products are certified: EU-Type Examination Certificate No. 3-152-177/2017 This product carries the CE Mark, which was first applied in 2017. The full version of the declaration of conformity can be obtained by contacting the office of the manufacturer or its distributor.
