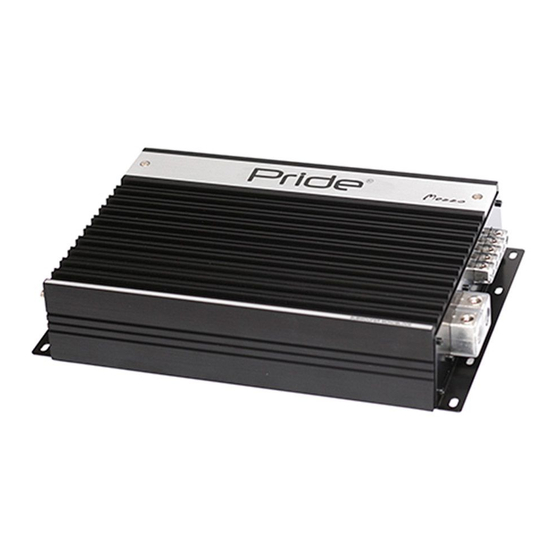

- Page 1 MILLE MEZZO RAPID AURORA APOLLO pridecaraudio.com...
- Page 2 MILLE (ЗОАхЗ АТС). MEZZO, RAPID, AURORA & APOLLO are not equipped with the fuse. Fuse ratings are 90A for MILLE, 120A for MEZZO, 150A for RAPID, 250A for AURORA and 450A for APOLLO single unit. These fuse ratings should be sufficient under normal working conditions.
- Page 3 This turns on the amplifier whenever MILLE has built-in Fuses (30 A x 3 ) the source unit is turned on. MEZZO : 120 A (240 A for Link)
- Page 4 Digital Monoblock Input & Output Connection RCA INPUTS LOW PASS CROSSOVER FRE- QUENCY CONTROL The RCA inputs ensure the highest qual- ity contacts and the lowest noise in your au- This allows you to tune the response of dio system. the amplifier at higher bass frequencies to roll off for a seamless integration into your RCA OUTPUTS...
- Page 5 REM connector will accept wire sizes from 12 to 18 AWG. This terminal is used to re- motely turn-on and turn-off the amplifier when +12V DC is applied. Digital Monoblock Power Connection Ground Fuse rates MILLE: 90A (180A for strapped) Mezzo: 120A (240A for strapped) Fuses Rapid: 150A (300A for strapped) Aurora: 250A (500A for strapped)
- Page 6 MASTER / SLAVE Strapped Input Connection INPUT CONNECTION STEPS ; Step 1. Set master / slave swtich to MASTER on master amplifier. Step 2. Set master / slave swtich to SLAVE on slave amplifier. Step 3. Conned RCA JACK on master amp to RCA JACK on slave amp.
- Page 7 MASTER / SLAVE Strapped Output Connection SPEAKER OUTPUT CONNECTION STEPS ; Step 1. Connect speaker cable (+) on master amplifier to subwoofer (+) Step 2. Conned speaker cable (+) on slave amplifier to subwoofer (-) Step 3. Connect speaker cable (-) on master amplifier to speaker cable (-) on slave amplifier...
- Page 8 IN MASTER / UNK CONNECTION MODE The Entire Pre-amp section of the LINK amps is bypassed and feed directly from the MASTER amplifier's Pre-amp with Master / Link cable - which in terms gives you exact and perfect gain control and crossover matching across all amplifiers. The phase of all LINK amplifiers is not reversed, so all subwoofers will be in phase and each amplifier will be in- dependent in function other than signal.
-
Page 9: Troubleshooting
Amplifier goes in protection mode at higher gain • Check speaker impedance ( MILLE, MEZZO, RAPID, AURORA & APOLLO ) is lohm for single unit and 2ohm for link connection. • Check working voltages ( 8,5Volts - 1 6Volts ) •... - Page 10 Features All features are subject to change in the continuing efforts to improve the products without notice.
-
Page 11: Declaration Of Conformity
Declaration of conformity This products meets the requirements of the following directives and standards: Directives: 2014/30/EU (EMC) 2011/65/EU (RoHS) Standards: EN 55024: 2010 EN 55032: 2012/AC: 2013 The products are certified: EU-Туре Examination Certificate No. 3-152-177/2017 Signature: Lilia Safina, Manager This product carries the CE Mark, which was first applied in 2017.
