Diagrams; Block Diagram - Main Section - Sony STR-KS2000 - Blu-ray Dvd Receiver Component Service Manual

STR-KS2000
SECTION 6

DIAGRAMS

6-1.
DIGITAL
J1710
ANTENNA
CLINK_RX (UCOM_TX)
CLINK_TX (UCOM_RX)
STR-KS2000

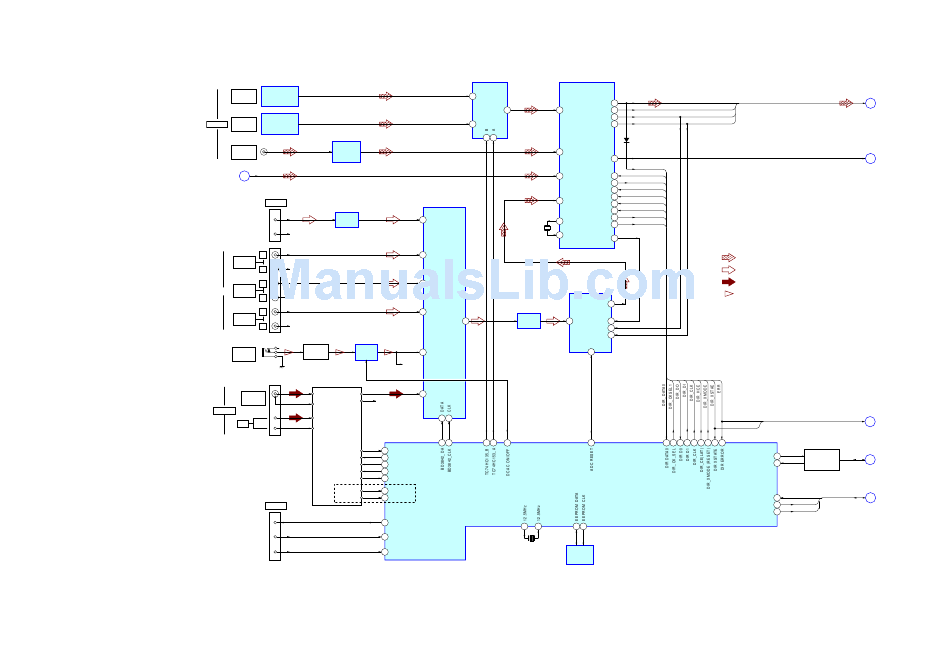

BLOCK DIAGRAM - MAIN Section -

DIGITAL OPTICAL
OPT IN
RECEIVER
SAT
IC1700
DIGITAL OPTICAL
OPT IN
RECEIVER
VIDEO 1
IC1701
J1700
SCHMITT
COAX IN
TRIGGER
DVD
IC1711
SPDIF
J
(Page 11)
CN1700 (1/2)
DMPORT
13
BUFFER
C_LINK_L
IC1603
14
C_LINK_R R-CH
L
VIDEO 1
AUDIO IN
R R-CH
L
TV
AUDIO IN
R R-CH
L
SA-CD/CD
AUDIO IN
R R-CH
J2500
MIC AMP
LINE AMP
AUTO
IC2501
Q2500
CAL MIC
R-CH
TUNER (FM/AM)
L CH
FM ANT
FM 75Ω
R CH
COAXIAL R-CH
GND
AM ANT
AM
GND
DO 27 TUN_DO
DI 72 TUNER DATA
CLOCK 69 TUNER CLK
CE 26 TUN_LAT
SD 117 TUNE SD
86
RDS DATA RDS DATA
CN1700 (2/2)
RDS INT 84 RDS CLK
DMPORT
(AEP, UK)
5
100 CLINK_RX (M-OUT-CLINK-IN)
6
99 CLINK_TX (M-IN-CLINK-OUT)
7
C_LINK_DEC 101 C_LINK_DET
DIGITAL AUDIO
DATA SELECTOR INTERFACE RECEIVER
IC1302 IC1301
5 2CI
DATAO 16
1Y 7 3 DIN0 CKOUT 13
6 1CO LRCK 15
2 14
DIN1
4
AUDIO 24
CKSEL 0 46
5 DIN2
ANALOG AUDIO
INPUT SELECTOR
8 SDIN
IC1710
XMODE 48
XSTATE
9 CLINK L
21 XOUT
ERROR 34
X1301
12.288MHz
22 XIN
XMCK 20
7 VIDEO1 L
1 TV L
A/D CONVERTER
IC1602
DOUT
3 SACD L
BUFFER
OUT L 14 1 LIN SCKI
IC1600
BCK 11
LRCK 10
PDWN_BAR
11 DCAC_MIC_L 7
TUNER L
5
22 23
11 10 35 36 3 73
57 58 98 78
X1300
12.5MHz
EEPROM
IC1131
10 10
BCK 14
D1301
DIR_DATA0
DIR_CKSEL1
DIR_DO
DO 35
DIR_DI
DI 36
DIR_CLK
CLK 38
DIR_HCE
CE 37
DIR_XMODE
DIR_XSTAE
17
ERR
• R-ch is omitted due to same as L-ch.
• SIGNAL PATH
: AUDIO (DIGITAL)
: AUDIO (ANALOG)
: TUNER
: MIC
12
15
63 39 48 47 45 46 38 37 49
CEC OUT 29
CEC IN 88
SYSTEM CONTROLLER
IC1018 (1/4)
HDMI (M-IN-HDMI-OUT) 92
HDMI (M-OUT-HDMI-IN) 93
HDMI RESET 104
DATA0, BCK
LRCK, CKOUT
A
(Page 12)
AUDIO
B
(Page 12)
DIR_XSTAE, ERR
C
(Page 12)
CEC DATA CEC
D
SWITCH
Q1103-1106
(Page 11)
RESET, TX, RX
E
(Page 11)
