BELL SYSTEM PRACTICES
AT&TCo Standard
SECTION 578-300-100
Issue 4, June 1974
"DATASPEED® "MAGNETIC TAPE SET
GENERAL DESCRIPTION
CONTENTS
1. GENERAL .
2. DESCRIPTION
PHYSICAL AND ELECTRICAL
CHARACTERISTICS
COMPONENTS ..
A. Control Panel
B. Tape Transport
C. Electronics Module
D. Cabinet ..... .
3. STATION ARRANGEMENTS
CAP ABILITIES . . . . .
TYPES OF OPERATION
A. Attended
B. Unattended
4. INTERFACE INFORMATION
DATASET INTERFACE
LOCAL 33 OR 35
TELETYPEWRITER INTERFACE
LOCAL37TELETYPEWRITER
EIA INTERFACE FOR OFF-LINE
OPERATION .......... .
LOCAL 37 KSR FOR
ASR OPERATION
TELETYPEWRITER INTERFACE .
PARALLEL DEVICE INTERFACE
CDT INTERFACE . . . . .
"DATASPEED" 40 SERIAL
EIA INTERFACE
CUSTOMER PROVIDED EQUIPMENT
INTERFACE ............. .
PAGE
1
2
3
3
3
7
8
8
9
9
11
11
11
16
16
16
21
21
23
27
29
7
1. GENERAL
1.01 This section provides a general description of the
4200 Series Dataspeed Magnetic Tape Sets. It is_
reissued to include information on DATASPEED 40 serial
I
EIA interface, and information presented in TCN 1826.
Changes and additions are indicated by marginal arrows.
However, arrows are omitted from 4.45 through 4.54 all of
I
which are added in this issue.
--J
TAPE TRANSPORT COVER
DATASET ~
COMPARTMENT
ELECTRONICS
CONTROL PANEL
MODULE
~
---------------
COMPARTMENT ,..-- .,-

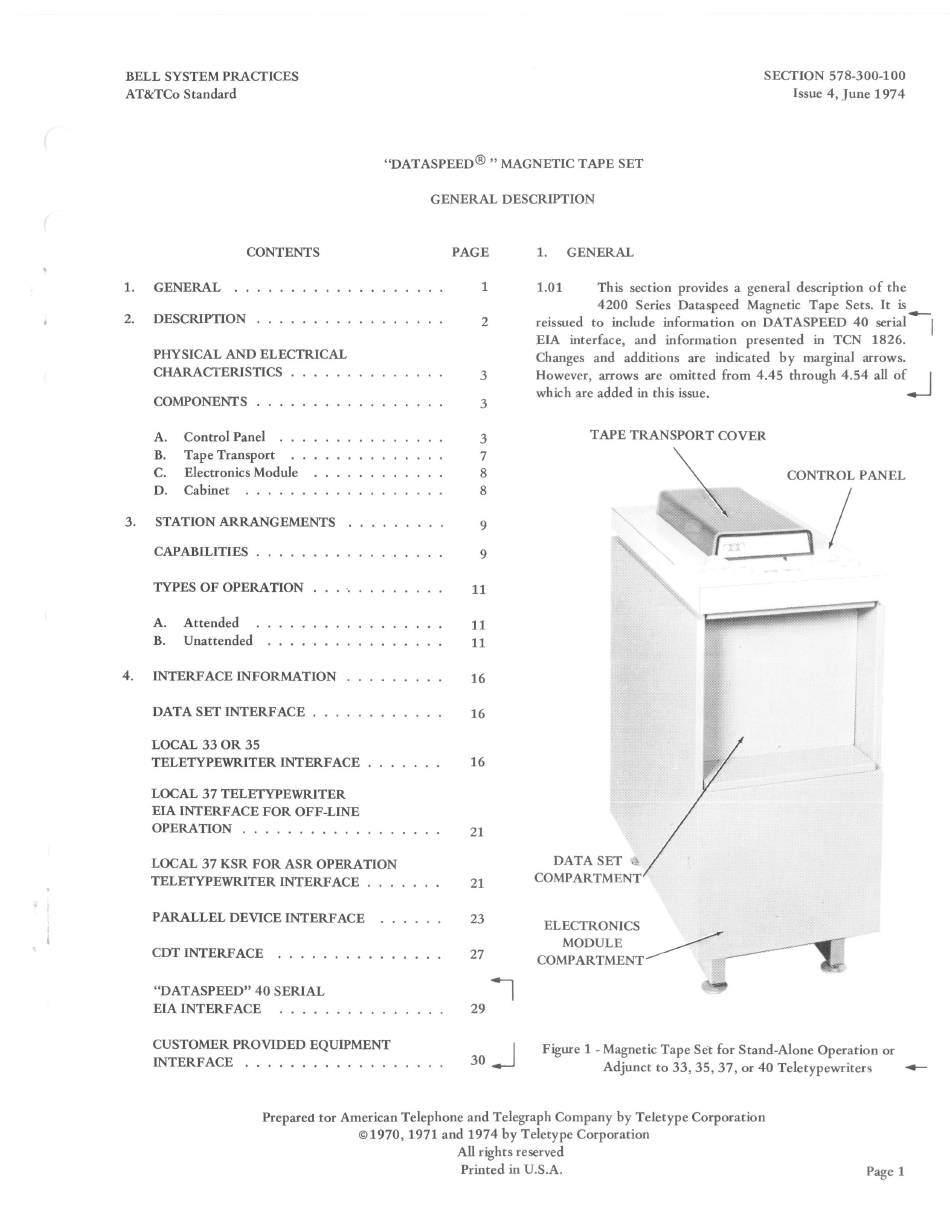

Figure 1 - Magnetic Tape Set for Stand-Alone Operation or
Adjunct to 33, 35, 37, or 40 Teletypewriters -
