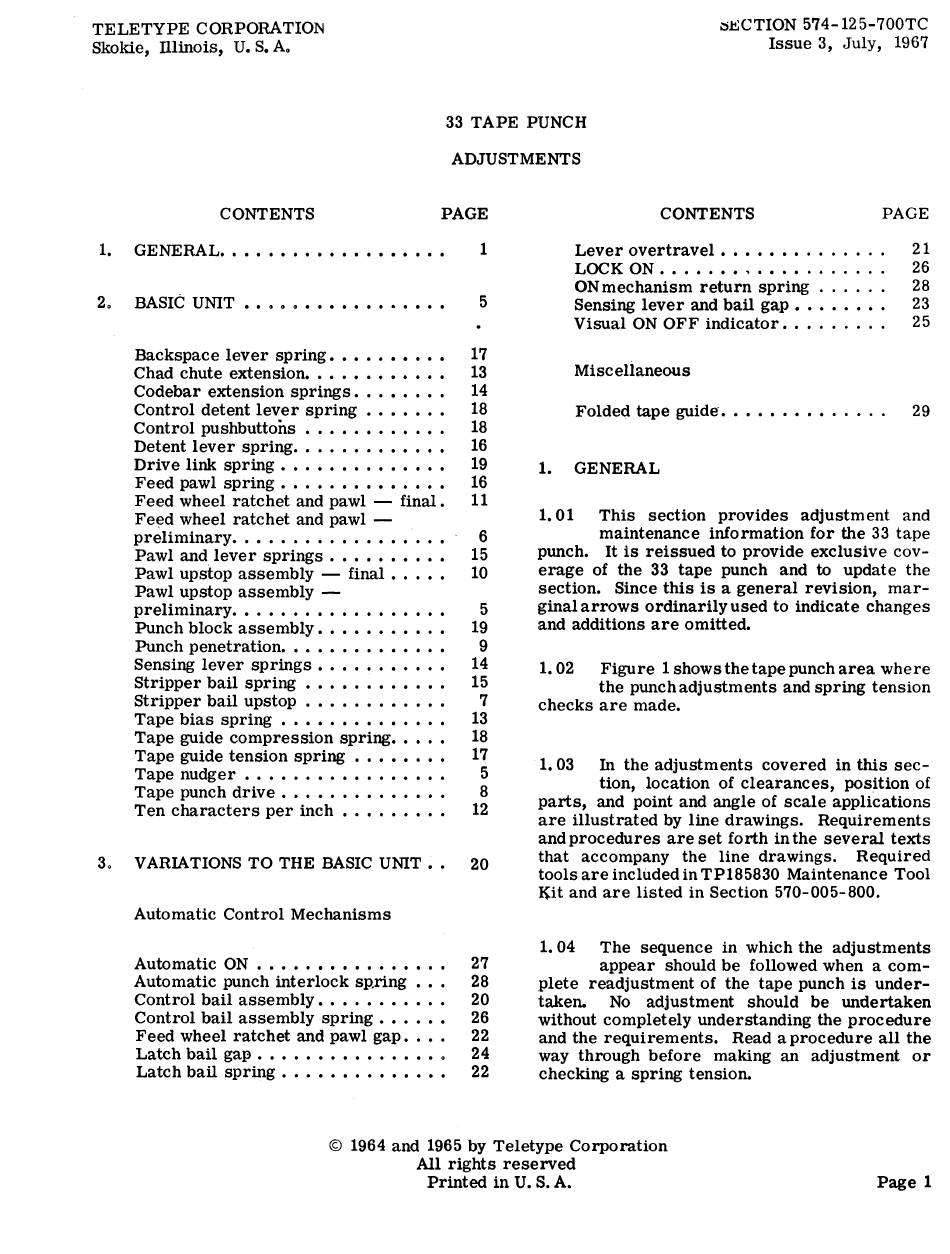

TELETYPE
CORPORATION
Skokie, Illinois,
U.S. Ao
~t:CTION 574-12 5-700TC
Issue 3, July,
1967
33 TAPE PUNCH
ADJUSTMENTS
CONTENTS
PAGE
1.
GENERAL . .................
.
1
2.
BASIC UNIT • • • • • • • • • • • • . • • • •
5
Backspace
lever spring.
• • • • • • • • •
17
Chad chute extension.
. . . • • • • • • • •
13
Codebar extension springs.
• . • • . • •
14
Control detent lever spring
• • • • • • •
18
Control pushbuttons
. . . • . • . . • . • .
18
Detent lever spring. . . . . . . . • • . • •
16
Drive link spring . • . • • . • . • . • • • •
19
Feed pawl spring . . . • . • • • • • • . • •
16
Feed wheel ratchet and pawl -
final .
11
Fe~d wheel ratchet and pawl -
preliminary.
. . . . . • . . • . • • • • . • •
6
Pawl and lever springs . • • • • . • . • •
15
Pawl upstop assembly
-
final • • . • •
10
Pawl upstop assembly
-
preliminary.
• . • . . . . • • . . . . • • • •
5
Punch block assembly • • • • • • • • • . •
19
Punch penetration.
• . . . . . . • • • • • •
9
Sensing lever springs • • • • . . • • . . •
14
Stripper bail spring
. • • • . • • . • . • .
15
Stripper bail upstop . . . . . . . . . . . •
7
Tape bias spring
. . • • • • • • • • • • • .
13
Tape guide compression
spring. • • • •
18
Tape guide tension spring
• • • • • . • •
17
Tape nudger . . . . . . . . • • . . . • . . .
5
Tape punch drive . . . . . . . . . . . . • .
8
Ten characters
per inch • • • . . • • . .
12
3.
VARIATIONS TO THE BASIC UNIT. •
20
Automatic Control Mechanisms
Automatic ON . • . . • • • • • • • . • • . .
27
Automatic punch interlock
sp,ring • • .
28
Control bail assembly • • • . • . . . . . .
20
Control bail assembly
spring . • . . • •
26
Feed wheel ratchet and pawl gap. . • .
22
Latch bail gap . . • . . . . • • . . . . • . •
24
Latch bail spring . . . • • • • • • • • • • •
22
CONTENTS
PAGE
Lever overtravel
• • • • • • • . . . . . . .
21
LOCK ON . . . . . . . , . . . . . . . . . . .
26
ONmechanism
return
spring
. . . . . .
28
Sensing lever and bail gap • • • • . • • .
23
Visual ON OFF indicator.
. . . . . . . .
2 5
Miscelianeous
Folded tape guide. • . • • . • • • . . . . .
29
1.
GENERAL
1. 01
This
section
provides
adjustment
and
maintenance
information
for the
33
tape
punch.
It is reissued
to provide exclusive
cov-
erage of the 33 tape punch and to update the
section.
Since this is a general revision,
mar-
ginal arrows
ordinarily used to indicate changes
and additions are omitted.
1. 02
Figure 1 shows the tape punch area where
the punch adjustments
and spring tension
checks are made.
1. 03
In the adjustments
covered
in this sec-
tion, location
of clearances,
position of
parts,
and point and angle of scale applications
are illustrated
by line drawings.
Requirements
and procedures
are set forth in the several
texts
that accompany
the line drawings.
Required
tools are included in TP185830 Maintenance
Tool
~it and are listed in Section 570-005-800.
1. 04
The sequence
in which the adjustments
appear
should be followed when a com-
plete readjustment
of the tape punch is under-
taken.
No adjustment
should be undertaken
without completely
understanding
the procedure
and the requirements.
Read a procedure
all the
way through before
making an adjustment
or
checking a spring tension.
©
1964 and 1965 by Teletype Corporation
All rights reserved
Printed in U. S. A.
Page 1
