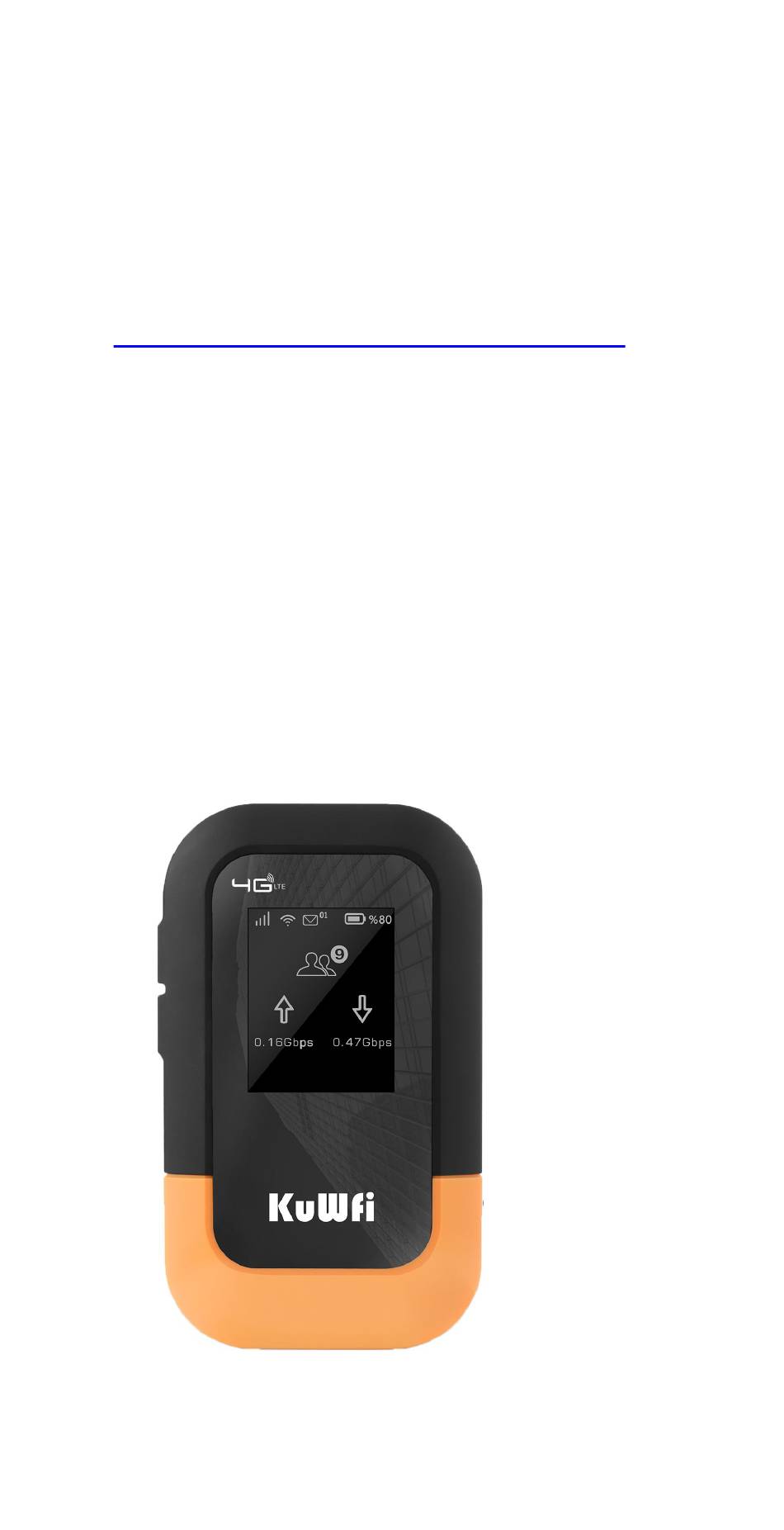

- Page 1 M47 User Manual KuWFi 4G Mobile Hotspot Router support@kuwfi.com...
-
Page 2: Getting Started
Getting Started Thank you for choosing M47, it will provide you a high-speed 4G and WiFi 6 experience. This guide briefly describes the appearance, using procedures and how to set the management parameters of M47. Getting To Know Your Device... -
Page 3: How To Use
SIM card slot (NANO) TFlash Card Slot How to use 1. Insert SIM card (Nano) and turn on the device. It will connect to the network automatically. Press Power key for 6s to turn on device, LCD will display “MiFi is starting up”... - Page 4 2. Connect M47 via Wi-Fi or USB. A. Wi-Fi connection: ① Select the Wi-Fi network (SSID) of...
- Page 5 this device. The default SSID is displayed on the LCD menu “ SSID/Password ” , or you can find it on gift box and device label. ② Input the Wi-Fi password. The default password you can see from the LCD SSID/Password menu, and also printed on the gift box and device label.
- Page 6 B. USB connection: ① Connect the device to a PC by USB cable. ② The PC can connect to the mobile network without having to install any drivers.
- Page 7 C. Connect to Wi-Fi via WPS: If your device supports WPS(Wi-Fi Protected Setup), it can be connected to M47 without having to use the password. Press the WPS button on this device to activate the WPS function for 2 minutes.
- Page 8 A.Check Basic Status B.Modify SSID and Password C.Select Network Mode...
- Page 9 D.Create New APN E.Enable PIN...
-
Page 10: Device Management
F.WPS Function Device management This device can be managed with signing in the WebUI(192.168.8.1), where settings can be configured to your preference. The default password is “admin” that are printed on the device’s label. -
Page 11: How To Charge
①There is no power adapter included with M47 default packaging, please purchase one separately. ②Please use a suitable power adapter(5V/1A) to charge M47. ③Please ensure that M47 is charged in an environment within the temperature range of 0 to 40℃.--... -
Page 12: Restore Factory Setting
1. Turn on M47, open rear cover and press the Reset button once, to restore factory settings. 2. Turn on M47 and connect to it, then sign into the WebUI(192.168.8.1), and go to Admin Settings > Factory Default Settings. - Page 13 1. What should I do if M47 doesn’t turn on? Please ensure battery is not exhausted, charge M47 and try again. Please make sure to charge M47 at 0℃~40℃. 2. What should I do if the Internet cannot be accessed? ①...
- Page 14 Press the Reset button to restore the device’s factory settings. The default SSID and password are printed on the device’s label. 5. What should I do if M47 doesn’t charge? Check whether the power adapter and USB cable function properly. It is...
Need help?
Do you have a question about the M47 and is the answer not in the manual?
Questions and answers
كيف ادخل الى صفحة اعدادات المودم وانا بجهاز كمبيوتر هل هناك رابط
You can access the settings page of the KuWFi M47 modem from a computer through its Web UI. Connect the modem to the computer using a USB cable. The device will automatically identify the operating system and use RNDIS/ECM to share the network. Once connected, open a web browser and enter the modem's IP address to access the Web UI.
This answer is automatically generated

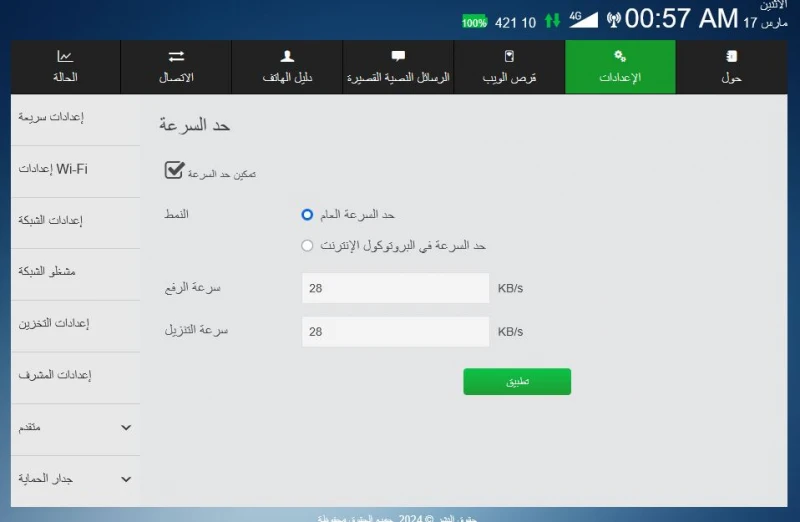

how to lemet internet fast
To set up fast internet on the KuWFi M47:
1. Insert SIM Card: Insert a Nano SIM card and turn on the device by pressing the power key for 6 seconds. It will connect to the network automatically.
2. Connect to the Device:
- Via Wi-Fi: Select the device’s SSID (shown on the LCD menu, gift box, or device label) and enter the default password.
- Via USB: Connect the device to a PC using a USB cable for an automatic connection.
- Via WPS: If supported, press the WPS button to connect without a password.
3. Manage Settings: Access the WebUI at 192.168.8.1, log in with the default password ("admin"), and configure settings like SSID, password, network mode, and APN for optimal performance.
4. Charging: Use a 5V/1A power adapter, a PC USB port, or a power bank to ensure uninterrupted operation.
This setup ensures a high-speed 4G and WiFi 6 experience.
This answer is automatically generated
