MESTAR MS8SCO5090-30W Installation Manual

CONE - LED POST TOP LIGHT

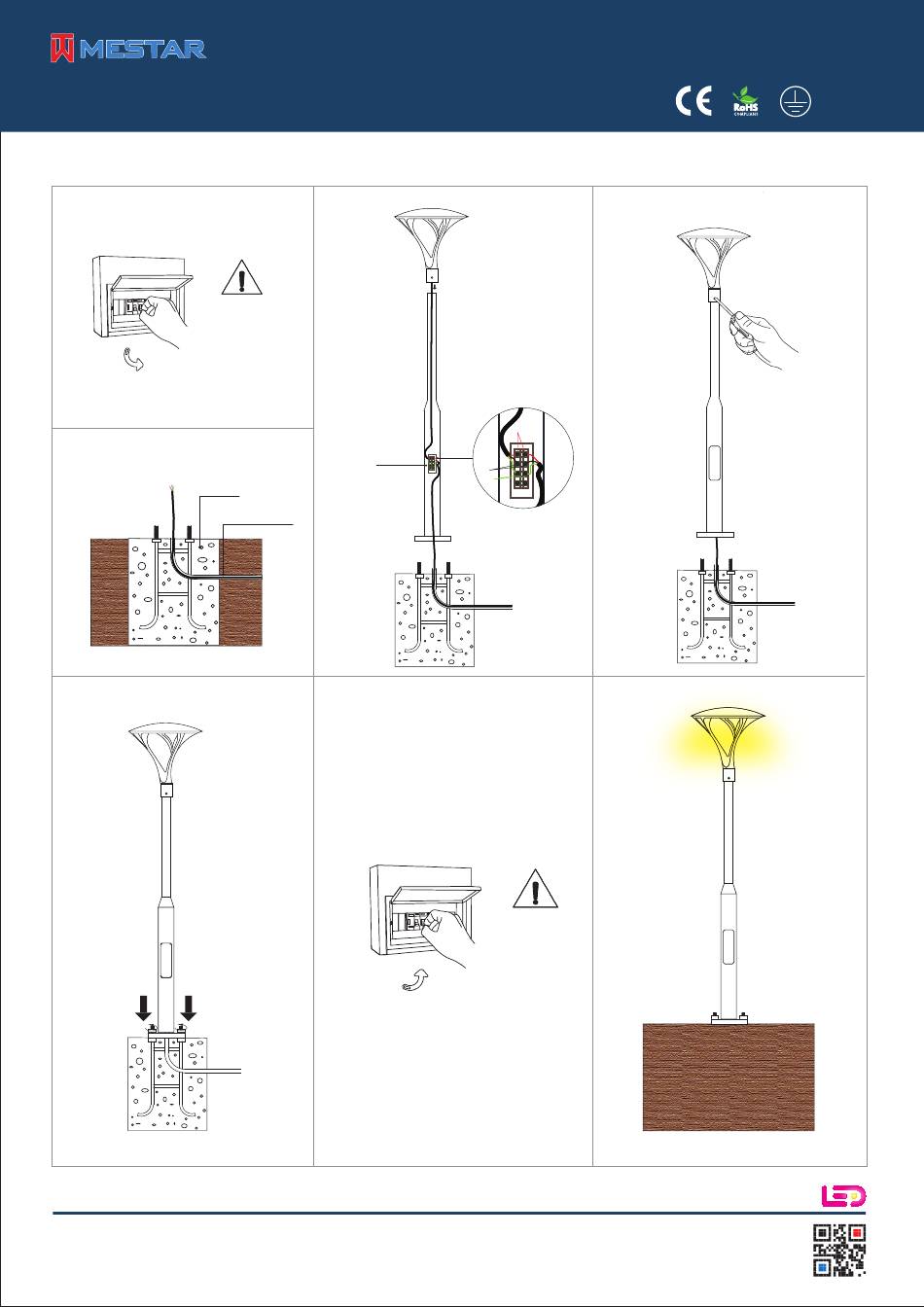

A. INSTALLATION
1. Turn off the power.
POWER
On
Off
2. Fix landing base by concrete and Leave cable from
install surface.
N
L E
Concrete
Electrical conduit
5. Fix pole with landing base by nut.
We reserve the right to make technical and design changes.
THIEN MINH MECHANICAL - ELECTRIC JSC
Head office: MESTAR Building, No. 98/11 Ung Van Khiem Street, Ward 25, Binh Thanh District, Ho Chi Minh City, Vietnam
Tel: (84) 28.3899 4790 - Email: mestar@mestar.vn - Web: www.mestar.vn
3. Connect cable at terminal in pole.
Terminal
N
E
6. Turn on the power.
POWER
On
Off
INSTALLATION MANUAL
4. Fix luminaires with pole by screws.
L
7. Completed install.
IP65
