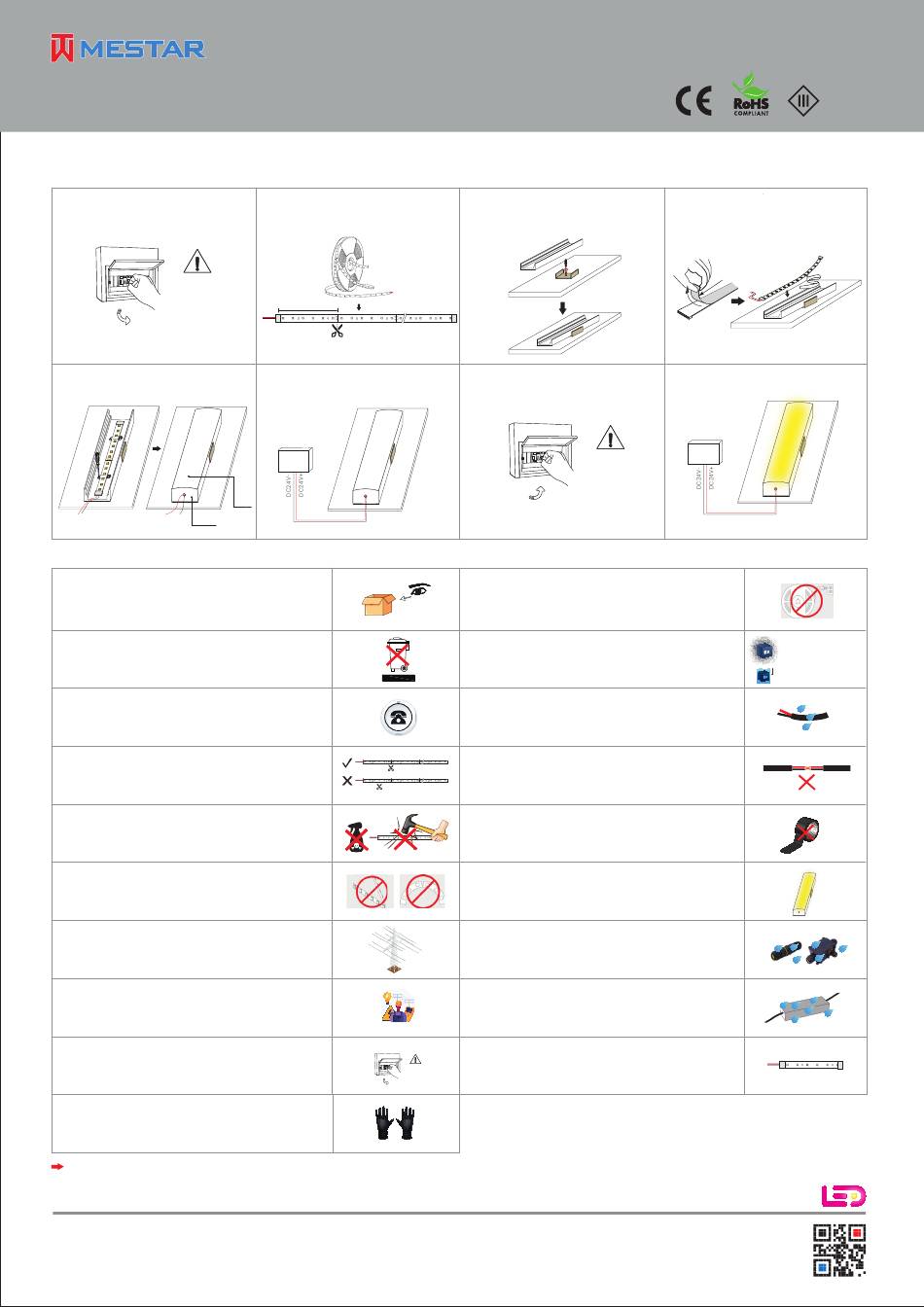

MESTAR FLEXA 3 Installation Manual

LED STRIP LIGHT

A. INSTALLATION

1. Turn off the power.
POWER
On
Off
5. Fix the strip by clip then fix cover and
end cap with aluminum profile.
End cap
*WARNING
1. Carefully unpack the carton. Check the contents to
ensure that all parts are present and have been
received in good condition.
2. If don't use, should be put in the right place to
avoid fire and explosion or causing environmental
pollution.
3. Contact the manufacturer if need help. Don't
install it if don't know the pieces of information.
4. Don't cut in the wrong position.
5. Don't physical impact or use of chemicals that
deform the luminaires and affect the surface.
6. Don't fold, break, twist and bend LED strip light in
the horizontal plane.
7. Install in accordance with national standards and
local electrical codes.
8. This products must be installed and maintained by
a qualified electrician.
9. Disconnect the power supply during installation.
10. Use insulated gloves during product installation.
Users must follow the safety instructions, specifications and warning notes written in this manual. If don't follow it, we will not be responsible for the warranty.
We reserve the right to make technical and design changes.
THIEN MINH MECHANICAL - ELECTRIC JSC
Head office: MESTAR Building, No. 98/11 Ung Van Khiem Street, Ward 25, Binh Thanh District, Ho Chi Minh City, Vietnam
Tel: (84) 28.3899 4790 - Email: mestar@mestar.vn - Web: www.mestar.vn
2. Cut the length to be installed at the
cutting position.
minimum cutting unit
6. Connect LED strip light with power.
Electrical
cabinet
Cover
。
POWER
On
Off
3. Fix aluminum profile with install
surface by mounting clip.
7. Turn on the power.
POWER
On
Off
11. Don't connect supply power when roll intact.
12. The product must be installed in environment ≤IP68.
13. All wires must be wrapped insulated and make sure
waterproof.
14. Do not let the poles of the wire touch each other.
15. Not use glue wrap electrical to wrap the cable.
16. Check luminaire is fixed and secure after installation.
17. Must use connector or junction box IP68 to connect
cable.
18. Make sure LED driver IP68 or if LED driver <IP68
must put into placed in waterproof electrical cabinet.
19. Sealed at the cut end by end cap and pour waterproof
glue .
