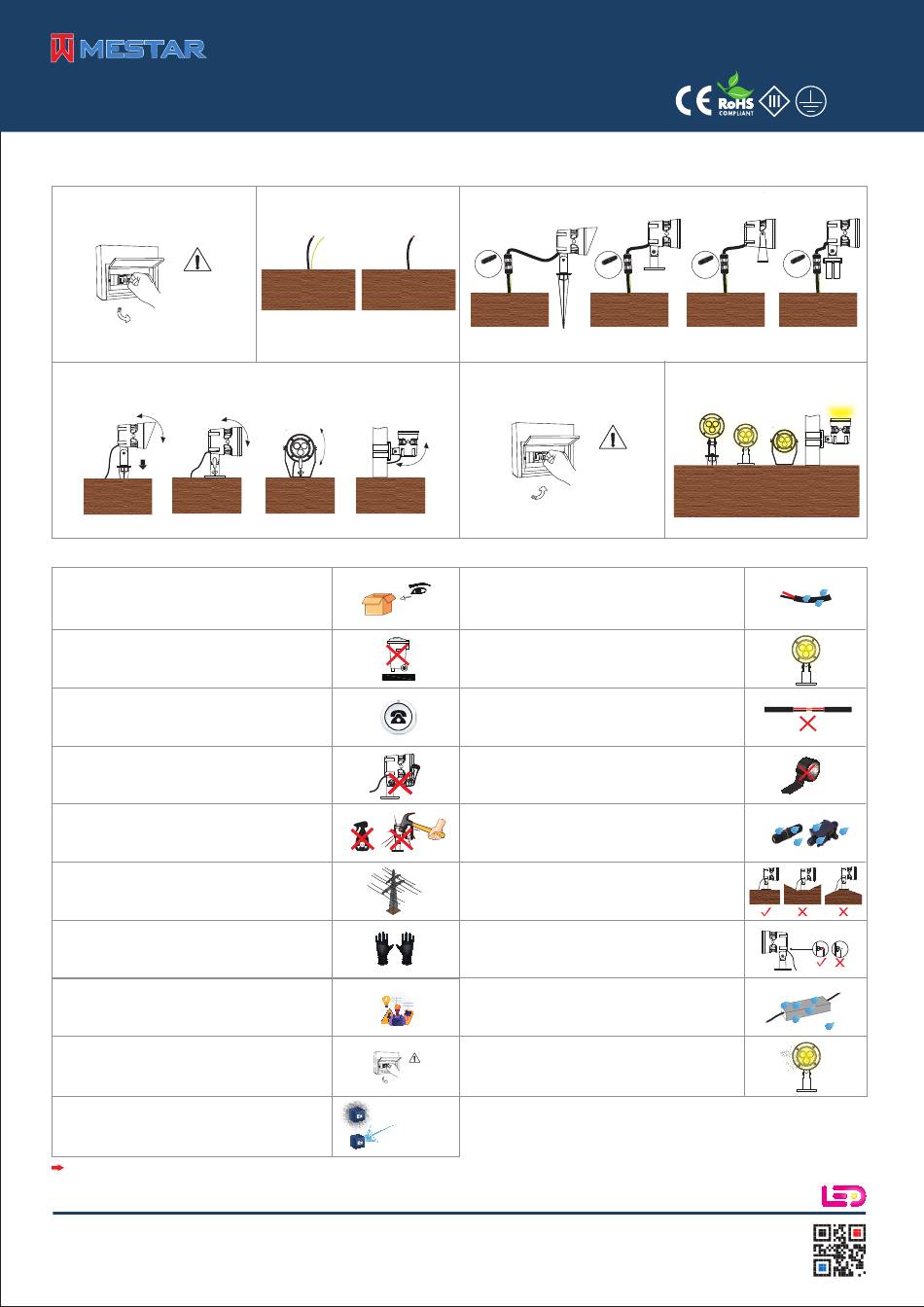

MESTAR Compact 1 Installation Manual

FLOODLIGHTS AND PROJECTORS
A. INSTALLATION
1. Turn off the power.
POWER
On
Off
4. Fix spike in-ground for type ground spike, fix luminaires with install surface by
screws for type flange base and type U bracket, fix luminaires with pole for type
pole trap, then adjust the projection direction of luminaires.
Type ground spike Type flange base
*WARNING
1. Carefully unpack the carton. Check the contents to
ensure that all parts are present and have been
received in good condition.
2. If don't use, should be put in the right place to
avoid fire and explosion or causing environmental
pollution.
3. Contact the manufacturer if need help. Don't
install it if don't know the pieces of information.
4. Don't disassemble or change luminaires, LED driver.
5. Don't physical impact or use of chemicals that
deform the luminaires and affect the surface paint.
6. Install in accordance with national standards and
local electrical codes.
7. Use insulated gloves during product installation.
8. This products must be installed and maintained by
a qualified electrician.
9. Disconnect the power supply during installation.
10. The product must be installed in environment ≤IP66.
Users must follow the safety instructions, specifications and warning notes written in this manual. If don't follow it, we will not be responsible for the warranty.
We reserve the right to make technical and design changes.
THIEN MINH MECHANICAL - ELECTRIC JSC
Head office: MESTAR Building, No. 98/11 Ung Van Khiem Street, Ward 25, Binh Thanh District, Ho Chi Minh City, Vietnam
Tel: (84) 28.3899 4790 - Email: mestar@mestar.vn - Web: www.mestar.vn
2. Leave cable from install surface.
L V+
N
E V-
AC voltage DC voltage
(LED driver in cabinet)
Type U bracket Type pole trap
。
POWER
On
Off
Dust tight. No ingress
of dust
Powerful water jets
against the enclosure
at any angle
3. Connect cable by connector IP68.
IP68
IP68
Type ground spike Type flange base
5. Turn on the power.
POWER
On
Off
11. All wires must be wrapped insulated rubber to ensure
safety and waterproof.
12. Check luminaire is fixed and secure after installation.
13. Do not let the poles of the wire touch each other.
14. Not use glue wrap electrical to wrap the cable.
15. Must use connector or junction box IP68 to connect
cable.
16. Make sure the installation surface is flat.
17. Minimum bend radius = Cable outside diameter x
Cable multiplier.
18. Make sure LED driver ≥IP66 or if LED driver ≤IP66
must put into placed in waterproof electrical cabinet.
19. Projects near sea should use optional luminaires
with high anti-corrosion and sea salt resistant paint.
INSTALLATION MANUAL
IP66
IP68
IP68
Type U bracket Type pole trap
6. Completed install.
