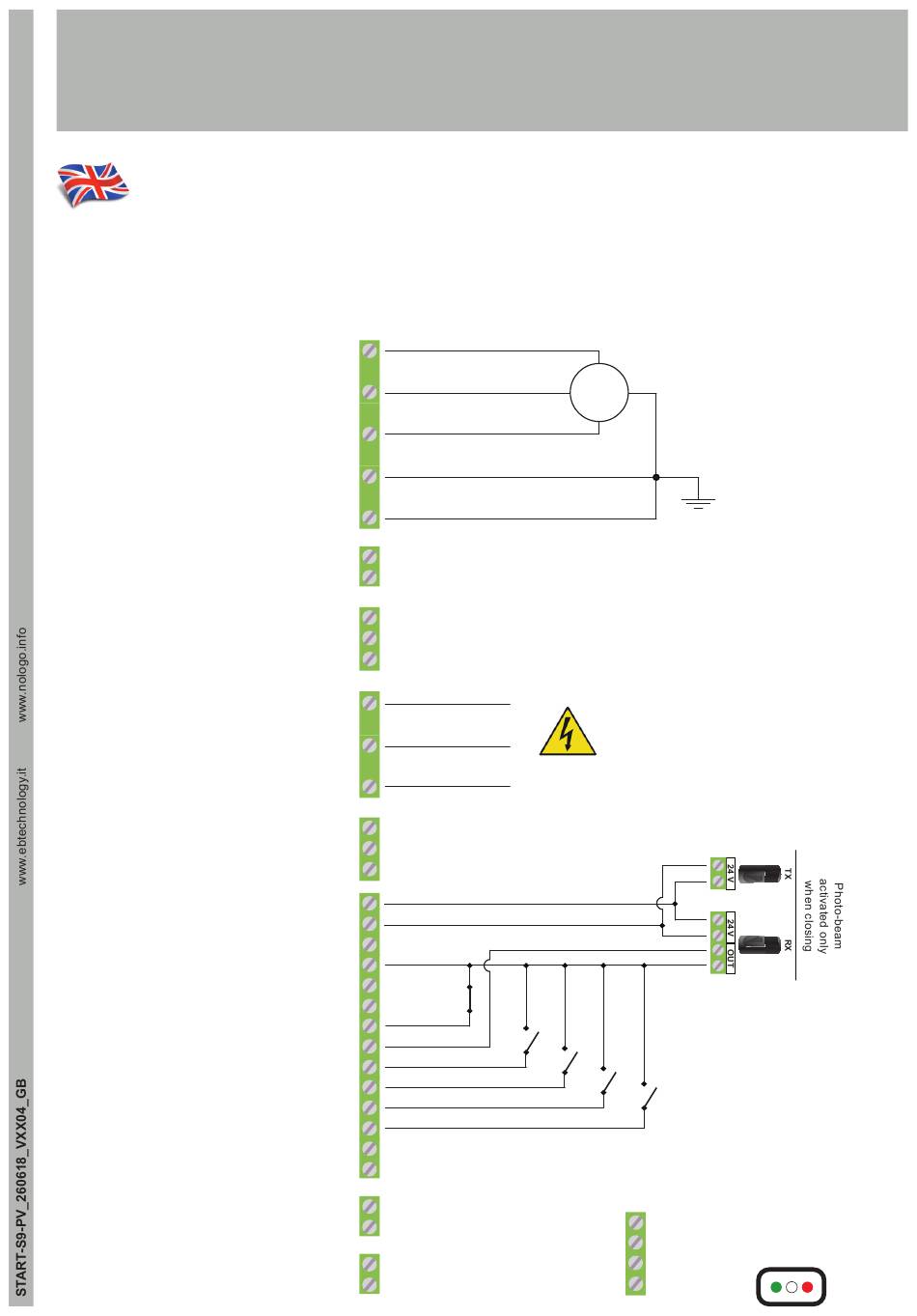

• Three-phase/Single-fase control panel for 1 motor 400/230 Vac motor 2Hp.
• Electronic obstacle detection, inside/outside brake, 4 functions mode, radio
decode supplied. Deactivation of the photo beams when the curtain gets down.
START-S9-PV
400 Vac Selection
230 Vac Selection
Selection of the power supply
230/400 Vac (R)
230/400 Vac (S)
230/400 Vac (T)
Outs. Brake (NC)
Outs. Brake (NO)
Outs. Brake (COM)
24 Vac (Max 500mA)
24 Vac (Max 500mA)
8K2 safety edge
Power supply of the ACCESSORIES
Power supply of the ACCESSORIES
U
- 1 -
V
- 2 -
- 3 -
W
- 4 -
Ground
- 5 -
Ground
- 6 -
Light
Light
- 7 -
- 8 -
Make a link:
- 9 -
8-10 : for 400Vac power supply
9-10: for 230Vac power supply
-10-
-11-
-12-
-13-
-14-
-15-
-16-
-29-
-30-
COM
Common
COM
Common
LSO
-17-
LSC
-18-
-19-
Stop
-20-
OPEN
-21-
CLOSE
-22-
-23-
START
-24-
Pedestrian
-25-
NC safety edge
Make a link COM to exclude
-26-
Close JP1 to exclude
-27-
TEST
Output for Dry contact for 2nd Ch
TEST
-28-
Output for Dry contact for 2nd Ch
12 VAC
12 VAC
M
POWER SUPPLY of
the control unit
N.C.
N.O.
N.O.
N.O.
OUT2
OUT2
- Cable sock Antenna
GND
ANT
+ Antenna
Operating guide for the installer
400Vac Three Phase
motor or 230Vac
Single-phase
N.O.
100%
ITAL Y

Advertisement

loading
Need help?

Need help?

Do you have a question about the START-S9-PV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for nologo START-S9-PV

Summary of Contents for nologo START-S9-PV

  • Page 1 • Three-phase/Single-fase control panel for 1 motor 400/230 Vac motor 2Hp. • Electronic obstacle detection, inside/outside brake, 4 functions mode, radio decode supplied. Deactivation of the photo beams when the curtain gets down. START-S9-PV Operating guide for the installer 400Vac Three Phase...
  • Page 2 Symbols and warning you have doubts regarding use and before perfor- Type of installation ming any maintenance operations. Nologo has the Preliminary check right to modify the product without previous notice. Type for electrical cables...

  • Page 3: Type Of Installation

    START-S9-PV Technical Manual Introduction Safety precautions We remind that the installations of gates and automatic doors must be executed from qualifi ed personnels accor- ding to the norms. Before installing check the strength and mechanic part of the gate or door, check that the me- chanical stops are suitable to stop immediatelly the cycle of the gate or door even in case of faulty limit switches or during the manual cycle.

  • Page 4: Preliminary Check

    START-S9-PV Technical Manual Preliminary check Making the correct choice of installation is essential to ensuring adequate safety and good protection against atmospheric agents. Remember that the control unit contains powered parts and electronic components which by their very nature are sensitive to infi...
  • Page 5 START-S9-PV Technical Manual Installation of the control board 400Vac Three Phase motor or 230Vac Single-phase 400Vac Three Phase motor or 230Vac Single-phase 400Vac Three Phase motor or 230Vac Single-phase Connection of the ground Connection of the ground Light dry-contact for light...

  • Page 6: Checking Connections

    START-S9-PV Technical Manual Scheme of the control unit 14 15 8 9 10 FUSE 4 630mA Resettable Fuse OUT2 OUT2 CLOSE - Antenna + Antenna OPEN CLOSE OPEN The control panel has 2 buttons to open and close the door.
  • Page 7 START-S9-PV Technical Manual Connection of the voltage The are three possibilities to power the control unit: THREE-PHASE 230 Vac THREE-PHASE 400 Vac SINGLE-PHASE 230 Vac 9 10 9 10 9 10 The voltage line must be protected from a thermal-cutoff -switch or from a 5A fuse. A circuit-breaker is recommended but not ne- cessary if not available in the installation.
  • Page 8 START-S9-PV Technical Manual 2.5 Connection of the MECHANICAL BRAKING 2.6 Connection of the LS The LS must be used in Here is the connection of the 14 15 16 COM 17 18 the installation mechanical braking at 230V CLOSE OPEN LIMIT N.C.
  • Page 9 START-S9-PV Technical Manual Connection STOP and SAFETY EDGE Connection of the SAFETY EDGE: 29 30 C C 17 18 19 20 21 22 23 24 25 26 Stop the gate and reverse the door for 1,5 seconds 29 30 C...
  • Page 10 START-S9-PV Technical Manual MODE and ADJUSTMENTS The control panel dispose of micro-switches to activate diff erent functions according to the end-use requirements and for a safety doors. Set Up of the DIP SWITCHES Each control the motor renverses: 1-OFF 2-OFF if in pause, it re-closes When the door is opening it ignores the controls;...
  • Page 11 START-S9-PV Technical Manual Logic of DIP Activate the working time with 5-ON WORKING TIME START AND PEDESTRIAN (partial opening) Reset of the Bring in OFF the micro-switch no. 5 for reset the memory 5-OFF memory (for remote controls). 6-ON Phototest Activate the FOTOTEST for the photocells.
  • Page 12 START-S9-PV Technical Manual INSTALLATION of the RADIO and MANAGING of the remote control The control panel has a radio decode to memorize the remote controls. The control units can manage diff erent codes but the fi rst code determines the type of code which will be managed. You cannot memorize diff erent codes which is not compatible with the fi rst memorized remote.
  • Page 13 START-S9-PV Technical Manual SWITCHING ON and PROGRAMMING When you turn on the control panel, if everything is ct properly, the green LED TEST must fl ash while the LED for inputs STOP, FOTO, LSO, LSC and Safety Edge must be lit one (if the gate is closed LSC is switched off ). LED START and Partial Opening must be switched off...
  • Page 14 START-S9-PV Technical Manual Memorization of the working time with START (opening control) Bring ON the microswitch 5 of DIP A Door is closed Press START (or everything connected to the input no.23 Door is opening or the 1st channel of the remote control)
  • Page 15 START-S9-PV Technical Manual Increasing the PAUSE TIME Time changing It is possible to increase the pause time without repeating the memorization of the + 4s each time the working time. + 4s button is pressed + 4s When the door is in pause, each pression of button P, the pause time increases of 4 + 4s seconds.There are 5 steps to increase the pause time until 20 seconds.
  • Page 16 START-S9-PV Technical Manual Note CE Declaration of Confi rmity ..........(according to EC Directive 2006/42, Attachment II, part 1, ses. A) ..........The undersigned Ernestino Bandera, Administrator ..........DECLARES THAT: ....................Company: EB TECHNOLOGY SRL Address: Corso Sempione 172/5 ..........
