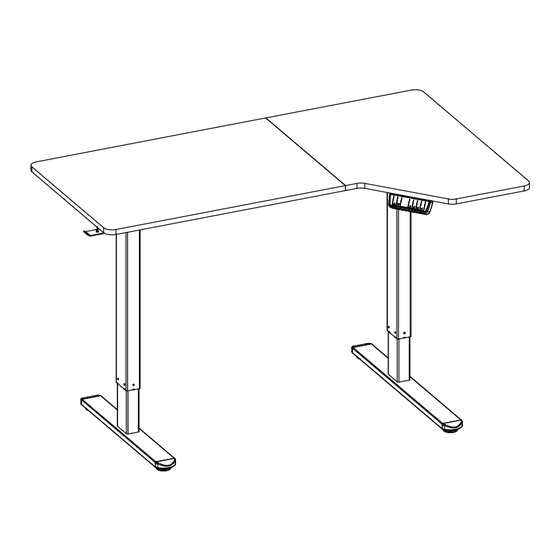

Electric Standing Desk
Instruction Manual
(A)
Model: MSEDS2B1/MSEDS2/MSEDS2N
Thank you for choosing this product! We strive to provide you with the best
quality products and services in the industry. Should you have any issues,
please don't hesitate to contact us
Technical Support:
877-546-8648 Mon-Fri 8am - 8pm(CST)
Other Info: support@ciays.com
Advertisement
Related Manuals for Totnz MSEDS2B1
Summary of Contents for Totnz MSEDS2B1
- Page 1 Electric Standing Desk Instruction Manual Model: MSEDS2B1/MSEDS2/MSEDS2N Thank you for choosing this product! We strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us Technical Support: 877-546-8648 Mon-Fri 8am - 8pm(CST) Other Info: support@ciays.com...
-
Page 2: Specification
Specification Desktop Size: 55.1 x 33.5 in (140x85cm) RATED Vertical Range: Power Input Max.Speed Motion Noise Load Capacity 28.3 - 47.2 in (72-120cm) 110V-240V 25 mm/s ＜55dB 176 lbs / 80 kg Tool Needed (Not lncluded) Phillips Screwdriver Supplied Parts and Hardware for Step 1 Left Table Leg Right Table Leg Long Feet... - Page 3 Bolt 5/64 in (2mm) 5/32 in (4mm) Rubber Pad M6×10 mm Small Allen Key Medium Allen Key J (x19) C (x4) H (x1) G (x1) Supplied Parts and Hardware for Step 3 Screw M5x16mm Wooden Pin E (x28) K (x3) Tabletop Screw Desktop...
- Page 4 ⑨ ⑫ Medium Allen Key Medium Allen Key ⑫ ⑫ ⑩ Pay attention that you need to align the holes on the crossbar with the two outer holes on the metal connector. Large Large Left Table Leg Left Table Leg Allen Key Allen Key ⑩...
- Page 5 Secure the Side Plates and Transmission Rod to Step 2 the Table Legs Short Side Plate Long Side Plate Left Table Leg Left Table Leg ④ Right Table Leg Right Table Leg Short Feet Medium Medium Allen Key Allen Key Long Feet Loosen the pre-assembled coupling nut for adjusting...
- Page 6 Insert the other end of transmission rod to the slot on the right leg (You may rotate the rod slightly for better installation). Small Allen Key Secure the transmission rod to the slot by tightening the pre-assembled set screw clockwise using the small Allen key [H]. ⑪...
- Page 7 Step 3. If the height of the left table leg is lower than the right table leg, insert the transmission rod into the hexagonal Turn Turn ① hole of the left table leg and rotate the transmission rod clockwise clockwise clockwise to fine-tune the left table leg to make the left table ②...
- Page 8 Long Feet ② Right Table Leg Right Table Leg ⑫ Soft Long Side Long Side Cloth Plate Plate Phillips Screwdriver [Not Included] Long Feet ⑯ Right Table Leg Right Table Leg Can be mounted in each side Long Side Long Side Soft Cloth Plate Plate...
- Page 9 Step 4 Connect the Cables ⑮ Duty Cycle: 10%, 2 min on/18 min off Self-supplied USB cable The pre-assembled cable on the motor. Built-in USB Port for charging ⑮ your device. Short press [S] button, the display flashes. Press either of 1,2,3 memory keys to save the height.
- Page 10 Reset...
- Page 12 Thank you again choosing this product! All of us do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us Technical Support: 877-546-8648 Mon-Fri 8am - 8pm(CST)
