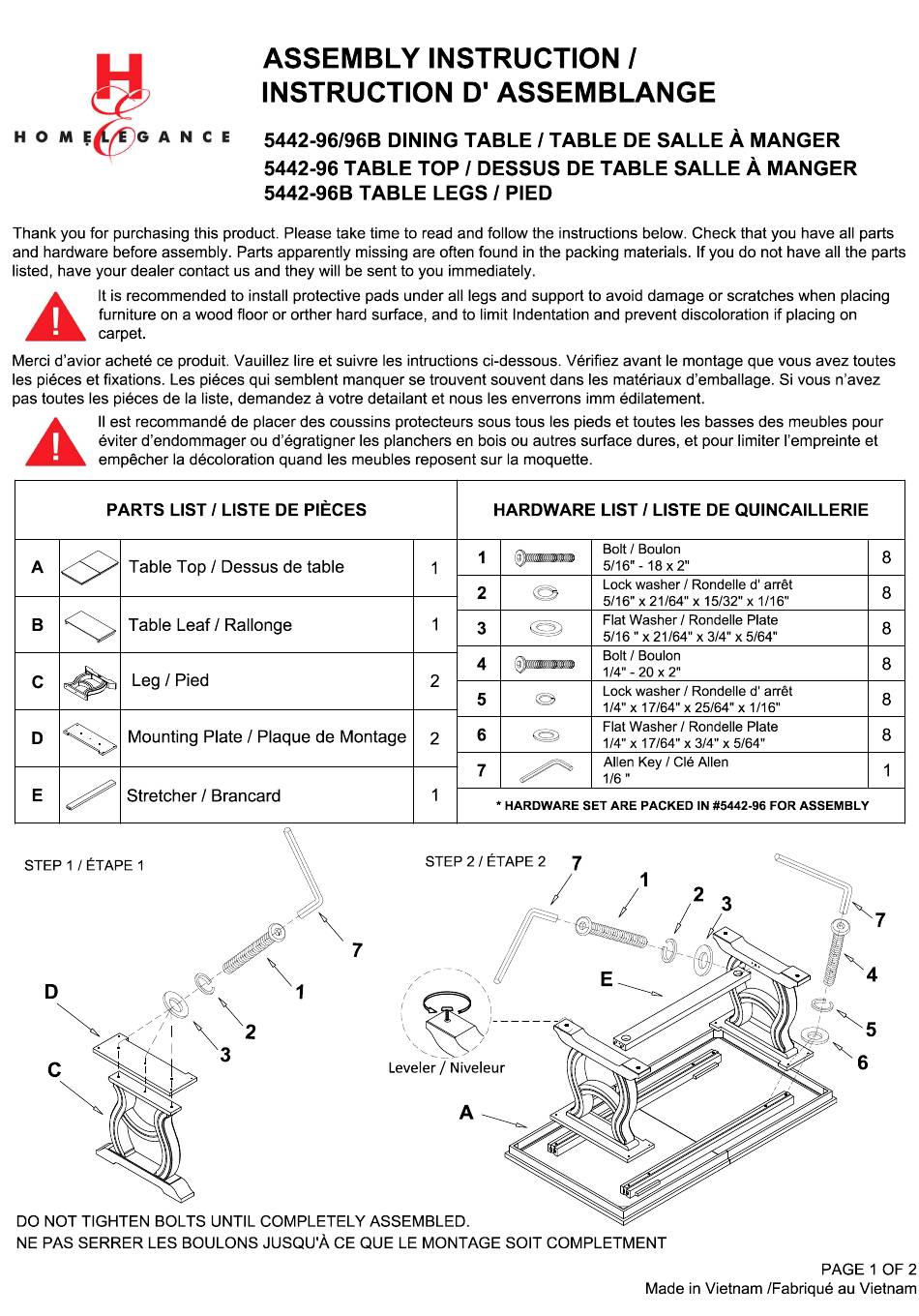

ASSEMBLY INSTRUCTION /
INSTRUCTION D' ASSEMBLANGE
PARTS LIST / LISTE DE PIÈCES
Table Leaf / Rallonge B
1
A
1
Table Top / Dessus de table
Stretcher / Brancard
C
1 E
2
Leg / Pied
* HARDWARE SET ARE PACKED IN #5442-96 FOR ASSEMBLY
HARDWARE LIST / LISTE DE QUINCAILLERIE
Thank you for purchasing this product. Please take time to read and follow the instructions below. Check that you have a
and hardware before assembly. Parts apparently missing are often found in the packing materials. If you do not have all
listed, have your dealer contact us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and support to avoid damage or scratches when pl
furniture on a wood floor or orther hard surface, and to limit Indentation and prevent discoloration if placing on
carpet.
5442-96/96B DINING TABLE / TABLE DE SALLE À MANGER
5442-96 TABLE TOP / DESSUS DE TABLE SALLE À MANGER
5442-96B TABLE LEGS / PIED
Mounting Plate / Plaque de Montage 2
D
1 8
Bolt / Boulon
5/16" - 18 x 2"
2 8
3 8
5/16" x 21/64" x 15/32" x 1/16"
4
Flat Washer / Rondelle Plate
5/16 " x 21/64" x 3/4" x 5/64"
5
8
Bolt / Boulon
1/4" - 20 x 2"
6
8
1/4" x 17/64" x 25/64" x 1/16"
8
Flat Washer / Rondelle Plate
1/4" x 17/64" x 3/4" x 5/64"
7 1
Allen Key / Cl
1/6 "
C
D
7
4
5
6
A
E
7
1
2 3
Leveler / Niveleur
PAGE 1 OF 2
DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED.
