Homelegance Orsina 5477N-96 Assembly Instructions

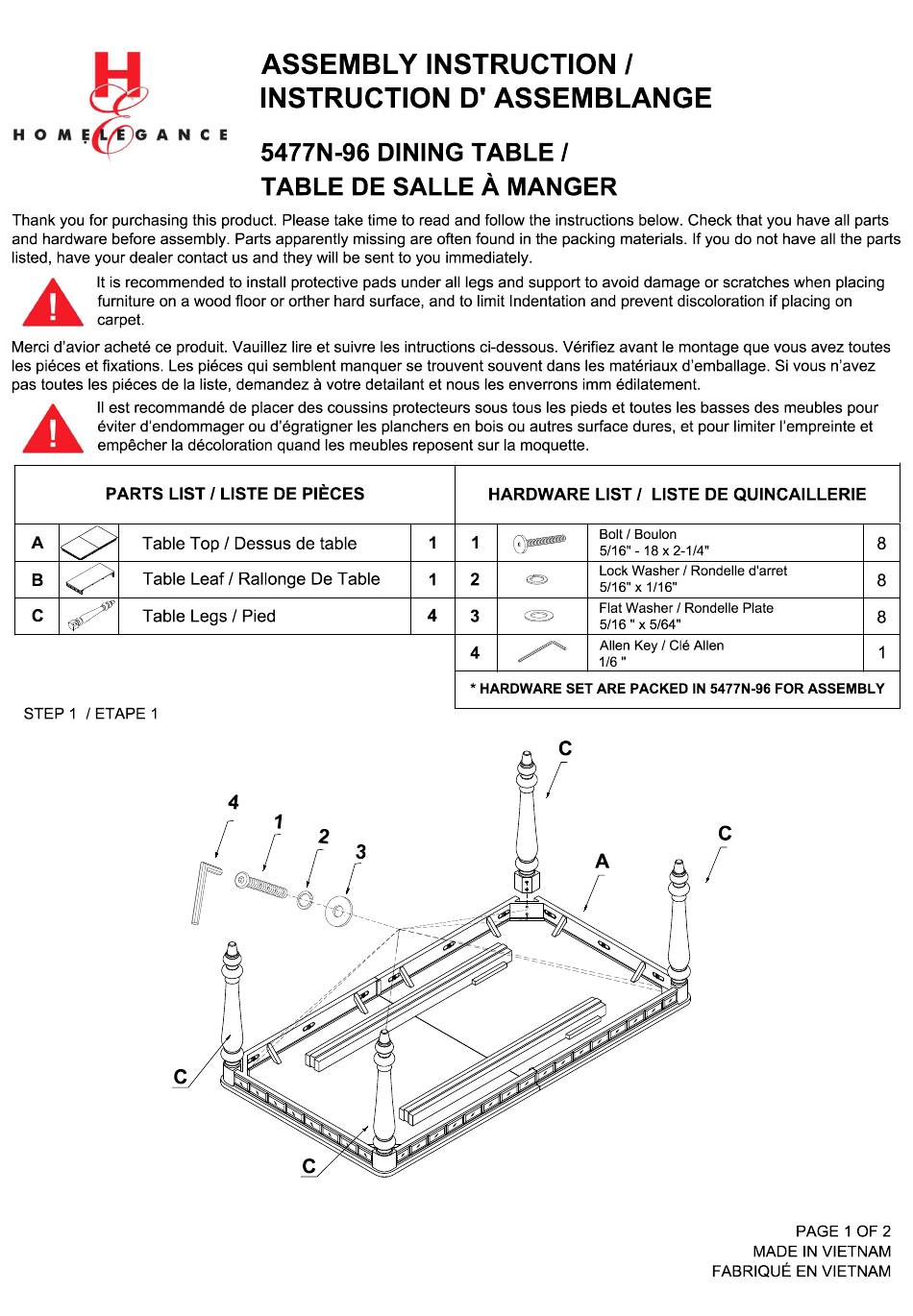

ASSEMBLY INSTRUCTION /
INSTRUCTION D' ASSEMBLANGE

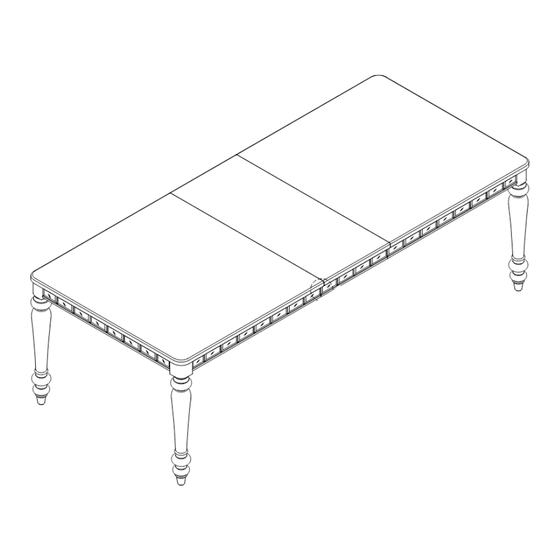

5477N-96 DINING TABLE /
TABLE DE SALLE À MANGER
STEP 1 / ETAPE 1
B
4
A
2
3
4
1
PARTS LIST / LISTE DE PIÈCES
HARDWARE LIST / LISTE DE QUINCAILLERIE
Thank you for purchasing this product. Please take time to read and follow the instructions below. Check that you have al
and hardware before assembly. Parts apparently missing are often found in the packing materials. If you do not have all th
listed, have your dealer contact us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and support to avoid damage or scratches when pla
furniture on a wood floor or orther hard surface, and to limit Indentation and prevent discoloration if placing on
carpet.
Table Leaf / Rallonge De Table
Table Top / Dessus de table
Table Legs / Pied
8
Bolt / Boulon
5/16" - 18 x 2-1/4"
8
8
Lock Washer / Rondelle d'arret
5/16" x 1/16"
Flat Washer / Rondelle Plate
5/16 " x 5/64"
1
Allen Key / Cl
1/6 "
* HARDWARE SET ARE PACKED IN 5477N-96 FOR ASSEMBLY
1
1
C
A
C
C
C
C
MADE IN VIETNAM
PAGE 1 OF 2
