EVO
EVO
Remote
ATTENTION:
instructions carefully to understand the operating procedures
BEFORE you run your caddy.
Please follow all assembly instructions. READ the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO Remote and is the answer not in the manual?

Questions and answers

Summary of Contents for Batcaddy EVO Remote

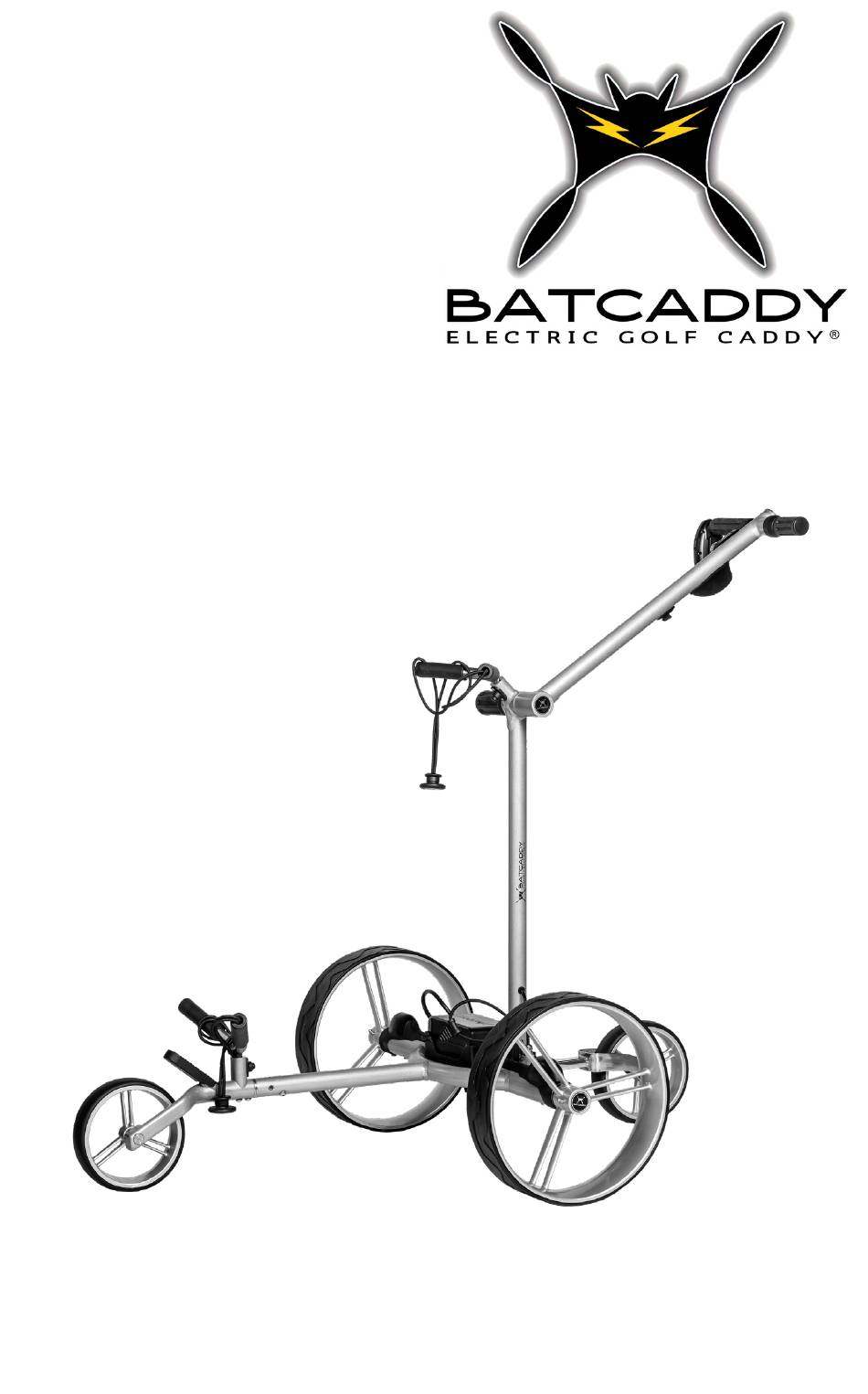

  • Page 1 Remote ATTENTION: Please follow all assembly instructions. READ the instructions carefully to understand the operating procedures BEFORE you run your caddy.
  • Page 2: Table Of Contents

    CONTENTS OF BOX 3 1 - Frame with Pre-assembled Front Wheel 3 2 - Rear Wheels 3 1 - 24v Advanced Lithium XL Battery 3 1 - Charger with Power Cable 3 1 - Adapter, Battery to Charger, Magnetic Plug 3 2 - Bag Holders 3 1 - Front Wheel Tool 3 1 - Remote Control with Charger Cord...
  • Page 3: Overview: Evo Golf Caddy

    Overview: EVO Golf Caddy 1. Front Wheel 2. Lower Bag Holder 3. Upper Bag Holder 4. Middle Frame 5. Bungee Strap 6. Battery Connection 7. Battery Tray 8. Upper Locking Screw 9. Upper Frame 10. Speed Control Dial 11. Start/Stop Button 12.
  • Page 4: Assembly

    Assembly Wheel Assembly Press the small silver button, slide the wheel onto the axle and rotate the wheel until the bolt clicks into place on the axle. The first of the two notches is for the freewheel (gap between axle and wheel). To release the wheel, press the silver button and pull the wheel off the axle.
  • Page 5: Battery & Charger

    Battery and Charger Before using it for the first time, you should first fully charge the battery with the charger supplied. The battery is fully charged when the LED turns green. The battery lasts for up to 45 holes - depending on the duration of the game and playing conditions.
  • Page 6: Handle Controls

    Handle Controls Connect the battery to the Caddy. The Caddy is auto- matically switched on and ready for use. The LED bat- tery indicator lights up green and the start/stop button lights up steadily. Please note that you should start the Caddy on a flat and straight surface.
  • Page 7: Speed Knob

    Speed Control Dial With the speed control dial you can regulate the EVO Golf Caddy at a desired speed. To do this, carefully turn the speed control dial clockwise until the desired speed is reached. By turning the speed control dial back, you can stop the Caddy.
  • Page 8: Intelligent Auto-Tracking

    Intelligent Auto-Tracking An Intelligent Auto-Tracking system is installed in your Caddy. The sensor automatically measures the lean angle of the slope and electronically regulates the drive of the two rear wheels individually. This means that your Caddy drives straight ahead even on inclined slopes. USB Port The USB port can be used to charge personal electronic items.
  • Page 9: Remote Control

    Remote Control A Forward/Speed Up B Left Turn C Right Turn D Reverse/Speed Down F Park Button (electromagnetic parking brake active) G Stop Button (no parking brake Not used active) 1 Fixed Speed No. 1 2 Fixed Speed No. 2 3 Fixed Speed No.
  • Page 10 We recommend that you operate your EVO Golf Caddy within 10 to 20 yards for optimal control. If the remote control does not receive input within 60 seconds, the Caddy will stop automatically (safety protection). Any button press restarts the timer and prevents the Caddy from stopping.
  • Page 11: Anti-Tip Wheel

    Anti-Tip Wheel Pull the quick-release pin outwards and slide the anti-tip wheel into the socket, subsequently the anti-tip wheel is secured again by letting go of the quick release pin. The anti-tip wheel is absolutely necessary when walking with the remote control. On steep terrain, the anti-tip wheel offers protection against possible tilting of the Caddy, even in manual mode.
  • Page 12: Bag Supports

    Bag Supports Both the upper and lower bag supports are removable and rotatable. Press the button shown. Then you can move or attach the bag supports. The bag supports are designed at an angle. This allows you to adjust the bag supports in either direction to fit your golf bag.
  • Page 13 Can you clean the Caddy with water? The EVO Golf Caddy has various electronic elements built in. Therefore, please only use a damp cloth for cleaning and avoid too much contact with water. Water baths or compressed air combined with water (high-pressure cleaner) are absolutely unsuitable and damage the Caddy! What happens if the battery has taken a hit?
  • Page 14 Why does the EVO stop without any buttons being pushed? Please check the battery level first. We recommend that you only plug in the battery shortly before your round. Thus, you start your game with a battery charge of 100%, which ensures full usage time. The reason for this is that the Caddy has a standby consumption.
  • Page 15 Caddy. Make sure there are no other Batcaddy’s in your immediate vicinity that are switched on, as they may interfere with the pairing of the remote control.
  • Page 16 EVO-lution Join the CUSTOMER SERVICE AND TECHNICAL SUPPORT Call/text us at (888) 229-5218 or email us at support@batcaddy.com BC-051024...
