- Page 1 X9 SERIES USER MANUAL X9R Carbon ATTENTION: Please follow all assembly instructions. READ the instructions carefully to understand the operating procedures BEFORE you operate your caddy.
-
Page 2: Table Of Contents
Overview .....…......……..………........4 Wheel Mounting..............….......5 Opening Your Caddy............….......5 Battery & Charger ....................6 Handle Control....................7 USB Port..……….....…….............……..Remote Control.....................8 Scorecard Holder................…9, 10 Umbrella Holder..................11 Anti-Tip Wheel.....................11 Tracking Adjustment..................12 BATCADDY Remote Caddy Comparison..........13 Model Weights and Measurements............14 Customer Service and Technical Support..........14... -
Page 3: Packing List
PACKING LIST 1 - X9 Series frame pre-assembled incl. front wheel 2 - Rear wheels 1 - Advanced Lithium-FePO4 battery 1 - Battery Charger with power cable 1 - Instruction manual 1 - Battery Use Instructions 1 - Seat Installation instructions... -
Page 4: Overview

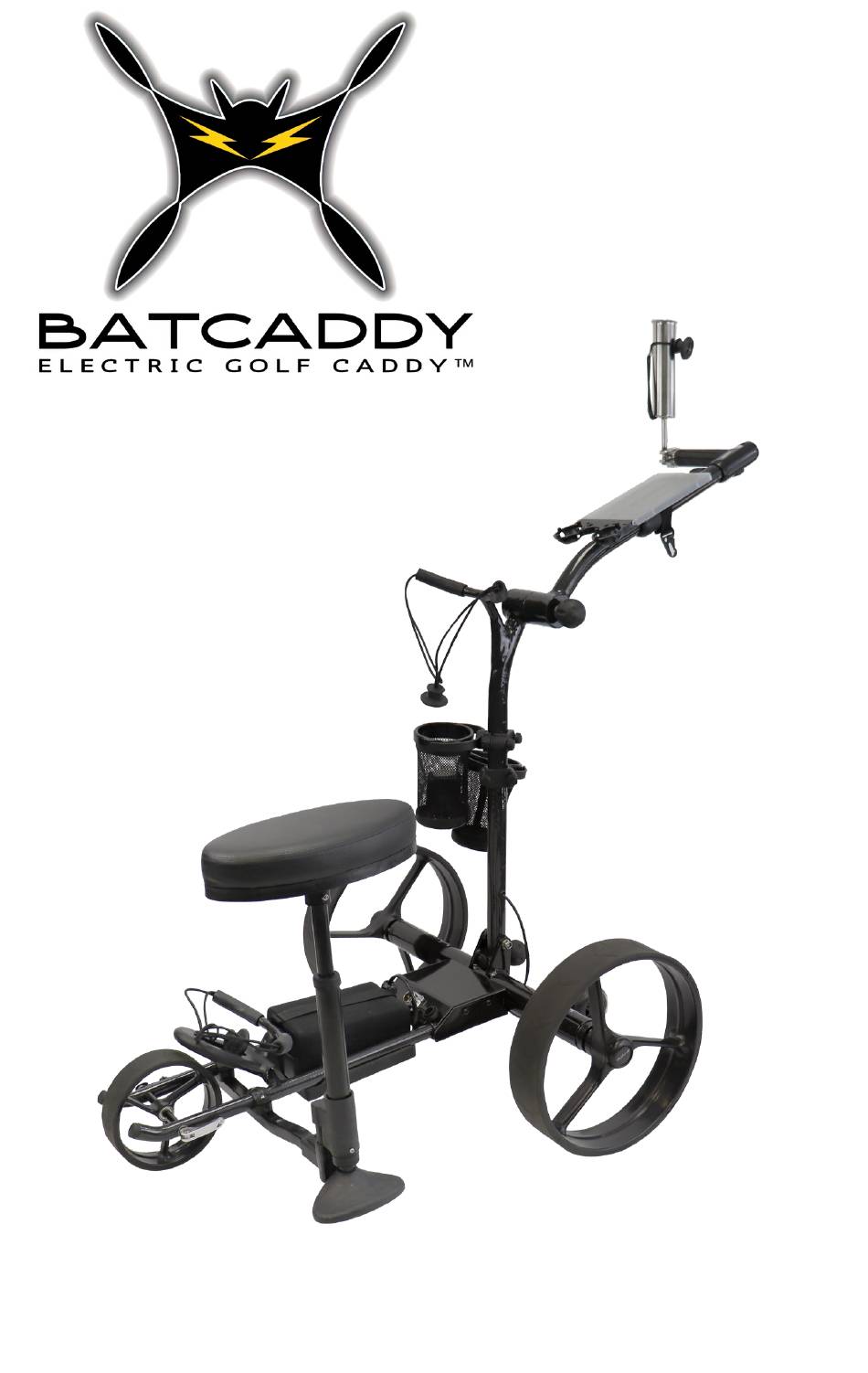

OVERVIEW X9 Series Umbrella Holder Power/Control Panel Scorecard Holder Upper Bag Holder Upper Frame Bag Support Strap Upper Frame Locking Knob Dual Cup Holder Seat Lower Handle Assembly Lower Frame Locking Knob Lower Bag Holder Electronics Unit Battery Socket Seat... -
Page 5: Wheel Mounting
Next, raise the Upper Handle Assembly to desired height. Upper Frame Tighten the Upper Screw Assembly to lock in the handle. Screw Reverse the process to fold your Batcaddy Important: The screws must tighten easily! Never tighten with excessive force, damage can occur. Lower Frame Screw Figure 3: Golf ball screw above &... -
Page 6: Battery & Charger
A complete charging cycle takes about 3 hours. Figure 4: Battery and Charger Place the battery in the tub provided. Please only use the original supplied BATCADDY battery. Connect the battery plug to the battery socket. Figure 5: Battery plug... -
Page 7: Handle Control
Start/Stop Fig. 6: Control Element With the speed wheel you can adjust the BATCADDY X9R to the desired speed. To do this, simply turn the wheel forward or back with your index finger. With a short press of the start/stop button, you can stop the Caddy without it switching off completely. -
Page 8: Usb Port
USB CONNECTION With the USB port, personal belongings, such as GPS golf watches or smartphones, Bluetooth speakers, etc. can be charged. The range of the battery will slightly shortened. Remote Control Operation POWER Switch: Slide up to turn on the Remote Control. Slide LEFT down to turn off. -
Page 9: Scorecard Holder
SCORECARD HOLDER Step 1: Remove the scorecard holder from the box and remove the bubble wrap. Step 2: Open the lid and loosen the two black cross screws completely. Step 3: Remove the curved bottom of the mounting device. Step 4: Place the scorecard holder on the upper bars about 2 finger widths away from the speed wheel. - Page 10 SCORECARD HOLDER (Continued) Step 5: Position the bottom of the mounting device on the bottom of the top handle, then you can easily tighten the screws. Step 6: Use the palm of your hand to push the bottom up so that the screws protrude over the scorecard holder.
-
Page 11: Umbrella Holder
UMBRELLA HOLDER Turn the screen holder clockwise into the thread of the pre-assembled clamp next to the handle. For optimal grip, rotate the umbrella holder as far as possible clockwise. To release the tension and move the umbrella holder, rotate counterclockwise. AUXILIARY WHEEL Remove the quick-release bolt from the Anti-Tip Wheel and slide the Anti-tip wheel in the rear of the device. -
Page 12: Tracking Adjustment
ADJUSTING THE TRACKING OF YOUR BATCADDY The caddy is designed to be used with cart bags. Stand bags should not be used. Please make sure that the weight distribution of the cart golf bag on the right and left side is approximately the same. If this is the case, you can loosen the silver nuts a little on the front wheel on both sides. -
Page 13: Batcaddy Remote Caddy Comparison
MODEL COMPARISON Sport Sport FEATURES Carbon ✓ ✓ One-Click Locking Frame ✓ ✓ Dual-Lock Z-Fold Frame ✓ No-Lock Euro-Wave Frame ✓ Stealth Design Frame ✓ Advanced Stability Geometry ✓ “Forever Traed” Wheels ✓ ✓ Single 12V Motor ✓ ✓ ✓ Dual 12V Motors ✓... -
Page 14: Model Weights And Measurements
22.4 LBS 23.3 LBS 25.1 LBS 14.2 LBS Battery & Accessories) *Open height varies due to adjustable handle on X4, X8, X9 Series Carts CUSTOMER SERVICE AND TECHNICAL SUPPORT Call/text us at (888) 229-5218 or email us at support@batcaddy.com BC-050222...
