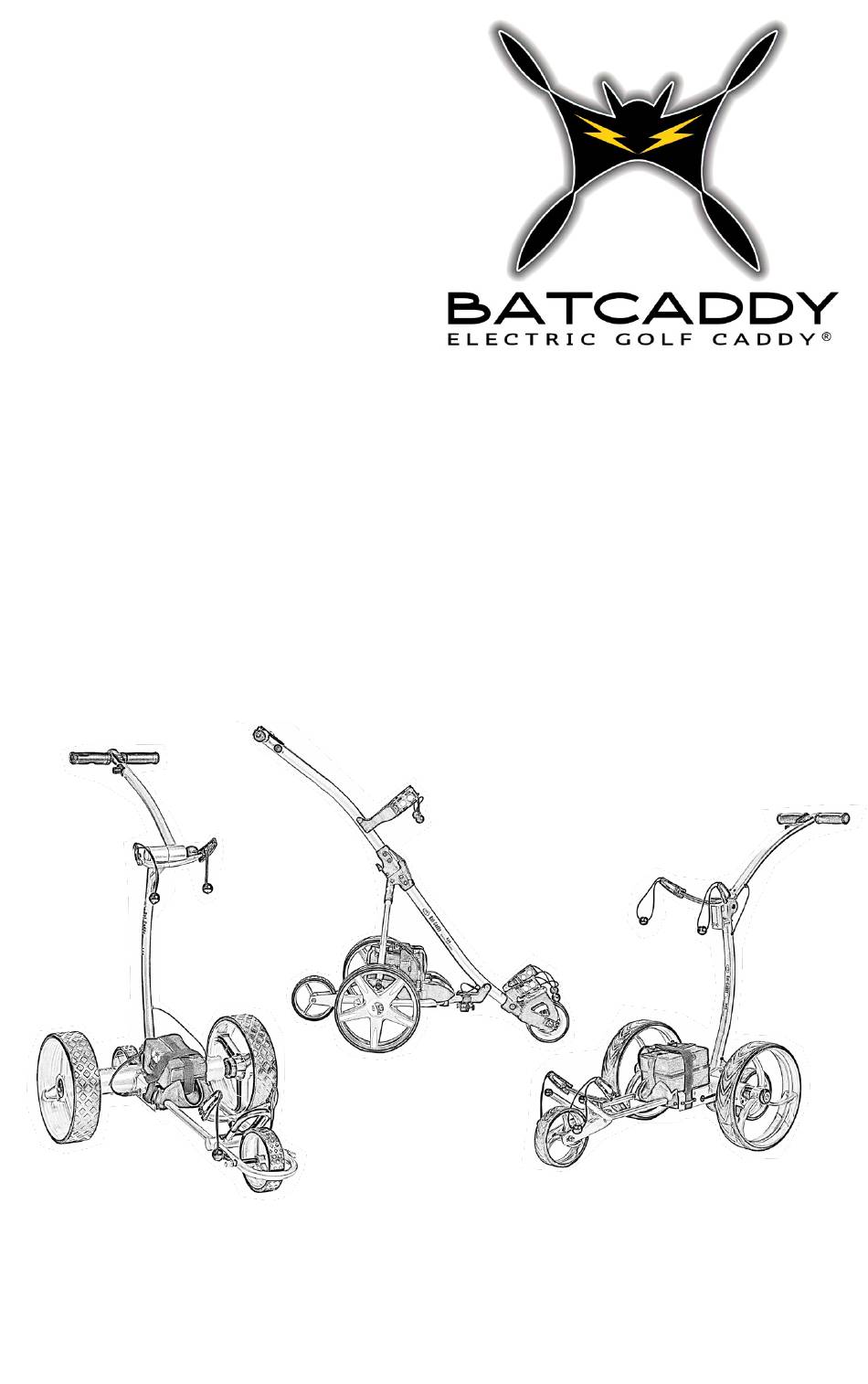

- Page 1 SERIES SERIES SERIES MANUAL Please follow all assembly instructions. READ the ATTENTION: instructions carefully to understand the operating procedures BEFORE you run your caddy.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Packing List....................Parts Glossary X3 Series........……....…………........………..4 X4 Series…………….………....……....………………........…..5 X8 Series...........................6 Assembly Instructions Un packing..……………............…........….7 Wheels..........................7 Frame Setup......................7, 8 Battery Setup........................8 Anti-tip wheel......................9 Operating the Caddy Manual Controls, X3 & X4..................9 Manual Control X8.......................10 Remote Remote Control....…….............……..…..…..….…11 Synchronizing Your Remote................12 Additional Functions USB port..........................12... -
Page 3: Packing List
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT BatCaddy FCC ID: QSQ-REMOTE IC ID: 10716A-Remote... -
Page 4: Parts Glossary
PARTS GLOSSARY SERIES 1. T-Handle w/Power Button and USB Port 2. Speed Control Dial (Rheostat) 3. Upper Bag Support 4. Lower Bag Support 5. Frame Locking Hinge 6. Battery w/Bag & Lead 7. Charger 8. Battery Connection Plug 9. Lower Frame Connector 10. - Page 5 PARTS GLOSSARY SERIES T-Handle w/Power Button USB Port Speed Control Dial (Rheostat) 4. Upper Bag Support Upper Frame Locking Knob 6. Lower Frame Locking Knob Battery w/Bag & Lead 8. Charger Battery Connection Plug 10. Lower Bag Support & Strap 11.
- Page 6 PARTS GLOSSARY SERIES T-Handle w/Power Button USB Port Speed Control Dial (Rheostat) 4. Upper Bag Support Upper Frame Locking Knob 6. Battery w/Bag & Lead Charger 8. Battery Connection Plug Lower Bag Support & Strap 10. Rear Wheels 11. Front Wheel (w/ Tracking Adjustment &...
-
Page 7: X3 Series
X4 Sport X3 Sport 3. Frame Setup X3 SERIES Erect the frame by first unfolding the u-shaped frame piece (Pic-4). Bring up the frame piece with the main hinge attachment and first attach bottom of the hinge to the outside of the pin on the top of the u-shape frame (Pic-5). -
Page 8: X4 Series
............. 4. Frame Setup (Continued) ................. X4 Series. Erect frame by unfolding and connecting the main frame tubes together at the two frame locks. On the lower frame lock screw (Pic-2) make sure middle frame sets securely against the lower frame so the screw lines up with the threaded insert. -
Page 9: Anti-Tip Wheel
3 times will advance it 30 yards. Speed Control Dial - The dial on the side of the handle controls the forward speed of your Batcaddy. This dial should always be turned off prior to powering on your Caddy. This is done by turning the dial counter clockwise until it clicks. -
Page 10: Manual Control X8
OPERATING YOUR BATCADDY Continued 2. Press ON/OFF power button for about 3-5 seconds to turn caddy on or off. (LED will light up) 3. Digital Cruise Control - Once the Caddy is powered up, you can use the power button along with the speed control dial (rheostat) to stop the Caddy at the current speed and then resume at the that same speed. -
Page 11: Remote Control
Remote Control is 80-100 yards, this range is in perfect “laboratory” conditions. It is strongly recommended that you operate your Batcaddy at a maximum of 20-30 yards. This will help prevent any signal interference and/or loss of control. -
Page 12: Synchronizing Your Remote
SYNCHRONIZING YOUR REMOTE: If your Batcaddy will not respond to your Remote Control it may need to be resynchronized. A. Power off your Batcaddy for 5 seconds. B. Turn on your Remote Control C. Press and hold down the STOP button on the Remote Control D. -
Page 13: Tracking Adjustments
AXLE ADJUSTMENT BAR Note: There is a video on our website (support.batcaddy.com) under “tech tips Pic-2 videos” that shows how to adjust tracking. -
Page 14: Testing Your Caddy
Caddy does the work of carrying your bag. In order to keep our Batcaddy looking it’s best, wipe any mud or grass from the frame, wheels and chassis after every round using a damp cloth or paper towel. -
Page 15: Troubleshooting Guide
Problems attaching wheels • Make sure you are holding the spring clip down • Sand and smooth axle with emery cloth to remove excess paint or burrs CUSTOMER SERVICE AND TECHNICAL SUPPORT Call/text us at (888) 229-5218 or email us at support@batcaddy.com... -
Page 16: Model Features
MODEL FEATURES X3 Sport X4 Sport ✓ No-Lock Euro-Wave Frame ✓ ✓ Dual-Lock Z-Fold Frame ✓ ✓ One-Click Locking Frame ✓ ✓ Single 200w Quiet Motor ✓ ✓ ✓ Dual 200w Quiet Motor ✓ ✓ ✓ Simple Handle Operation ✓ ✓...
