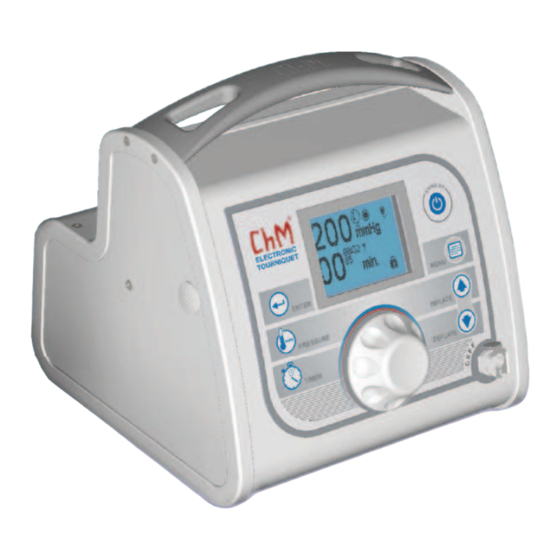

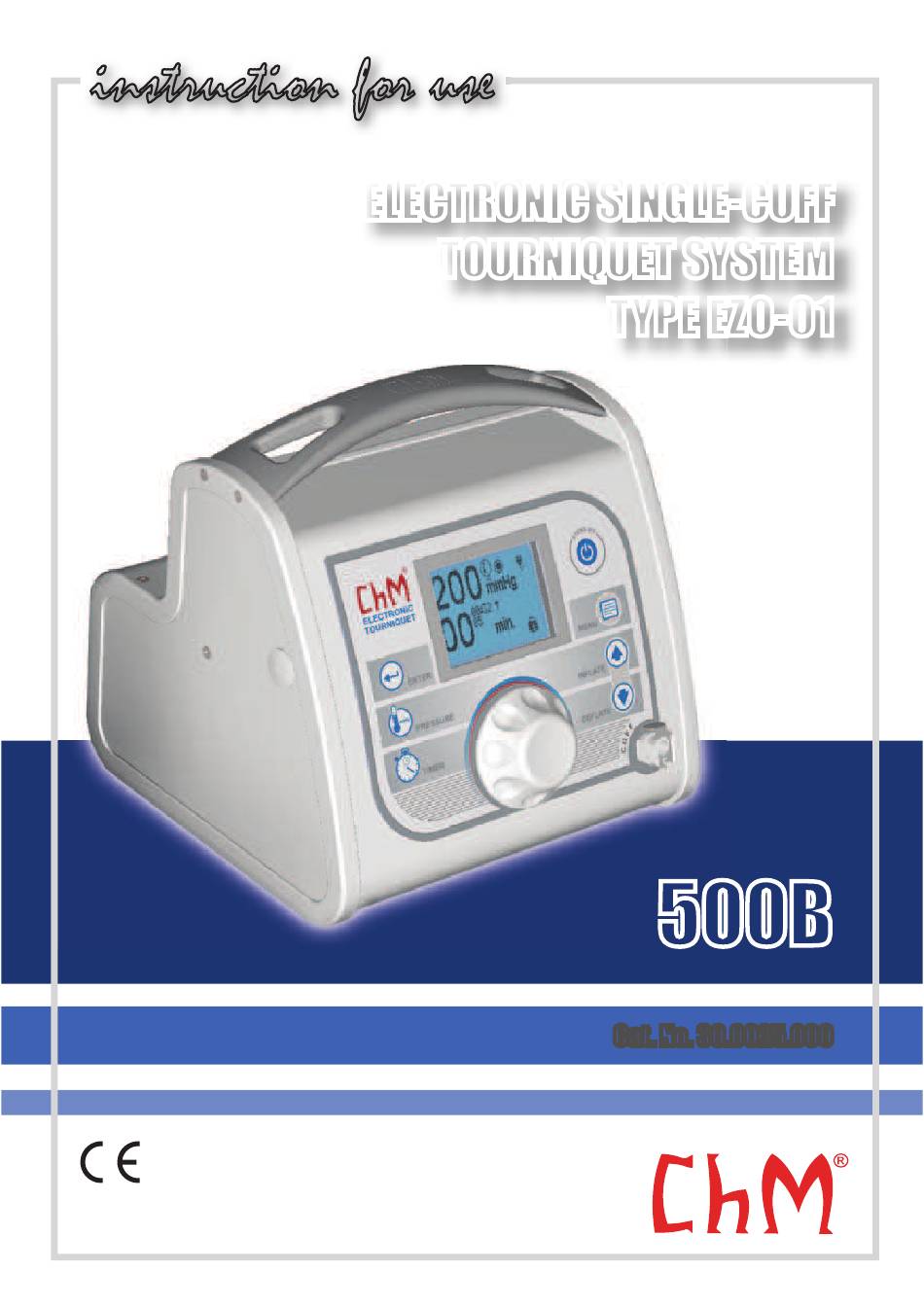

- Page 1 ELECTRONIC SINGLE-CUFF TOURNIQUET SYSTEM TYPE EZO-01 500B Cat. No. 30.0025.000 ISO 9001 ISO 13485...
- Page 2 All comments shall be adressed: ChM LTD. Lewickie 3b,16-061 Juchnowiec K., Poland tel. +48 85 713-13-30÷38, fax: +48 85 713-13-39 www.chm.eu e-mail: chm@chm.eu The manufacturer reserves the right to structural changes. Edition: 02.06.2013 Review: 12.11.2013...
-
Page 3: Table Of Contents
CONTENTS I. GENERAL INFORMATION ......................4 I.1. INDICATIONS: ............................4 I.2. CONTRAINDICATIONS ......................... 4 I.3. PRECAUTIONS ............................5 I.4. ADVERSE EVENTS ..........................6 II. DEVICE STRUCTURE ........................7 II.1. CASING ELEMENTS ..........................7 II.2. INITIAL INSPECTION ........................... 7 II.3. CONTROL PANEL ..........................8 II.4. -
Page 4: General Information
I. General information I.1. Indications: EZO-01 is an independent device that generates and controls the pressure in the tourniquet placed on patient’s limb during an operation in a and allows for timing of compression. It does not require any connection to external tank or system of compressed air. -
Page 5: Precautions
STANDBY mode. Even the slightest disturbance of venous return may lead to congestion and the accumulation of blood ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 6: Adverse Events
Blood permeating through the nourishing vessels of long bones, such as the humerus. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 7: Device Structure
The inspection shall be done by or trained presonnel familiar with such electonical medical devices. If the unit is damaged, immediately contact ChM Ltd representative. If the results of initial inspection are satisfactory, after 3 hours of charging, carry out the functional and calibration tests. -
Page 8: Ii.3. Control Panel
If there is any doubt concerning the continuity of CORD PROTECTIVE GROUNDING or protective earthing system in the electrical installation DO NOT USE the EZO-01 due to the danger of electric shock arising from the lack of basic security. II.3. Control panel Display 1. - Page 9 Press to change or modify the set pressure. (PRESSURE) Przycisk czasu (TIME) Press to change or modify the set time. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu...
- Page 10 ChM Ltd. Do not use cuffs with double port. Communica- The USB port is intended for maintenance. Do not use tion port - service this port. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu...
-
Page 11: Ii.4. Menu
Three possible options: Polish English Display settings. Six levels of brightness. Speaker. Key Tone. Two options: No option to mute the alarm. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 12: Ii.5. Initial Settings
ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 13: Ii.7. Working With The Cuff
Smoothly apply the tight cuff of tourniquet , avoiding ripples. Valve port and connector of conduits should be placed in such way that after positioning the limb the hose is not ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 14: Ii.8. Timer Usage
After removing the cuff, remove it from the electronic power supply. During the normal use do not set the device into STANDBY mode if there is any pressure in the cuff. After the cuff, its removing and disconnecting from the unit, the EZO-01 system can be switched to STANDBY mode. -
Page 15: Ii.9. Alarm Conditions
Cuff leakage for at least for more than 9 seconds. Hoses and con- 9 sec. nections shall be checked. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 16: Maintenance
Control includes: Internal and external damage. Condition of the power cord. Tightness of pneumatic connections. Condition of internal hoses. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 17: Iii.2.3. Functional Control, Callibration Control
It is pointless to mention all the possible failures and all possible causes, therefore the table may be useful during repair of the most common failures. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 18: Service
V.2. Technical parameters It is recommended to have post-warranty repairs of the system performed by the manufacturer or an authorized service center. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... -
Page 19: Technical Parameters
Conical single tourniquet for femur 40÷60 110x11 30.0014.500 ChM’s cuff is equipped with a connection tip which, if disconnected from the device, maintains the pressure in the cuff. In order to empty the system press the valve as shown on the drawing. VIII. Disposal Electronic single cuff tourniquet system should be disposed of in accordance with current law on waste electrical and electronic equipment, or sent to the manufacturer. -
Page 20: Used Symbols
Before the to the instruction for use. XI. Spare parts There are following lists of components that can be ordered from the company ChM Sp. For additional information, please write or call: ChM Sp. z o.o. Lewickie 3b,16-061 Juchnowiec K. -
Page 21: Labels And Warnings
16-061 Juchnowiec K. Made in EU POLAND www.chm.eu RYS 5. NAMEPLATE Warnings Caution! Caution! RYS 6. Warnings visible on the casing. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu... - Page 22 Battery voltage check can only be performed by ChM employee. NOTE: Battery disposal. Lithium-polymer battery must be subjected to appropriate treatment and disposal. ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu...
- Page 23 ChM Ltd., Lewickie 3b, 16-061 Juchnowiec K., POLAND tel. +48 85 713-13-20 ÷ 25 fax +48 85 713-13-19 e-mail: chm@chm.eu...
- Page 24 www.chm.eu...
