GS9000

Multichannel GPR pushcart

User Manual

Table of Contents

Need help?

Do you have a question about the GS9000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Proceq GS9000

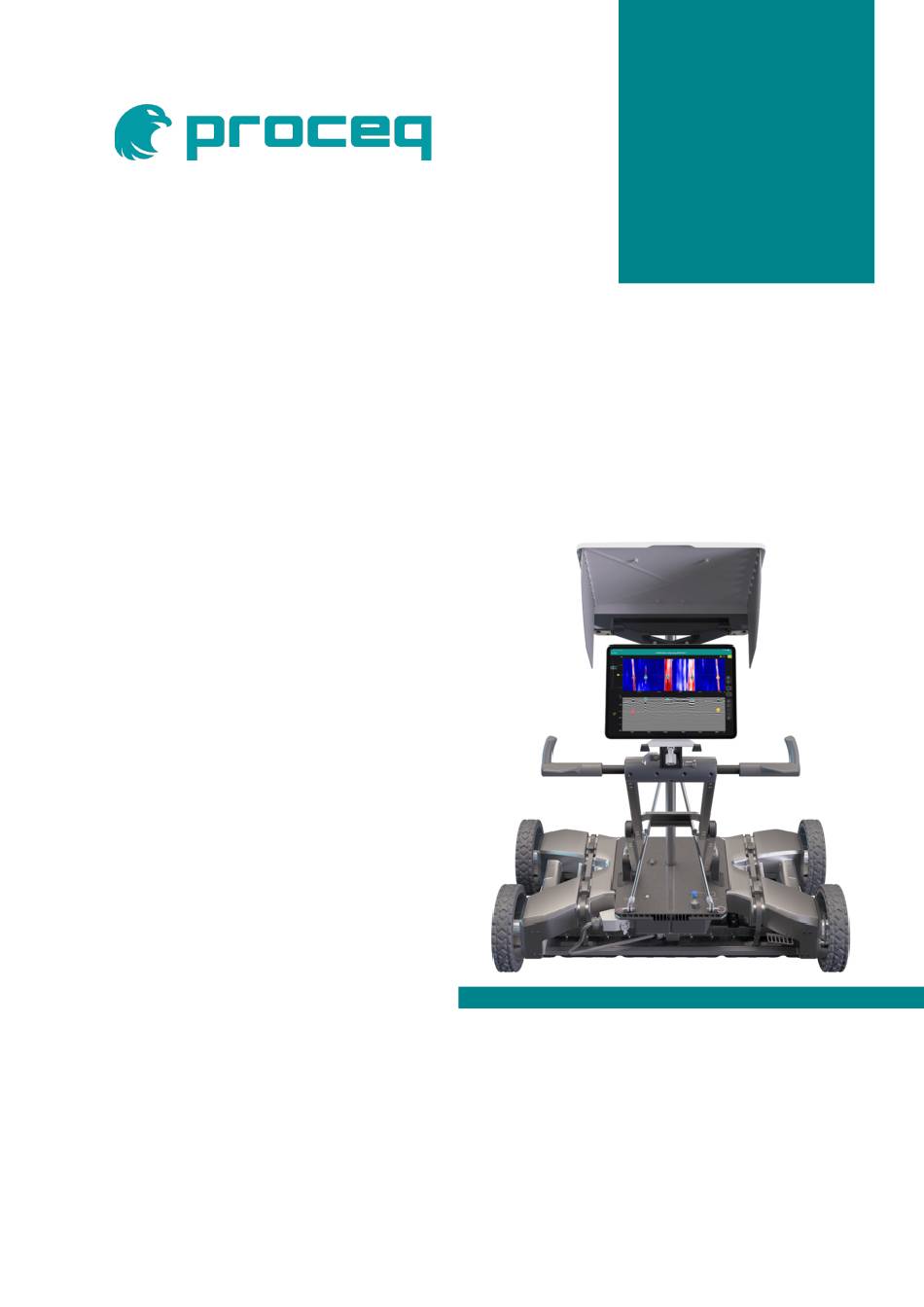

Page 1 GS9000 Multichannel GPR pushcart User Manual...
Page 2 Document Information Document Revision: Revision Date: Jul 01, 2024 Document State: Released Company: Proceq SA Ringstrasse 2 CH-8603 Schwerzenbach Switzerland Classification: Technical Manual Revision History Date Author, Comments Jul 01, 2024 GSAN 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 3: Table Of Contents
Rechargeable batteries for GNSS receiver ..............20 Turning on the system ....................... 21 Optional wired connections ....................22 4.7.1 Connecting iPad to GS9000 via USB cable ..............22 4.7.2 Connecting MA8000 to GS9000 via Lemo cable ............22 General maintenance tips ....................23 4.8.1...
Page 4 Using GPR Insights on the web .................. 67 8.3.2 Using GPR Insights on a local PC machine ..............67 8.3.3 Creating a new GPR Insights project with GS9000 data ..........68 Technical Specification ....................70 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 5 Serious damage resulting from the effects of foreign bodies, accidents, vandalism and ¡ force majeure. All information contained in this documentation is presented in good faith and believed to be correct. Proceq AG makes no warranties and excludes all liability as to the completeness and/or accuracy of the information. Safety Instructions The equipment is not allowed to be operated by children or anyone under the influence of alcohol, drugs or pharmaceutical preparations.
Page 6 7 days. However, the period could vary depending on the courier. Hence, it is recommended to check the exact time limit when receiving the goods. If there are any damages also inform your authorized Proceq agent or Proceq SA immediately. Shipment Should the device be transported again, it must be packaged properly.
Page 7: Introduction
1 Introduction The GS9000 is a high-productivity GPR mapping system in the form of pushcart for manual operation. It is based on multichannel stepped frequency GPR technology patented by Proceq. The product consists of An iOS field app (GS) running on any iPad Pro tablet ¡...
Page 8: Scope Of This Document
1.1 Scope of this document This document is aimed to assist the user of GS9000 in the setup and operation of the system for productive use. To achieve so, a sequence of basic steps is suggested, alongside possible alternative steps, when suitable.
Page 9: Main Applications
Post-processing GPR Insights on web GPR Insights on local machine 1.3 Main applications The GS9000 sensor can be used for various applications, depending on the type of GPR module attached : High-frequency GPR applications ¡ These applications are attainable when the GS9000 is connected to the GX1 array.
Page 10 When the GPR system is used standalone without any geopositioning module, every scan point has a relative position to the scanned line, but not absolute. This is the default operation mode of GS9000 Lite, and applications focusing on immediate results on-site, such as damage prevention before digging, do typically not need any further action.
Page 11: Scope Of Delivery
2 Scope of Delivery Please refer to the Quick start Guide provided in the standard delivery and available in download section of the product webpage: https://www.screeningeagle.com/en/products/proceq-gs9000 Figure 2: GS9000 Pro as received in the package 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 12: Measurement Principle
3.2 GNSS positioning GS9000 can accommodate a GNSS receiver (MA8000) developed by Proceq, with internet- based SSR corrections included. Alternatively, the GNSS receiver can receive NTRIP real- time corrections from a 3 party server, provided the right credentials are available.
Page 13 Figure 4 : Schema of differential GNSS corrections & current coverage of SSR service provided by Proceq The current coverage of SSR corrections includes: continental Europe, USA, Canada (trans-canadian corridor), South Korea, southeastern and southwestern Australia. The achieved accuracy is subject to the number of visible satellites and their geometry in the sky, atmospheric conditions, observation time, etc.
Page 14: Hardware Overview
4.1 Unfolding and setting up the cart Please refer to the Quick Start Guide (included in standard delivery) for the first steps with your GS9000. The Quick Start Guide is also available in the download section of the product webpage : https://www.screeningeagle.com/en/products/proceq-gs9000...
Page 15: Attaching And Adjusting The Ipad Pro Holder
3. If needed, unscrew the screw (5) and change the position of (6); screw again. 4. Fix the iPad Pro to the top (7) and screw (8) until it is fixed and secured. Figure 8: Adjusting to the right size of iPad Pro 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 16: Using The Sun & Rain Cover
1. Attach the RAM-mount adapter to the tablet holder and fix the screw (1) 2. Align the 4 fixation points (2) to the 4 equivalent fixation points of the accessory (3) 3. Fix the assembly with the corresponding RAM screws 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 17: Connecting The Gpr Multichannel Array Module
1. Place the GX1 or GX2 array module in front of the GS9000 pushcart, with the antenna connector (1) facing back and the straps released (2) 2. Lift the front (3) of the GS9000 and move it forward until it gently sits on top of and perfectly aligned with the GX array module.
Page 18: Adjusting The Straps
GX array module. 4.3.3 Connecting the antenna cable The electronics of the GS9000 and the GX array module are connected with an antenna cable. 1. Make sure the cable is facing the correct polarity of the connector (1) on both ends 2.
Page 19: Attaching The Gnss Receiver
Optionally, a tripod can be installed to make the position of the pole solidary to the GS9000: 4. Pass one of the hitch pins through the both holes on the GS9000 rear corner and at the end of the tripod leg (4) 5.
Page 20: Powering Concept
2. Accommodate the power bank to with the foam and close. Repeat for 2 power bank. 3. It is not necessary to turn the power bank on – the GS9000 will turn it on automatically. Figure 15: Open power bank drawer Make sure the USB-C cable is disconnected from the power bank if left inside the drawer overnight.
Page 22: Optional Wired Connections
Typically, when there are WiFi restrictions on the job site – or when a WiFi hotspot is used as source of mobile data for the iPad – it is possible to connect the iPad Pro to the GS9000 via a USB cable supplied with the system.
Page 23: General Maintenance Tips
This cable needs to be connected to both Lemo connectors, on the GS9000 and the MA8000. 4.8 General maintenance tips The standard delivery of GS9000 includes a small toolbox to self-perform the basic maintenance of the equipment: 4.8.1 Replacing the skid plate To replace a worn-out skid plate for a new one on either GX1 or GX2 modules, the lateral screws need to be unscrewed first with the tool provided in the toolkit.
Page 24: Replacing Wheels
– see chapter 5.5.1 Calibrating the odometer 4.8.3 Cleaning the system After usage, it is recommended to clean the GS9000 from dirty elements such as dust and mud, if present. Please take the following precautions before cleaning: Avoid high pressurized water and long-time direct water hosing onto the device.
Page 25 The pedal can be engaged or disengaged with a simple push down or pull up gesture made with the foot. Figure 21 : Engaging the wheel blocking pedal When the device is not in use, the parking brake should be engaged. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 26: Connecting The App To The Sensors
5 Connecting the app to the sensors The GS9000 system is controlled by an iOS app which can run on an iPad Pro. To efficiently calculate and manage the big volumes of data the GS9000 system can collect, as well as getting the right connectivity level to enjoy the services around it, it is strongly recommended to opt for an iPad Pro®...
Page 27: Home Screen
On the first use, the first step is to log in with the user credentials – which have been previously created in Workspace. In case of difficulties to generate a Screening Eagle ID, please contact your local Proceq office or authorized dealer.
Page 28: Registering The Equipment
Please note that the iPad Pro needs Internet access to complete this initial step, either using mobile data from integrated SIM card or access to a hotspot via WiFi. To do so, first the GS9000 needs to be registered: 1. Go to the Probe tile.
Page 29: Connecting To The Gs9000
Figure 25: Connecting the app to the GS9000 sensor In case of multiple unsuccessful attempts to connect, it is recommended to restart both the GS9000 (with a hard button press) and the app (with a swipe out screen to force the closure of the app).
Page 30: Calibrating The Odometer
1. In the Position menu, press the button left of the desired serial number in the list. 2. If GS9000 is connected to the MA8000 via cable, it will connect automatically. 3. If they are not physically wired, a Bluetooth connection will be established between iPad Pro and MA8000 within approx.
Page 31: Setting Up The Gnss Correction Service
(e.g. a mobile phone) via WiFi. In the latter case, the connection between iPad Pro and GS9000 needs to be via cable to free up the WiFi connection for the hotspot. To set up the correction service, the MA8000 needs to be previously connected to the app.
Page 32 1. With correction type RTK NTRIP, press the button Create 2. Fill in Server Name, URL or IP address, Port and User Credentials 3. Press Save; the new server will appear in the dropdown list from that moment onwards 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 33: Setting Up The Active Coordinate System
The GS app is able to apply these transformations in real-time to every recorded position, resulting in an accurate coordinate calculation for each finding, provided the selection of coordinate system (and geodetic datum) was correct. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 34 Figure 31: Getting mountpoints and setting the right geodetic datum on a RTK server. 5.6.2.2 EPSG local coordinate system 1. Select Projection Type: Country Specific 2. Select your Country from the pop-up list 3. Select the Coordinate System from the pop-up list 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 35 OIGP’s Geomatic Committee. It is neither created nor maintained by Proceq. The selection of the right EPSG code and verification of its suitability in terms of accuracy in the job area is sole responsibility of the user.
Page 36 The local knowledge about the combination of EPGS code with geoid and/or local grid file from the EPSG repository, as well as the verification of suitability in terms of accuracy in the job area remains sole responsibility of the user. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 37: Collecting Data With Gs9000
6 Collecting data with GS9000 6.1 Creating a new job The first step before collecting any data with the GS9000 is to create a new job. To do so; 1. Press on the button Create New for a quick job creation, or 2.
Page 38: Data Management
Whether in data collection or review time, the interface presented to the user consists of four main elements: 1. Data visualization area 2. Function buttons 3. Settings menu 4. Status Figure 37: Main elements of the GS app user interface 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 39: Radargram View
There are two types of data representation: a. Migrated Hilbert data across a depth range (up to >1 m) b. Raw data at a fixed depth (± 1 cm) 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 40: Free Path View
The Free Path view shows a georeferenced C-scan or tomography as viewed from the top on a map (1), with real positions and dimensions, overlaying satellite imagery, and referenced to the user-selected coordinate system set in chapter 5.6.2 Setting up the active coordinate system. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 41 Migrated Hilbert data across a depth range (up to >1 m) b. Raw data at a fixed depth (± 1 cm) To change between data representations, see chapter 6.3.2.5 Advanced image processing settings 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 42: Common Gestures
The Free Path data collection mode requires real-time positioning from either GNSS or a terrestrial device like a robotic total station connected via cable during data acquisition. 6.2.4 Common gestures While using the app, the common gestures that apply to iPads are usable: https://support.apple.com/guide/ipad/learn-basic-gestures-ipad2c09c4d4/ipados 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 43: Changing The Visualized Depth Range
C-scan tomography. It is possible to: Move up and down the slider keeping the same thickness § § Move up and down each edge of the slider, effectively changing the thickness 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 44: Settings
Below is a list of Measuring presets: Field Options Description Measuring mode Free Path Scan Real-time georeferenced data collection Superline Scan Real-time non-georeferenced data collection Optimization mode Standard To be used in most cases at walking speed 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 45: Image Processing Settings
Due to this, it is highly recommended to favour a wired connection over a wireless connection between iPad Pro and GS9000. For more information, please see chapter 4.7.1 Connecting iPad to GS9000 via USB cable 6.3.2 Image processing settings...
Page 46 Figure 46: Increasing Linear and Time Gain compensation on the C-scan For GS9000, the Gains are separated for C-scan (tomography) and B-scan (radargram), should the user want to highlight e.g. deep objects in the radargram, without affecting the image balance of the tomography.
Page 47 Water - ice - fresh 3.5 - 4 Water - ice - salt 4 - 8 Wood - dry 2 - 5 For precise on-site calibration, see 6.4 Calibrating velocity for precise depth calculations 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 48: Display Settings
Seismic White-black The slider below increases or decreases the contrast Black-white for the selected palette. Warm / Cool Measured path On / Off Shows or hides the GPS path on Free Path 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 49: Object Libraries
1. Find a metallic object displaying a clear hyperbolic reflection 2. Tap on the Dielectric constant field and then on the hyperbolic reflection on the radagram– a white hyperbola will overlay on top of the raw data 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 50: By Known Depth
Both tomography (top) and radargram (bottom) get populated from left to right as one measures. Both view are synchronized, so if the user zooms in horizontally, both views zoom in regardless of which one was the gesture applied on. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 51: Choosing The Displayed Data Channel
Figure 53: Example changing from channel 2 to channel 6 6.5.2 Rolling the cart back and forth When the GS9000 is rolled back, the distance measured by the encoder is applied negatively on the radargram, moving towards the left on top of data already collected. A yellow indicator represents the current position, so that the user can determine precisely when located on top of a buried object (e.g.
Page 52: Pausing, Stopping And Resuming
2. Ensure the desired accuracy level is achieved 3. Press the button Start and start moving 4. Both tomography and radargram will start populating live. Figure 56: Starting a Free Path job 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 53: Loading Satellite Imagery
1. Make sure the display setting Measured Path is on 2. Go to Pause or Stop mode – all inactive superlines are greyed out 3. Tap on the desired superline and it will get active. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 55: Interpreting Data On Site
Tagging consists of digitalizing the position, depth and category of an individual finding. Tagging with GS9000 can be done both while collecting data or afterwards while reviewing. 1. In any of the radargram views (Free Path or Superline), press & hold on the apex of the desired hyperbola 2.
Page 56: Deleting A Tag
3. A marker will appear at the current location on both radargram tomography, indicated with the text Mn To mark while reviewing: 1. Go to radargram view 2. Tap on the desired position 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 57: Placing Points Of Interest
Editing metadata on a tag. 7.4 Drawing linework Linework consists of digitalizing a manually drawn linear feature under a category Linework with GS9000 can be done in Free Path view, either while collecting data in pause mode, or while reviewing. 1. Press the button 2.
Page 58: Snapshots
To do so, the current job shall be in either pause mode, or in review mode. 1. Press the function button 2. Select the corresponding drawing tool from the markup toolbar from iOS: 3. Draw freestyle on top of the data 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 59: Object Visibility
Hide All will hide / unhide all objects of the same type b. The “Eye” icon allows to hide / unhide all objects of the same category Figure 59: Object Overview menu 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 60: Logbook
Photos These allow the user to add some additional metadata, that will be output when exporting a report. See Error! Reference source not found. Error! Reference source not found. for more information. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 61: Data Management
5.3 Logging in with Screening Eagle ID. The Screening Eagle ID is independent of the GS9000 and the iPad used to collect data. Therefore, data from different sensors can be synchronized to the same personal cloud space, as long as the used Screening Eagle ID was the same.
Page 62: Preventing Data Synchronization On Site
2. Navigate to the GS space on the left-hand side ribbon 3. Select the checkbox of the measurement job to be archived 4. Press the button Archive Figure 67: Archiving a job in Workspace 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 63: Exporting And Sharing Data
“All Measurements” screen), the archived job will simply not be listed and will not sync anymore to the iPad. 8.2 Exporting and sharing data All GS9000 field jobs can be converted to some of the most popular interchange formats and shared online. From the GS field app: 1.
Page 64: Sharing Url
When HTML is the chosen export format, an automatic report will be generated with: § Details on used equipment and settings Findings (tags, points of interest, etc.), categorization § § Coordinates of each finding (when using Free Path mode) § The contents of the logbook 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 65: Sharing Cad / Gis Results
When KML is the chosen export format, a compressed folder is created, where: § Tags and points of interest are exported: o As Point objects of the selected category o At the true location, based on WGS84 coordinates § Linework are exported: 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 66: Exporting Raw Data To Seg-Y
Therefore, Proceq cannot guarantee the exact correspondence of data measured with the GS9000 (with higher accuracy) with the satellite imagery of Google Earth. 8.2.4 Exporting raw data to SEG-Y...
Page 67: Post-Processing In The Office
The optional software suite GPR Insights is integrated in Workspace and can provide advanced analysis tools for GS9000, as well as other GPR equipment in the market. For more detailed information on GPR Insights, please check the product website: https://www.screeningeagle.com/en/product/software/post-processing/gpr-slice-insights...
Page 68: Creating A New Gpr Insights Project With Gs9000 Data
1. Create a New Project 2. Select the option From Workspace from the dropdown menu: 3. In the new pop-up menu, select GS9000 as the sensor type (1) 4. Select the job type, Free Path or Superline (2) 5. From the auto-generated list of field jobs, check the box (3) to select the desired job to import 6.
Page 69 The processing time for the creation and initial preparation of the project involves large calculations and can vary depending on the size of the project. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 70: Technical Specification
Needs an active Internet connection on the iPad; depends on SSR service coverage / NTRIP in RTCM3 format Via NTRIP RTK or SSR corrections; the achieved accuracy is subject to atmospheric conditions, satellite geometry, observation time, etc.. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 71 The English version of the content remains the official version. All translated content should bear an appropriate notice to this effect. For safety and liability information, please download at www.screeningeagle.com/safety-and-liability Subject to change. Copyright © 2024 by Proceq SA, Schwerzenbach. All rights reserved. 5. July 2024 © Copyright 2024, PROCEQ SA...
Page 72 OUTH MERICA ROCEQ UROPE Proceq SAO Equipamentos de Mediçao Ltda. Ringstrasse 2 Rua Paes Leme 136 CH-8603 Schwerzenbach Pinheiros, Switzerland Sao Paulo SP 05424-010 Brasil +41 43 355 38 00 T +55 11 3083 3889 UROPE ROCEQ IDDLE Screening Eagle UK Limited...
