Summary of Contents for EAST OAK GFTP571

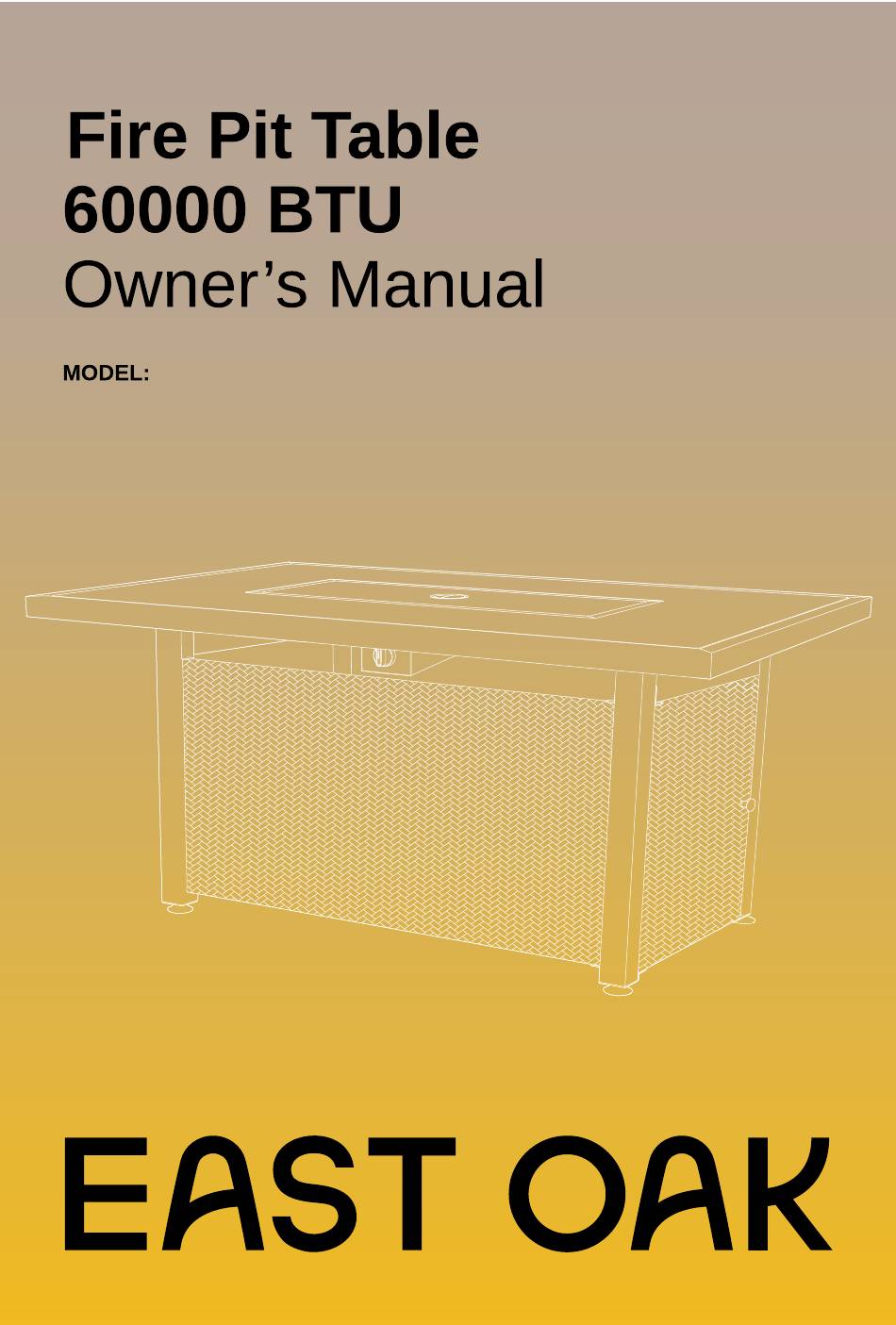

- Page 1 GFTP571 | GFTP572 | GFTP573...
- Page 4 Some pieces contain sharp edges, Which may cause personal injury or property damage. To prevent injury or damage, please wear protective gloves during assembly.
- Page 6 This product and fuels used to operate this product, and the product of combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and reproductive harm. When using the lava/glass rocks in the fire pit for the first time, you may hear popping sound and lava/glass rocks may bounce in the fire pit for the first 30 minutes.
- Page 7 To ensure the product can be used for many years, Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, unapproved modification or neglect of this product.
- Page 8 GFTP571,GFTP572,GFTP573 22.4in.(56.8cm)
- Page 9 Note: Plate (F) and Plate (J) can be used universally SCREW SIZE D×L=M5×12mm D×L=M6×16mm QUANTITY 2 Pieces 24 Pieces 1 Piece 1 Piece SPARE PARTS...
- Page 10 Step1: Insert panel( D) into the bracket at the bottom of panel(E) Step2: After passing the bracket(L) through the bolts of the panel(D), fasten bracket(L) to panel(E) with two screws(AA) Note: the hole in the frame(D) is facing inside, and the door handle is facing outside step2 step1...
- Page 11 Assemble the panels (F,J,H) as shown below and secure them together using 4 screws (BB). Holes Do not lock all the screws at first, and lock them after all the mounting holes are aligned. Rotate 90° when finished Assemble the panels (E) as shown below Assemble the panels (E) as shown below and secure them together using 4 screws (BB).
- Page 12 Secure the centerpiece with 4 screws (BB x4). Secure the bottom two screws first, then align the top two screws. step2 step1 Note:The gas tank tray must be installed in the nearest position to the door.
- Page 13 heat shield When the stove table is installed, turn it over and place the table...
- Page 14 125℉/51.7℃...
- Page 16 Keep in mind there may be a default shutdown time of 5 minutes before the burner can be re-ignited.
- Page 18 Min： Min： Min： Keep the unit away and clear from any combustible materials as illustration...
