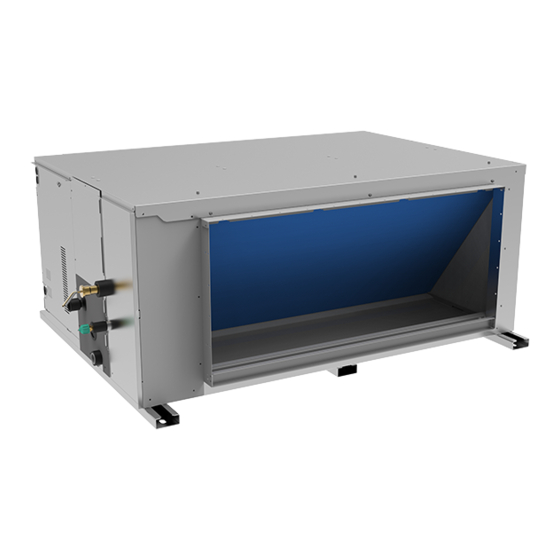

Sinclair SIDH-AI Series Engineering Data Book

Sinclair SIDH-AI Series Engineering Data Book

Full dc inverter systems, commercial air conditioners

Advertisement

Quick Links

FULL DC INVERTER SYSTEMS
ENGINEERING DATA BOOK
SIDH-XXXAI
C O M M E R C I A L A I R C O N D I T I O N E R S S D V 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIDH-AI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sinclair SIDH-AI Series

  • Page 1 FULL DC INVERTER SYSTEMS ENGINEERING DATA BOOK SIDH-XXXAI C O M M E R C I A L A I R C O N D I T I O N E R S S D V 6...
  • Page 2: Table Of Contents

    High Static Pressure Duct High Static Pressure Duct 1 Specifications ..................... 2 2 Dimensions ....................4 3 Unit Placement ..................6 4 Piping Diagrams ..................8 5 Wiring Diagrams ..................9 6 Capacity Tables..................11 7 Electrical Characteristics ................12 8 Sound Levels ....................
  • Page 3: Specifications

    High Static Pressure Duct 1 Specifications SIDH-200AI / SIDH-224AI / SIDH-280AI Model name SIDH-200AI SIDH-224AI SIDH-280AI SIDH-335AI Power supply 1-phase, 220-240V, 50Hz 20.0 22.4 28.0 33.5 Capacity Cooling kBut/h 68.3 76.5 95.6 114.3 Input 22.5 25.0 31.5 38.0 Capacity Heating kBut/h 76.8 85.3...
  • Page 4 High Static Pressure Duct SIDH-400AI/ SIDH-450AI / SIDH-560AI Model name SIDH-400AI SIDH-450AI SIDH-560AI Power supply 1-phase, 220-240V, 50Hz 40.0 45.0 56.0 Capacity 136.5 153.6 191.1 Cooling kBut/h Input 1850 1850 2030 45.0 56.0 63.0 Capacity 153.6 191.1 215.0 Heating kBut/h Input 1850 1850...
  • Page 5: Dimensions

    High Static Pressure Duct 2 Dimensions SIDH-200AI / SIDH-224AI / SIDH-280AI/ SIDH-335AI Dimensions (unit: mm) Capacity (kW) 20.0≤kW≤22.4 5/8-18 UNF 22.4<kW≤33.5 3/4-16 UNF...
  • Page 6 High Static Pressure Duct SIDH-400AI / SIDH-450AI / SIDH-560AI Dimensions (unit: mm) Capacity (kW) 33.5<kW≤40.0 3/4-16 UNF 40.0<kW≤56.0 7/8-14 UNF...
  • Page 7: Unit Placement

    High Static Pressure Duct 3 Unit Placement 3.1 Placement Considerations Unit placement should take account of the following considerations:  Units should not be installed in the following locations:  Where exposure to direct radiation from a high-temperature heat source or to interference from a source of electromagnetic radiation may occur.
  • Page 8 High Static Pressure Duct 3.2 Space Requirements SIDH-200AI / SIDH-224AI / SIDH-280AI SIDH-335AI / SIDH-400AI/ SIDH-450AI / SIDH-560AI High Static Pressure Duct space requirements (unit: mm) Bottom view (Unit: mm) Wall ≥500mm Maintenance space Access hole Electric control assembly ≥600mm Maintenance space Side view Air outlet...
  • Page 9: Piping Diagrams

    High Static Pressure Duct 4 Piping Diagrams Gas side Liquid side Heat exchanger Legend Inlet Air Temp. Sensor Liquid Pipe Temp. Sensor Middle Pipe Temp. Sensor Gas Pipe Temp. Sensor Electronic expansion valve Fan motor...
  • Page 10: Wiring Diagrams

    High Static Pressure Duct 5 Wiring Diagrams SIDH-200AI / SIDH-224AI / SIDH-280AI SIDH-335AI / SIDH-400AI/ SIDH-450AI / SIDH-560AI...
  • Page 11 High Static Pressure Duct Legend Code Name Code Name XS XP connectors Inlet Air Temp. Sensor Steam pipe temperature sensor* Gas Pipe Temp. Sensor CS-SW Water level switch Fresh air inlet temperature sensor* Electronic expansion valve ALARM Alarm output Anion Sterilization module DC Fan motor Liquid Pipe Temp.
  • Page 12: Capacity Tables

    High Static Pressure Duct 6 Capacity Tables 6.1 Cooling Capacity Table High Static Pressure Duct cooling capacity Indoor air temperature (°C WB/DB) 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Model SIDH-200AI 17.7 16.1 18.9 16.5 19.8 16.8 20.0 16.3 20.2 15.8 20.8 15.1...
  • Page 13: Electrical Characteristics

    High Static Pressure Duct 7 Electrical Characteristics High Static Pressure Duct electrical characteristics Power supply Indoor Fan Motor Model Volts Rated power Min. volts Max. volts output (W) SIDH-200AI 220-240 8.19 6.55 SIDH-224AI 220-240 8.19 6.55 SIDH-280AI 220-240 8.19 6.55 SIDH-335AI 220-240 8.31...
  • Page 14: Sound Levels

    High Static Pressure Duct 8 Sound Levels 8.1 Overall High Static Pressure Duct sound pressure level High Static Pressure Duct sound pressure levels measurement Sound pressure levels dB(A) Model name SIDH-200AI SIDH-224AI SIDH-280AI SIDH-335AI SIDH-400AI SIDH-450AI SIDH-560AI Notes: Sound pressure levels are measured 1.4m below the unit in an anechoic chamber.
  • Page 15 High Static Pressure Duct SIDH-280AI octave band levels NR-70 NR-60 NR-50 NR-40 NR-30 NR-20 NR-10 NR-0 31.5 63 125 250 500 1000 2000 4000 8000 Octave band center frequency (Hz) SIDH-335AI octave band levels SIDH-400AI octave band levels NR-70 NR-70 NR-60 NR-60 NR-50...
  • Page 16: Fan Performance

    High Static Pressure Duct 9 Fan Performance 9.1 How to switch between Constant Airflow mode and Constant Speed mode ①In the main interface, press " " +" " for 3 seconds at the same time, and the main interface will display "CC". Press the "▲" and "▼" to select the indoor unit ("n00-n63"...
  • Page 17 High Static Pressure Duct SIDH-280AI SIDH-335AI SIDH-400AI SIDH-450AI SIDH-560AI...
  • Page 18 High Static Pressure Duct 9.3 Constant Speed mode 9.3.1 Set external static pressure parameters ①In the main interface, press " " +" " for 3 seconds at the same time, and the main interface will display "CC". Press the "▲" and "▼" to select the indoor unit ("n00-n63"...
  • Page 19 High Static Pressure Duct 9.3.2 Fan performance diagram SIDH-200AI SIDH-224AI SIDH-280AI SIDH-335AI SIDH-400AI...
  • Page 20 High Static Pressure Duct SIDH-450AI SIDH-560AI...
  • Page 24 United Kingdom www.sinclair-world.com This product was manufactured in China (Made in China). R E P R E S E N T A T I V E SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic T E C H N I C A L S U P P O R T SINCLAIR Global Group s.r.o.
