Summary of Contents for Bio Green PALMA TWIN

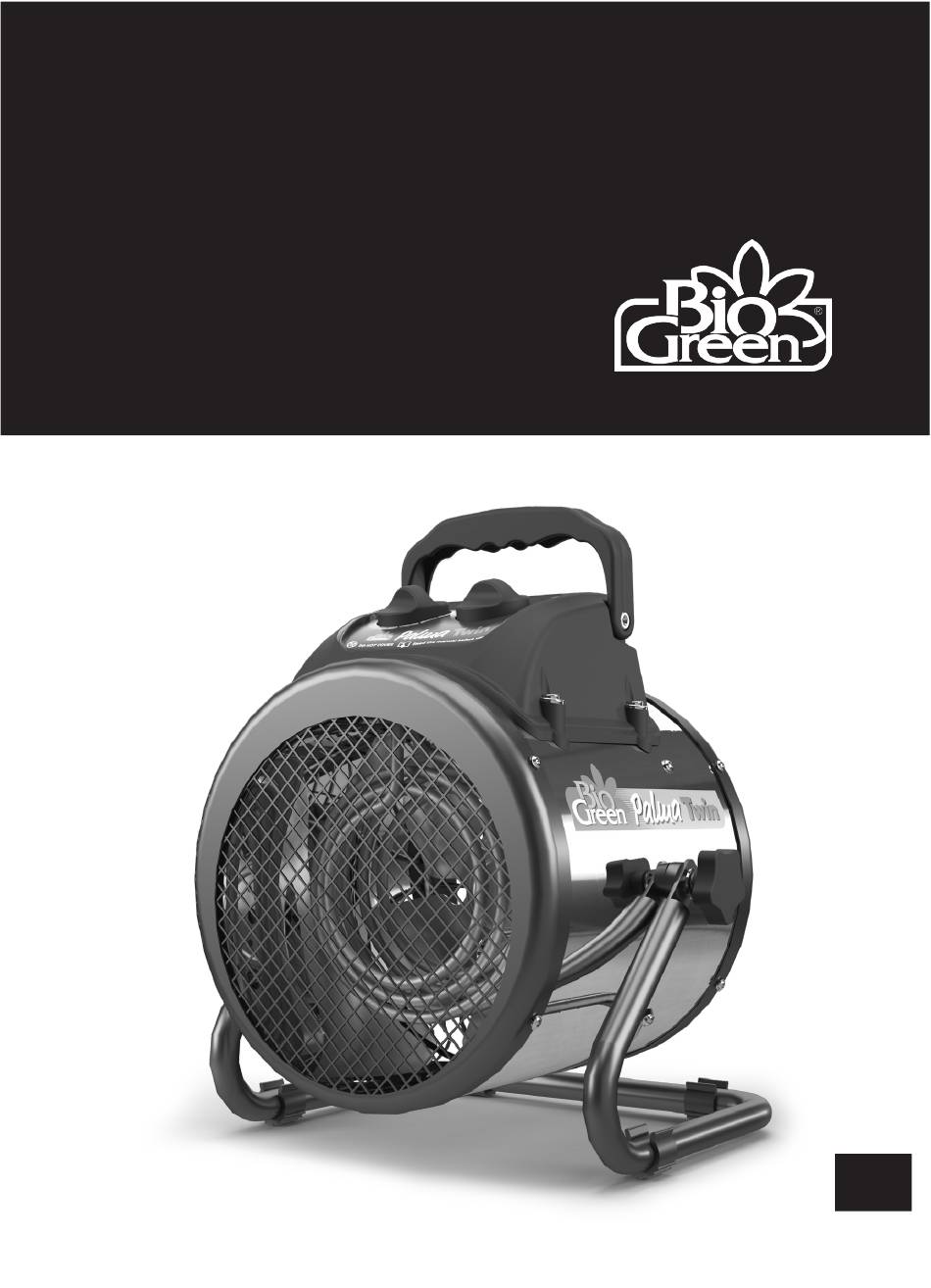

- Page 1 Air circulation heater PALMA 2.0 Installation and operating instructions Air circulation heater PALMA TWIN PAL T-US...
- Page 2 Palma Twin Operating Instructions Index Operating instructions …………………………………. 3 Read all instructions first before installing or using the heater! Do not drink any alcohol or take any drugs before or during the installation of the Heater and follow the safety instructions carefully.
-
Page 3: Technical Specifications
Palma Twin Operating Instructions Introduction This manual is intended for the Palma Twin - Manual. The Palma Twin -Manual is a recirculation fan heater. The Palma Twin - Manual are used for temperature control of greenhouses and conservatories. WARNING! To reduce the risk of fire, electric shock, or personal... - Page 4 Palma Twin Operating Instructions 1. Overviews 1.1 Overview Palma Twin Transport handle Operating lamp Thermostat switch Selector switch Air inlet opening Air outlet opening Heating coils...
-
Page 5: Important Instructions
Palma Twin Operating Instructions 2. IMPORTANT INSTRUCTIONS SAVE THESE INSTRUCTIONS Preventive measures and safety instructions 2.1 Definition of Terms Warning! A warning indicates the risk of damage to the user or the product if the user does not carry out the procedures with care. - Page 6 Palma Twin Operating Instructions Warning! A heater has hot and arcing or sparking parts inside. Never use the unit in a highly flammable environment (e.g. near heating gas, spray bottles, gasoline, paint or flammable liquids). Warning! Do not cover the heater.
- Page 7 Palma Twin Operating Instructions Warning! When assembling, make sure that the connection cable is not crushed or damaged by sharp edges. If such damage has resulted in open spots, the unit must not be reconnected to the mains for any reason.
- Page 8 Palma Twin Operating Instructions Warning! Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended! Warning! Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
- Page 9 Palma Twin Operating Instructions Please note! Only use extension cables that are compatible with the output and comply with the valid safety regulations of the unit. Connect to properly grounded outlets only. Please note! Make sure to disconnect the unit from the mains before and during Installation.
- Page 10 Warning! If possible, leave a free space of 1.5 metres in front of the outlet opening. Insert the plug (2.0) of the Palma Twin (1.0) directly into the mains socket (5.0). Warning! Never insert or remove the power plug with wet hands. When using a multiple socket or an extension cable please ensure that the maximum current carrying capacity is not exceeded.
- Page 11 4. Using the Palma Twin - Manual 4.1 General operation The Palma Twin recirculating air heater is equipped with a thermostat switch and a selector switch. With the selection switch, you can select one of 3 possible operating modes. These are "Recirculation", "750 W heat output"...
- Page 12 In this mode, there is NO heating. Manual: Plug the Palma Twin - Manual fan heater directly into the mains socket. The Palma Twin will now run in continuous operation. During the summer months, you can achieve a reduction in the temperature in the greenhouse by using the recirculation mode.
- Page 13 You can now regulate the temperature with the left-hand temperature switch. If you are using the Palma Twin without a digital temperature display, you can use a thermometer to determine the temperature in the room. If the temperature is too high or too low, you can adjust it by turning the left thermostat switch.
- Page 14 You can now regulate the temperature with the left-hand temperature switch. If you are using the Palma Twin without a digital temperature display, you can use a thermometer to determine the temperature in the room. If the temperature is too high or too low, you can adjust it by turning the left thermostat switch.
- Page 15 Palma Twin Operating Instructions 4.6 Safety features Temperature controlled circuit breaker: If the device overheats the temperature-controlled circuit breaker will switch the device off temporarily. To switch the device back on, turn the heater off for 5 to 10 minutes to cool down Another reason for the shutdown would be blockage of the intake or outlet opening.
-
Page 16: Cleaning, Maintenance, Environment And Disposal
Palma Twin Operating Instructions 5. Cleaning, maintenance, environment and disposal 5.1 Cleaning and maintenance Warning! Switch the device off before each cleaning and leave it to cool for approximately 30 minutes before beginning cleaning. Warning! Do not use any abrasive, caustic or cleaning materials. -
Page 17: Warranty And Limitations
Palma Twin Operating Instructions 1. Warranty and Limitations: 1.1. Company warrants solely to the original purchaser of the Products that for the Warranty Period (as defined below), the Products will be free from defects in materials and workmanship under normal use, and will conform to Company ’s published specifications of the Products. -
Page 18: Limitation Of Liability
Palma Twin Operating Instructions 1.9. All requests and notices under this Warranty shall be directed to: Bio Green USA Inc. 2881 Busse Road, Elk Grove Village, IL 60007 United States Email: info@biogreen-products.com 1.10. THE WARRANTY SET FORTH IN SECTION 1.1 IS MADE IN LIEU OF ALL OTHER WARRANTIES (WHETHER EXPRESS OR IMPLIED), RIGHTS OR CONDITIONS, AND CUSTOMER ACKNOWLEDGES THAT EXCEPT FOR SUCH LIMITED WARRANTY, THE PRODUCTS ARE PROVIDED “AS IS.”... - Page 19 Bio Green USA Inc. 2881 Busse Road Elk Grove Village, IL 60007 United States www.biogreen-products.com...
