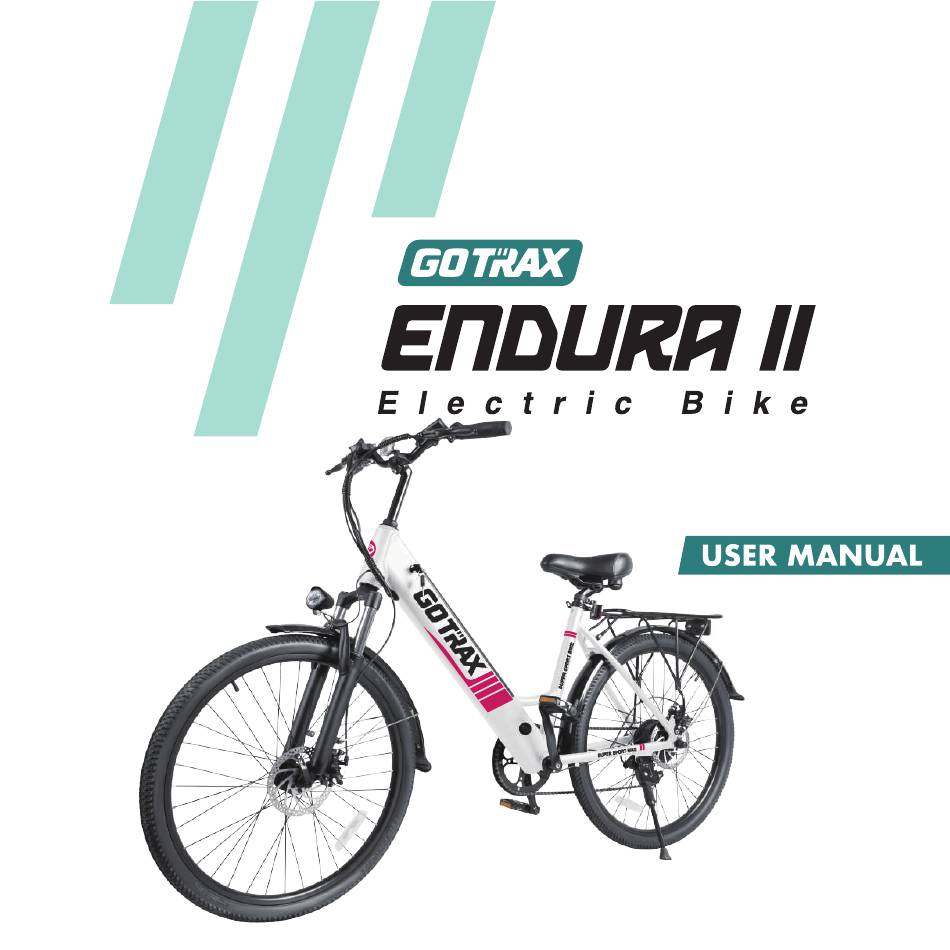

Gotrax ENDURA II User Manual
  1. Manuals
  2. Brands
  3. Gotrax Manuals
  4. Bicycle
  5. ENDURA II
  6. User manual
Gotrax ENDURA II User Manual

Gotrax ENDURA II User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENDURA II and is the answer not in the manual?

Questions and answers

Related Manuals for Gotrax ENDURA II

Summary of Contents for Gotrax ENDURA II

  • Page 3: Congratulations On Your Purchase

    Congratulations on your purchase! This user manual will help you assemble and operate your new electric bicycle. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER THE AGE OF 18: It’s very important that you get parental permission before riding your electric bicycle.
  • Page 4 WARNING: Lithium-ion Batteries and/or products that contain Lithium-ion Batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov...
  • Page 6 13. Never exceed the 264lbs (120 kg) maximum load rating. 14. The electric bike should never be used by children under the age of 16. 15. Maximum Speed - Your electric bike goes the maximum speed of 15.5mph. 16. Make note that additional insurance may be required to cover situations you encounter while riding an electric bike.
  • Page 7 Unpacking and Product Specs Remove all packaging material, then inspect each item for any accidental damage that may have occurred during shipping. You should find each of item in your box: ELECTRIC BIKE TOOLS: (2) LARGE WRENCH, BATTERY CHARGER (4) ALLEN WRENCHES, (1) SCREWDRIVER ENDURAII Model...
  • Page 8 Get to Know Your E-Bike LED Display Charger Port...

  • Page 9: Installing The Handlebar

    Installing the Handlebar Use tools to loosen screws from fasteners，Lnsert the handlebar into fork tube. Adjust the handlebar to the appropriate Angle, and lock the screw fixing the handlebar. (The handle must be centered and fixed.)
  • Page 10 Adjust the vertical Angle between the transverse handle and the front wheel, and lock the fixing rod screws. Use the tools to lock the rod retainer screws.
  • Page 11 Adjusting the Seat Tube Push the saddle down. Open the folder of the seat tube. Adjusting and rotate the seat. Finally lock the folder.

  • Page 12: Installing Pedals

    Installing Pedals Please check the L and R marks. Take the wrench from the tool box. R means it should be install in Tighten the nut counterclockwise. right side, L means it should be install in left side.
  • Page 13 Installing Front Fender and Headlight Use screw to lock the front Use screw to lock the left bracket fender and headlight. of the front fender. Use screw to lock the right bracket of the front fender.

  • Page 14: Installing The Front Wheel

    Installing the Front Wheel Fixed wheel front fork. The front fork is aligned to both ends of the bearing. The disc brake is on the left. Install the quick release and then Twist the wrench upward check tighten well. the operation of the wheel.

  • Page 15: Removing The Battery

    Removing the Battery Open Open the battery key. Take the battery out. After taking out the battery. Remove the battery.

  • Page 16: Charge The Battery

    Charge the Battery Step1 Step2 Take out the battery. You can take the battery to your company or home to charge it. Plug one end of the charge into Red light shows the battery is the battery and the other end charging green light is full.
  • Page 17 Charge Your E-Bike...
  • Page 19 1. Exterior Parameters Shell Material: ABS Working Temperature: -20 -60 with guaranteed mechanical performance. ON/OFF LIGHT LOW MED HIGH MODE Front View Side View Side View of the Supporter Ring...
  • Page 20 a. Start Press and hold for 2-3 seconds to power on/off. b. Battery Level Indicators When the battery is fully charged , 4 power indicators lights are on (full power status), and the indicator lights will turn off one by one according to the power gradually decreasing.
  • Page 21 c. Gear Setting Boot default 0 gear Gear indicator has no light indication which means the motor has no power output. After the power is turned on, press the button for the first time, the gear indicator LOW will light up, representing the first gear (low speed mode). Press the button for the second time, the gear indicator will switch from LOW to MED, representing the second gear (medium speed mode).
  • Page 22 d. Light Control In the power-on state, press and hold the button for 2-3 seconds to turn on the headlights. Press and hold the button again for 2-3 seconds to turn off the headlights. e. Turn on / off the battery power The battery is power off when receive.
  • Page 23 50/60Hz AC Power Supply. Be sure to keep the input plug in contact with the AC outlet. electric bike...
