Summary of Contents for Gotrax F2

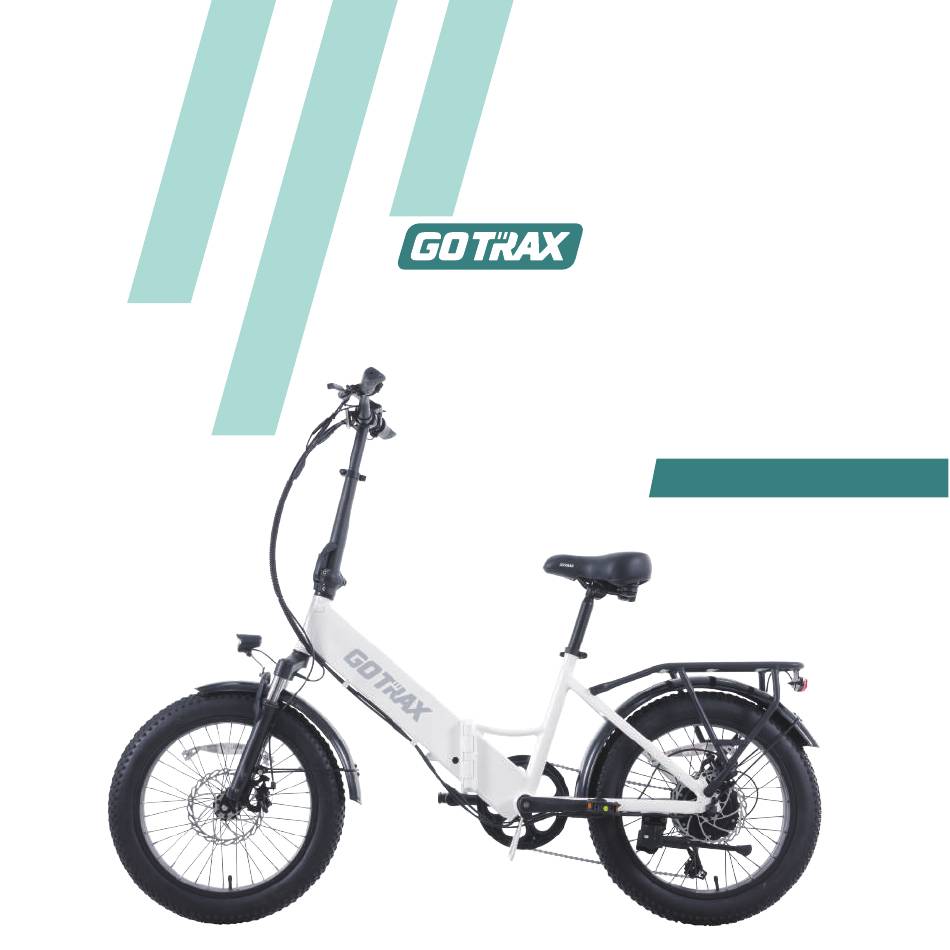

- Page 1 E L E C T R I C B I K E USER MANUAL...
- Page 3 Congratulations on your purchase! This user manual will help you assemble and operate your new electric bike. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your electric scooter.
-
Page 4: Table Of Contents
Contents Don’t Ride Until You Read This .............. Warning Message ..................Unpacking and Product Specs ............... Get to Know Your E-Bike ................ Handle Bar Installation and Folding ............Body Folding and Unfolding ..............Pedal Installtion and Folding ..............Saddle Installation and Adjustment ............Removing the Battery ................ -
Page 5: Don't Ride Until You Read This
Don’t Ride Until You Read This: ALWAYS wear a helmet when riding your electric bike. Make sure your electric bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the bike under the influence of drugs or alcohol. -
Page 6: Warning Message
Warning Message 1. Avoid water - The electric bike is not waterproof. The electronics may be damaged due to water and water damage is not covered by our warranty. Riding in wet conditions is also very dangerous and may result in injury. 2. - Page 7 15. Make note that additional insurance may be required to cover situations you encounter while riding an electric bike. It is recommended that you contact an insurance company or broker for advice and consultation. 16. To conserve electricity, use assist mode and avoid zero starting, frequent braking, driving against the wind, carrying heavy loads including other people and riding with insufficient air pressure.
- Page 8 ALWAYS WEAR A HELMETIT COULD SAVE YOUR LIFE! A properly fitting, CPSC approved， bicycle helmet should be worn at all times when riding your bicycle. In addition, if you are carrying a passenger (only use an approved child safety seat), and remember, the passenger must also be wearing a helmet.
- Page 9 following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help.
-
Page 10: Unpacking And Product Specs
Unpacking and Product Specs Remove all packaging material, then inspect each item for any accidental damage your box: ELECTRIC BIKE 13&15mm OPEN-END WRENCH BATTERY CHARGER ITEM SPECIFICATIONS Model Unfolded Dimensions 1680 x 680 x 1260 mm (66.1 x 26.7 x 49.6 in) Folded Dimensions 880 x 610 x 730 mm (34.6 x 24 x 28.7 in) Package Dimensions... -
Page 11: Get To Know Your E-Bike

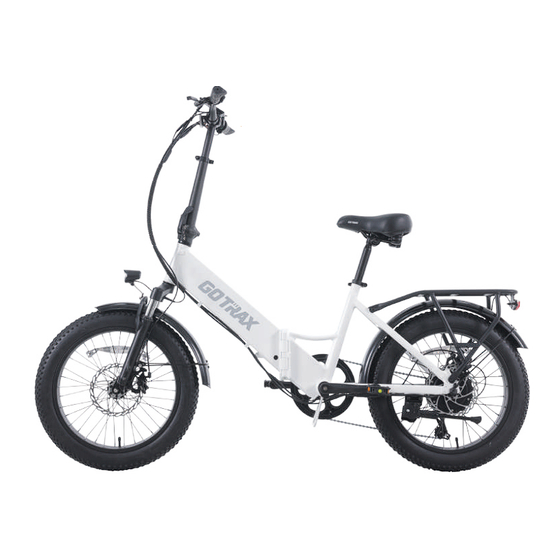

Get To Know Your E-Bike LCD Display Bell Reflector Stem Saddle Seat Post Front Light Removable Battery Suspension Front Fork Crankset Pedal Disc Brake Tire Wheel Chain Motor... -
Page 12: Handle Bar Installation And Folding
Handle Bar Installation and Folding Open the quick release clamp and insert the upper stem and handle bars and lock with the quick release clamp. (This can only be done when the tube is folded.) Note: The upper stem must be inserted past minimum insertion line. - Page 13 Lift up the stem and lock with the folding clamp. STEP 2 STEP 1 Make sure that the folding clamp is fastened Note: tightly. (When you press the folding clamp and hear a "click", it is locked in place.) When you want to open the folding clamp you need to push the safety buckle upwards and pull the folding clamp outwards at the same time to open it .
-
Page 14: Body Folding And Unfolding
Body Folding and Unfolding STEP 2 STEP 1 Press the button and pull the folding clamp outward to open it. Crank angle adjusted to 9 o 'clock. Fold the frame so that the front and rear wheels correspond to complete the fold. When unfolding, be sure to check whether the folding clamp is tightly fastened in place. -
Page 15: Pedal Installtion And Folding
Pedal Installation and Folding Prepare the pedal and wrench,and distinguish the left and right pedal according to ‘L’ and ‘R’. ‘R’ represents the right side, and turn clockwise to lock the right pedal. ‘L’ represents the left side, and turn counterclockwise to lock the left pedal. The pedal can be folded by pressing inward and lifting up. -
Page 16: Saddle Installation And Adjustment
Saddle Installation and Adjustment Open the quick release clamp, insert the seat tube, adjust to a suitable height and angle, and lock the quick release clamp. Lock the quick release clamp. The saddle tube must be inserted to the Note: minimum insertion line. -
Page 17: Removing The Battery
Removing the Battery STEP 2 STEP 1 Insert and turn the key counterclockwise to open the battery safety lock and pull out the key. Fold the frame and pull out the battery. -
Page 18: Charge Your E-Bike
Charge Your E-Bike You can also charge your battery installed in the bike using the exterior charging port. -
Page 19: Charge Your E-Bike: Method 2
Charge Your E-Bike: Method 2 Remove the battery, plug one end of the charger into the battery and the other end into the power supply. Red light shows the battery is charging and the green light means the battery is full. -
Page 20: Tire Inflation Instructions
Tire Inflation Instructions Tires and Tubes After assembling your bike, it will be necessary to inflate the tires. Check the sidewall of the tire for the correct tire pressure (PSI) and inflate tires accordingly with a MANUAL BICYCLE PUMP. Improper inflation is the biggest cause of tire failure. Due to the slightly porous nature of bicycle inner tubes, it is normal for your bike tires to lose pressure over time. - Page 21 Tire pressure is given either as maximum pressure or as a pressure range. How a tire performs under different terrain or weather conditions depends largely on tire pressure. Inflating the tire to near its maximum recommended pressure gives the lowest rolling resistance; but also produces the harshest ride. High pressures work best on smooth, dry pavement.
-
Page 22: Maintenance & Repair
Maintenance & Repair Correct routine maintenance of your new bike will ensure a longer life for your bike and a safer ride for you. Every time you ride your bike, its condition changes. The more you ride, the more frequently maintenance will be required. We recommend you spend a little time on regular maintenance tasks. - Page 23 Note: The frequency of maintenance should increase with use in wet or dusty conditions. Do not over lubricate-remove excess lubricant to prevent dirt build up. Never use a degreaser to lubricate your chain (WD-40T™) Schedule2 - Service Checklist NOTE: Many instructions for adjustments can be found in the assembly portion of this manual.
- Page 24 check all nuts and bolts are tight Every six months lubrication as per schedule 1 check all points as per monthly service check and replace brake pads, if required check chain for excess paly or wear lubrication as per schedule 1 Yearly NOTE: OWNERS ARE RESPONSIBLE FOR ALL MAINTENANCE AND SERVICE OF THE BICYCLE.
-
Page 25: Function Definition
Function Definition Power on/off: Press and hold the button for 2 seconds, the display lights up and power on. Press and hold the ‘ button for 2 seconds when powered on, the display screen goes out, and the power is turned off. It will automatically shut down after 10 minutes without operation. - Page 26 ERROR with an error code. Only when the error is eliminated can the error display interface be exited. When the error occurs, the electric bike will not be able to continue driving. Please contact GOTRAX after-sales team for assistance or ask professional maintenance personnel to troubleshoot.
- Page 27 Wheel diameter setting: st.1 represents the wheel diameter setting. Because adjusting the wheel diameter will result in inaccurate speed display and mileage display, this setting cannot be adjusted. Speed limit setting: st.2 means speed limit setting. The factory default value of maximum riding speed is 32KM/h (20MPH).
- Page 28 Exit setting: In the setting mode, press and hold the button for 2 seconds to confirm and save the current setting and exit the current setting. If no operation is performed within one minute, the meter will automatically exit the setting.
-
Page 29: Function Mode
Function Mode 1. Three Riding Modes: Electric Assisted Mode, Pedal-Assisted Mode, Bicycle Mode. 2. Throttle Assisted Mode: When you turn the bike on, the assist level will be at 0. Press the button to increase auxiliary levels 1-5. Press the throttle to reach the start motor and move the bike. -
Page 30: Battery Information
Battery Information Before using the charger locate the voltage selector switch (li-ion chargers only) on the back of the charger. Select either 115 volts or 230 volts depending on your country of residence. Using the wrong voltage setting will permanenty damage the charger and/or electrical components on the hybrid electric bicycle. -
Page 31: Precautions For Battery Protection
PRECAUTIONS FOR BATTERY PROTECTION 1. Do not place anything on the battery and charger when charging, otherwise the charger may overheat and cause serious damage. 2. Only use the charger supplied by the original factory to charge the battery, if you use a different charger your battery will be disqualified from warranty. -
Page 32: Troubleshooting Guidance
Troubleshooting Guidance When the E-bike electric control system fails, the display will show the error codes, and only when the fault is removed can you exit the fault display program. After the fault occurs, the E-bikes will not continue working. Troubleshooting tips Code meaning Troubleshooting clearing... -
Page 33: Warranty
Warranty Please contact our customer service team if you are experiencing problems or need more detailed information. support@gotrax.com US team after-sales email: canada@gotrax.com CA team after-sales email: 1. Users should operate in accordance with the product manual. In case of any... - Page 35 W W W . G O T R A X . C O M #RideGOTRAX...
- Page 36 (US) GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006 (CA) Tao Motor Canada Inc. 170 Bartor Road, Unit 1 North York, Ontario M9M 2W6, Canada.
Need help?
Do you have a question about the F2 and is the answer not in the manual?
Questions and answers

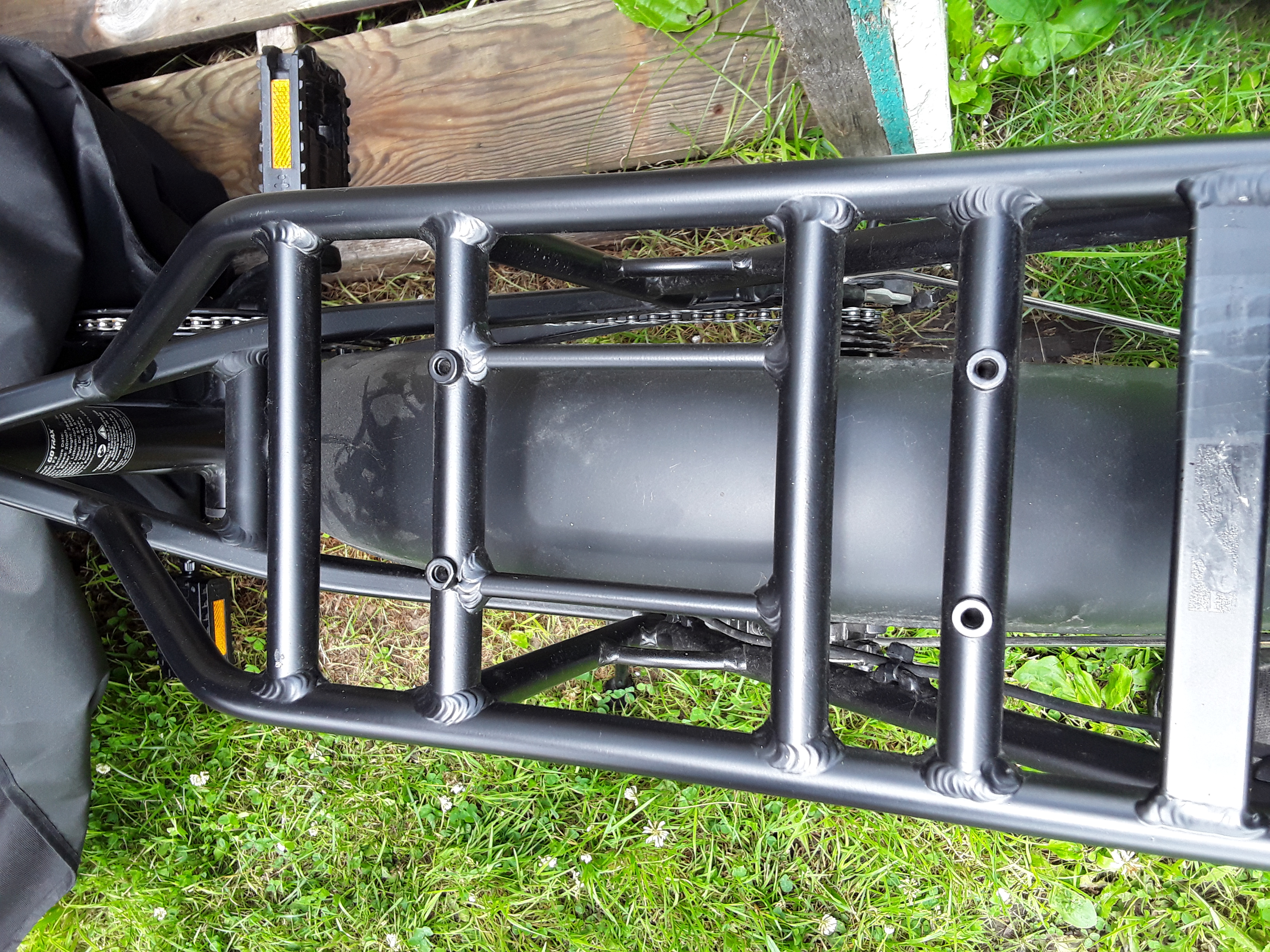

There are 4 screw-holes on the back rack behind the seat, is it metric or imperial ? What is the exact fit? II will be installing a small suitcase at that place. Thank you.
