MadJax 14-034 Manual

Part # 14-034

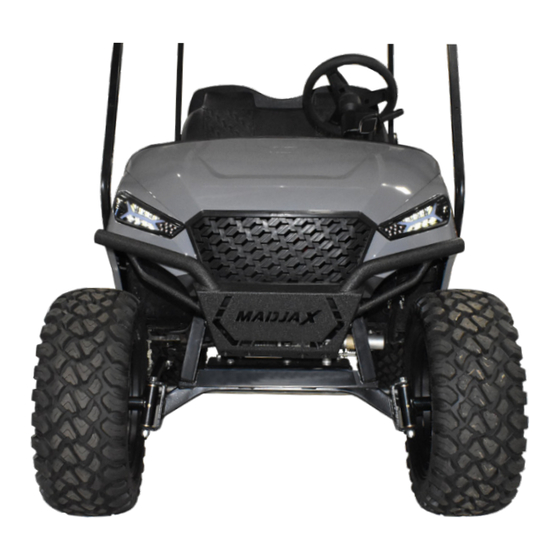

Storm Brush Gaurd
KIT CONTENTS
• Brush Guard
• Passenger & Driver Side
Mounting Brackets
• Passenger & Driver Side
Support Brackets
• Hardware Pack
MadJax recommends professional installation. If you choose to not have this product
installed by a professional, we highly recommend that you exercise caution, care, and
patience when installing this product.
STEP 1
A) Starting on the Pass side place the U-bolts around
the frame as shown.
B) Place the Pass Side Mounting Bracket to the
inside of the factory shock and secure to the U-bolts
using the provided M10 hardware. Note the Stiffener
Arm on the top. Use a 17mm socket to snug up the
bracket for readjustment later. Do NOT fully
tighten hardware.
Note: The Pass Side Bracket stiffener arm should
be up as shown.
STEP 2
A) On the Driver side place the U-bolts around the
frame as shown.
B) Attach the Driver Side Mounthing Bracket to the
U-bolts using the M10 hardware. Note the Stiffener
Arm on the bottom. Use a 17mm socket to snug up
the bracket for readjustment later. Do NOT fully
tighten hardware.
Note: Driver Side stiffener arm will be on the
bottom as shown.
TOOLS NEEDED
3/8 Rachet
5mm Hex Socket
Pass Support Brkt
17mm Socket
13mm Wrench
Level
Passenger Mount Brkt
(A)
(B)
(A)
Driver Mount Brkt
Driver Support Brkt
(B)
