MadJax CONVEX MIRROR 03-035 Installation Instructions

Download this manual

03-035

convex mirror

installation instructions

Tools Needed: (not provided)

Drill

#2 Phillips Head Screwdriver

10mm socket

10mm wrench

1/4'' drill bit

Madjax

recommends professional installation. If you choose to not have this product installed by a professional, we highly

recommend that you exercise caution, care, and patience when installing this product as it involves drilling holes into your

bodywork. The Madjax

Limited Warranty only covers defects in materials and workmanship, and does not cover damage due

to improper installation. If you are having difficulty installing this product, contact your Authorized Madjax

Find desired location on cart, and mark

with pen.

included:

Bracket

Hardware

For E-Z-GO

TXT/RXV

remove roof and retain

hardware.

Mirror

Dealer.

Golf Cart's,

factory

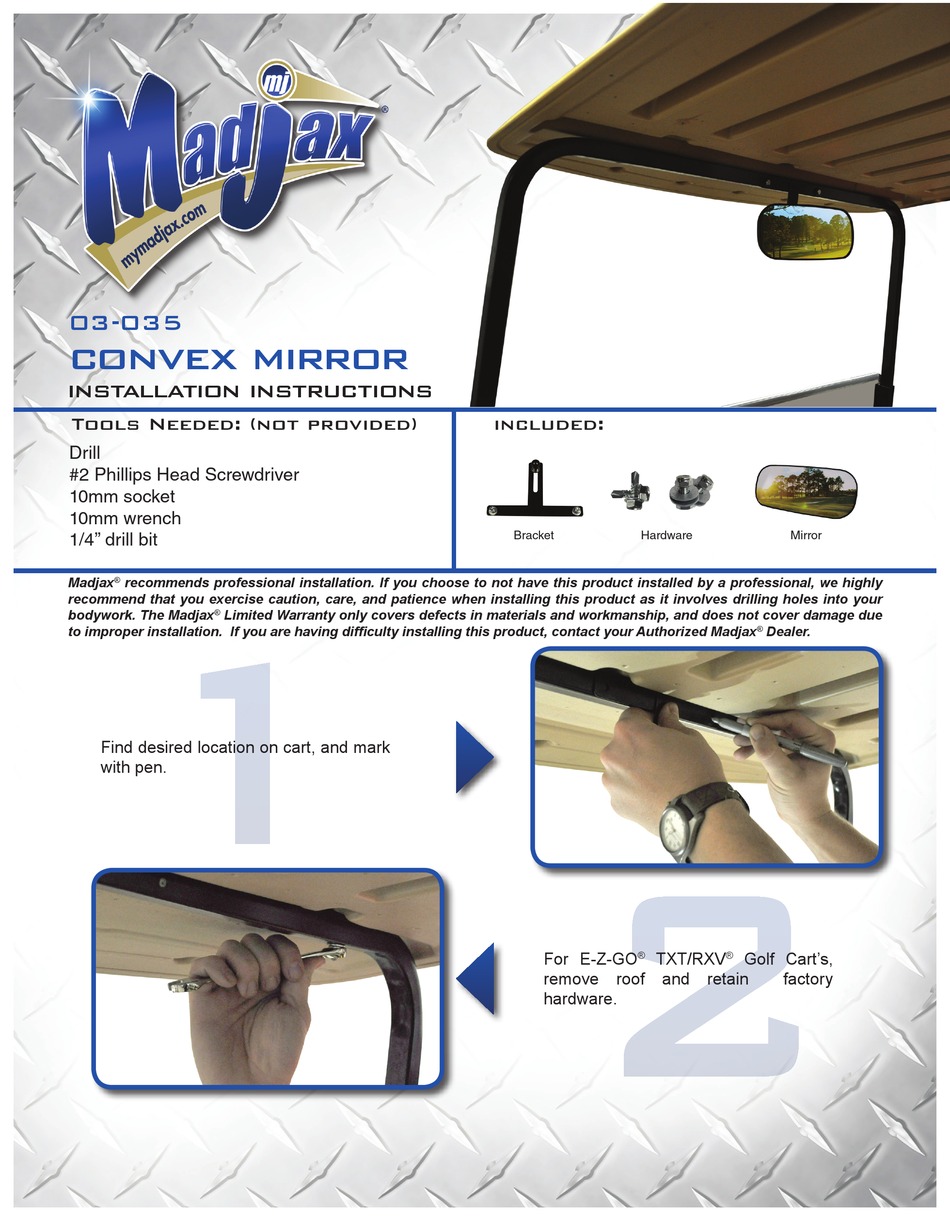

Page 1: Installation Instructions
The Madjax Limited Warranty only covers defects in materials and workmanship, and does not cover damage due ® to improper installation. If you are having difficulty installing this product, contact your Authorized Madjax Dealer. ® Find desired location on cart, and mark with pen.
Page 2 Using quarter inch drill bit, drill holes as shown. Club Car Precedent ® ® For Club Car Precedent drill holes into ® ® canopy as shown. Use provided nuts and bolts to attach bracket. Club Car ® ® For Club Car drill holes into canopy ®...
Page 3: Installation Complete
® this Madjax product is compatible. Madjax products are aftermarket parts and are not original equipment parts. Madjax is not connected to, affiliated with, sponsored by, or endorsed by either Textron Innovations, Inc., Ingersoll Rand, Inc., Yamaha Golf Cart Company, or any of their parent or subsidiary companies.
