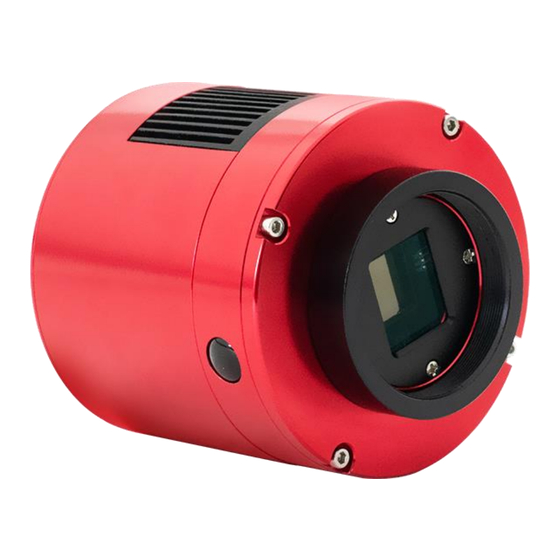

- Page 1 ASI533MC/MM Pro Product Manual Thank you for purchasing the ZWO ASI camera! Please read this manual carefully before using this product. The copyright and modification rights of this manual and other related materials belong to Suzhou ZWO Co., Ltd. (hereinafter: ZWO)
-
Page 2: Table Of Contents
Table of Contents 1. Product Introduction ........................1 2. Notice for Use ..........................3 3. Getting to Know Your Camera ...................... 4 3.1 External View ........................4 3.2 Camera Specifications ......................5 3.3 Quantum Efficiency & Read Noise ..................5 3.4 Analog to Digital Converter (ADC) .................. -
Page 3: Product Introduction
Entry-level Camera for Deep Space Photography The ASI533MM Pro utilizes the SONY back-illuminated IMX533CLK-D sensor and the ASI533MC Pro utilizes the SONY back-illuminated IMX533CQK-C sensor. With a 1-inch square format, it is particularly suitable for astrophotography needs. The ASI533 series can be regarded as an upgrade of the ASI183 series. - Page 4 One-inch Square Frame The IMX533 is a one-inch square frame CMOS image sensor with approximately 9M effective pixels at a pixel size of 3.76um. In ADC 14bit mode it can output 20 fps resolution with read noise as low as 1.0e, which is comparable to SCMOS or EMCCD sensors for users requiring high resolution and low noise.
-
Page 5: Notice For Use
regardless of gain or exposure length. 2. Notice for Use Before using the camera, please read this notice carefully. External power supplies are needed for all ASl cooled cameras. We recommend you use a 12V@3A~5A DC adapter (D5.5x2.1mm, center pole positive) or a lithium battery with 11-14V to power the camera. -
Page 6: Getting To Know Your Camera

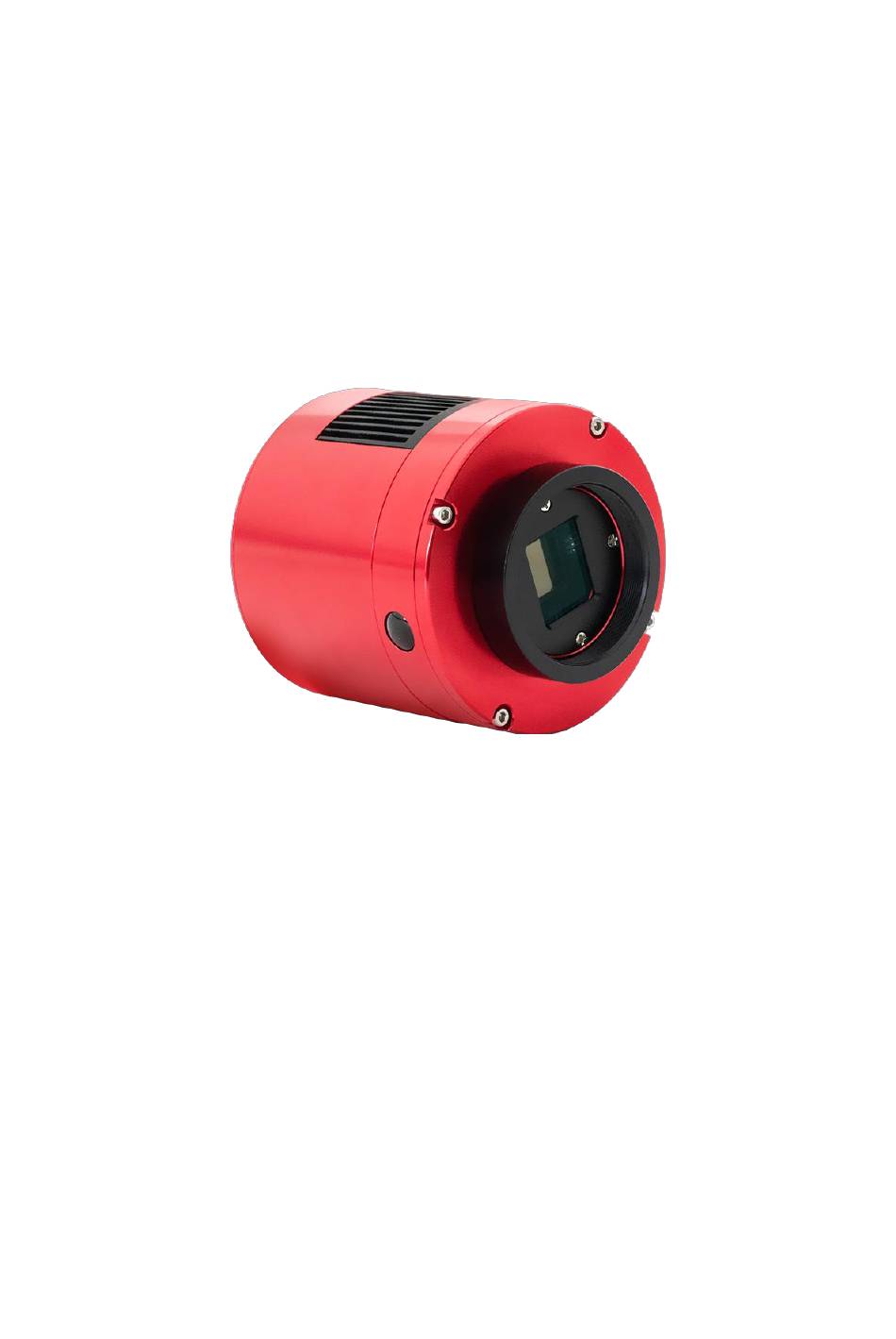

7. Cooling power supply DC port: size 5.5*2.1mm, inside positive and outside negative, 12V3A power supply is recommended 8. Ultra-quiet magnetic levitation fan: only runs when cooling is turned on The camera can be supported by the ZWO holder ring. There is a 1/4” screw port at the base of the ring. -
Page 7: Camera Specifications
Supported OS Windows, Linux & Mac OSX 3.3 Quantum Efficiency & Read Noise Quantum Efficiency (QE) According to our test results, the QE peak value of ASI533MM Pro is 91%. For ASI533MC Pro, the QE peak value is above 80%. - Page 8 ASI533MM Pro ASI533MC Pro Read Noise Low read noise, high dynamic range.
-
Page 9: Analog To Digital Converter (Adc)
3.4 Analog to Digital Converter (ADC) The ASI533MC/MM Pro camera has a built-in 14bit ADC. 12bit ADC mode output will be used for hardware Bin. The ASI533 also supports customized ROI partial readout mode for faster frame rate at small ROI resolution. The graph below shows the frame rate of ASI533 in 14bit mode for different resolutions: 14Bit ADC Resolution... -
Page 10: Two-Stage Tec Cooling
Intense cooling effectively suppresses the generation of dark current, and noise is minimal even for long exposures of hundreds of seconds. *The lower the temperature, the smaller the temperature difference. The following graph shows the dark current profile of the ASI533MC/MM Pro sensor between - 20°C and 30°C: ASI533MM Pro ASI533MC Pro... -
Page 11: Power Consumption
3.6 Power Consumption All ASI cameras have low power consumption, with a maximum power consumption of only 2.5W when not cooled. The graph below shows the cooling efficiency of the ASI533MC/MM Pro camera. 3.7 DDR Buffer USB 3.0 & 256MB DDR3 buffer ： The ASI533MC/MM Pro is equipped with a USB 3.0 transmission interface. - Page 12 The 516MB of DDR3 buffer ensures stable data transfer without frame loss during long exposures, and also reduces the hardware requirements for the computer used for photography.
-
Page 13: What's In The Box
4. What’s in the Box? It comes standard with 1 long USB cable and 2 short USB cables, which is convenient for different usage scenarios. For example, choose a long cable for computer guiding, choose a short cable for ASIAIR or EAF guiding. Spacer*4: 0.1mm 1pc;... -
Page 14: Structural Dimension Diagram
5. Structural Dimension Diagram... -
Page 15: Connection Methods
6. Connection Methods 6.1 Connecting to Nikon/Canon Lens 1. M43-T2 adapter 2. EOS-T2 adapter ring 3. 2” filter (optional) 4. 1.25” T mount 5. 1.25” filter (optional) 6. M42-1.25” adapter 7. T2 extender ring 11mm 8. M42-M48 extender 16.5mm 9. M42-M42 adapter 10. -
Page 16: Solutions For 55Mm Best Back Focus Distance
6.2 Solutions for 55mm best back focus distance 6.3 Connecting to external devices... -
Page 17: Warranty
7. Warranty 1. ZWO provides Users with a warranty period of 2 years for ZWO branded products. The warranty starts from the second day when the customer gets the product. 2. If a User encounters the following Dead on Arrival (DOA) and contacts ZWO within the... - Page 18 4) Disassembling, repairing by a third party, refurbishment of the Products (such as downloading erroneous firmware) without the written authorization of ZWO; or 5) The product system is modified, or the maintenance notice is lost or changed; or 6) Product quality problem caused by installation not following the requirements or instructions for the Products;...
-
Page 19: Servicing
RMA code for reference. ZWO will not accept any products having no RMA code that have been returned privately without ZWO written confirmation. 3. If a User purchases the ZWO Products from a ZWO agent, the User may contact the ZWO agent directly for the relevant after-sales service.
