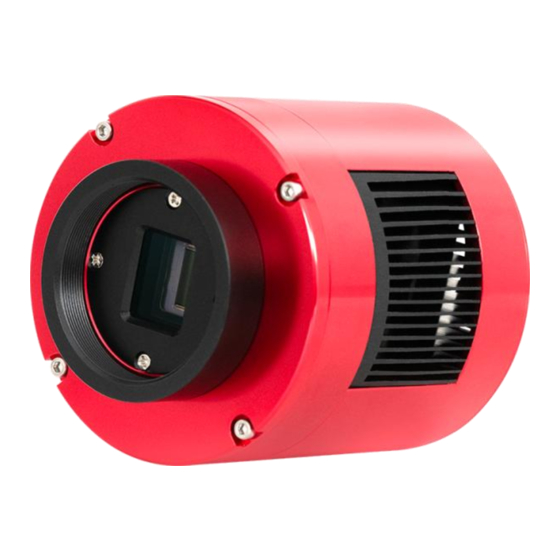

- Page 1 DSO Camera ASI585MC Pro Product Manual Thank you so much for purchasing ZWO ASI camera! Before using the product, please read this manual carefully. All materials related to this publication are subject to change without notice and its copyright totally belongs to...
-
Page 2: Table Of Contents
Table of contents 1 Product Introduction ........................1 2 Notice for Use ..........................4 3 Getting to Know Your Camera ......................5 3.1 External View .........................5 3.2 Camera Specifications ......................6 3.3 Quantum Efficiency & Read Noise ..................7 3.4 Analog to Digital Converter (ADC) ..................9 3.5 Two-stage TEC Cooling ...................... -
Page 3: Product Introduction
New DSO Camera with High Sensitivity ASI585MC Pro is a new ZWO deep sky camera based on the 4k SONY CMOS sensor with a 1/1.2" format and 2.9μm pixels. It has a super high sensitivity and large resolution of 3840*2160 (8.29MP in total). It also features high transmission speeds - In high speed mode, the fast frame rate can reach 47fps at full resolution! Being an entry-level DSO camera, it offers great advantages of high cost-effectiveness. - Page 4 The back-illuminated structure improves the camera's full well capacity. Even with unbinned 2.9μm pixels, ASI585MC Pro has a full well capacity of 47ke-, nearly 4 times of that of the last-generation sensor IMX485. A larger full well capacity gets the camera higher efficiency in collecting light, and can effectively restrain the...
- Page 5 No Amp Glow ASI585MC Pro exhibits extremely clean dark frames with zero amp glow! No matter how long the exposure and how high the gain value is, you can easily get a clean and smooth astro images!
-
Page 6: Notice For Use
2 Notice for Use Before using the camera, please read this manual carefully. External power supplies are needed for all ASl cooled cameras. We recommend you use a 12V@3A~5A DC adapter (D5.5x2.1mm, center pole positive) or a lithium battery with 11-14V to power the camera. You can also use ASIAlR to power the cameras. -
Page 7: Getting To Know Your Camera
7. DC power port: D5.5x2.1mm, center pole positive. 12V@3A power supply is recommended to use. 8. Ultra-quiet magnetic levitation fan: Only runs when cooling is turned on. The camera can be supported by the ZWO holder ring. There is a 1/4” screw interface at the base of the ring. -
Page 8: Camera Specifications
3.2 Camera Specifications Sensor Sony-IMX585 Sensor format Type 1/1.2 Diagonal 12.84mm Resolution 8.29MP (3840 x 2160) Pixel size 2.9μm Sensor size 11.136mm x 6.264mm Max frame rate 47fps Shutter Rolling shutter Exp range 32μs~2000s Read noise 0.9-12e (2.4e@15db gain) QE peak Full well capacity 47ke 12bit... -
Page 9: Quantum Efficiency & Read Noise
3.3 Quantum Efficiency & Read Noise Quantum Efficiency According to our test results, the QE peak value of ASI585MC Pro is 91%. Quantum Efficiency Relative Response... - Page 10 Read Noise The camera has a built-in HCG mode, which can effectively reduce read noise at high gain and keep the dynamic range at the same level as it does at low gain. At gain 252 and above, the HCG mode is automatically turned on; the dynamic range is close to 11 stops;...
-
Page 11: Analog To Digital Converter (Adc)
3.4 Analog to Digital Converter (ADC) ASI585MC Pro records in 12bit ADC and 10bit ADC. You can image at a faster frame rate if you use 10bit ADC (high speed mode). Or you may also set an ROI if you want even faster frame rates. -
Page 12: Power Consumption
512M DDR3 buffer: Can ensure a stable date transmission in the long exposure condition, minimizing frame drops and also reducing the requirements for the computer hardware. USB 3.0 Port: Provides 5Gb bandwidth to allow ASI585MC Pro to run at 47fps at 8.29MP full resolution (10bit, high speed mode). -
Page 13: What's In The Box
What’s in the Box? The 2m USB 3.0 cable and two 0.5m USB 2.0 cables can meet multiple requirements in different usage scenarios. For example, the 2m long cable can be used for guiding with a PC. The 0.5m short cables can be used to connect ASIAIR to the guide camera or EAF. -
Page 14: Structural Dimension Diagram
5 Structural Dimension Diagram... -
Page 15: Connection Methods
6 Connection Methods 6.1 Connecting to Nikon/Canon Lens 1. M43-T2 adapter (optional) 2. EOS-T2 adapter (optional) 3. 2” filter (optional) 4. 1.25” T-mount 5. 1.25” filter (optional) 6. M42-1.25” adapter 7. 11mm T2 extender 8. 16.5mm M42-M48 extender 9. T2-T2 adapter 10. -
Page 16: Solutions For 55Mm Best Back Focus Distance
6.2 Solutions for 55mm best back focus distance... -
Page 17: Connecting To External Devices
6.3 Connecting to external devices... -
Page 18: Warranty
In the event that ZWO is the actual shipper, ZWO will be responsible for providing the relevant return or replacement service, however, if the Products are directly sold or transported to the User by an agent of ZWO, the agent will be responsible for providing the relevant return or replacement service. - Page 19 5) The product system is modified, or the maintenance notice is lost or changed; or 6) Product quality problem caused by installation not following the requirements or instructions for the Products; or 7) Physical damage or failure of the Products caused by the force majeure (such as strong vibration or extrusion such as flood, fire, earthquake, or thunder stroke);...
-
Page 20: Servicing
Products, and shall provide the corresponding valid certificates, such as pictures or videos, etc. For the Products that need to be replaced after being confirmed by ZWO in writing, the User shall return the Products with the complete package, together with all accessories, manuals, etc., to the address designated by ZWO.
