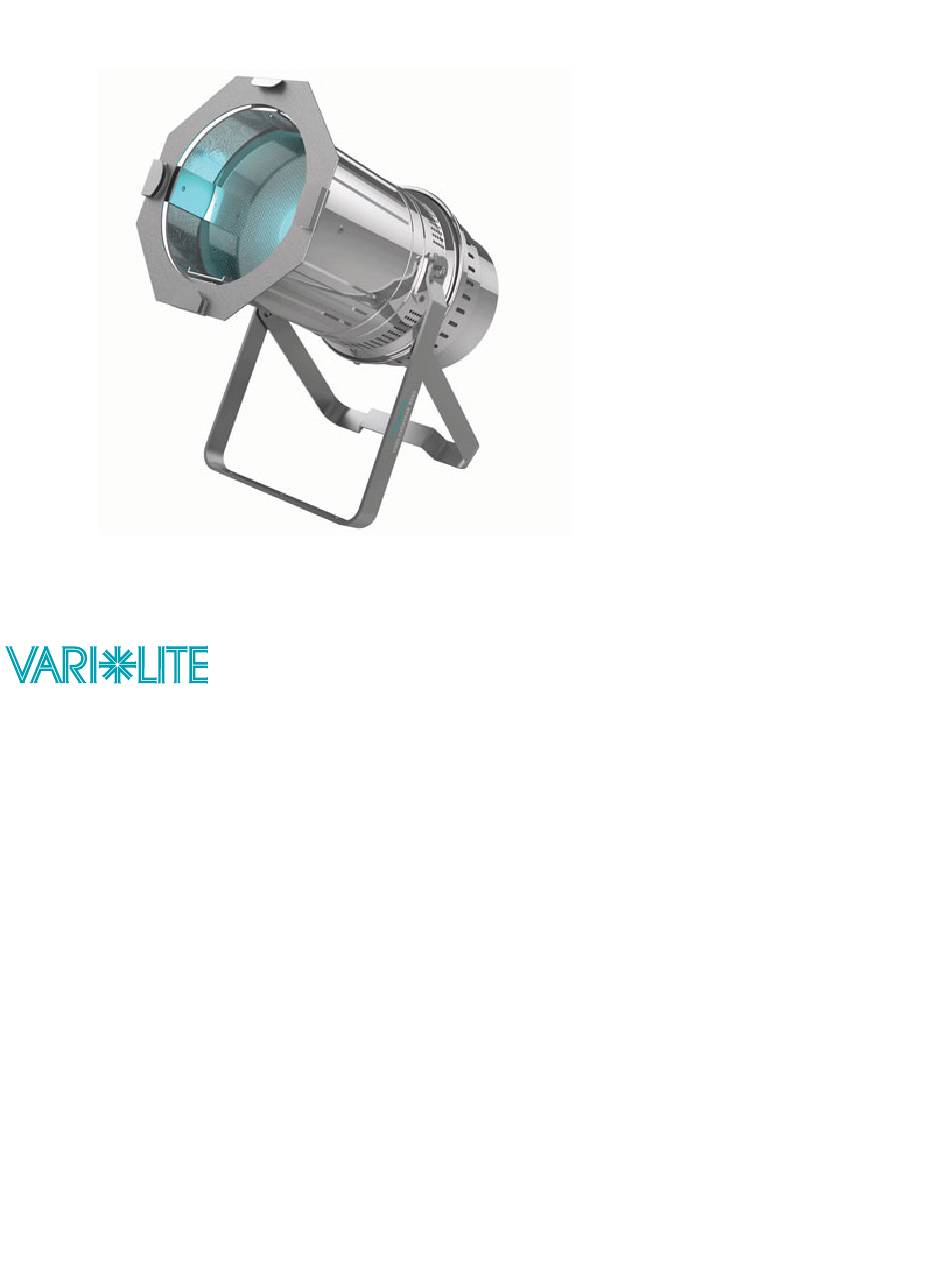

- Page 1 VL800 EVENTPAR RGBA user manual...
-
Page 2: Additional Documentation
This user manual covers the following model(s): • VL800 EVENTPAR RGBA BLACK (912400575002), WHITE (912400576322), BRONZE (912400576326), AND ALUMINIUM (912400576324) w w w.va r i - l i t e .c o m... -
Page 3: Safety Warnings And Notices
VL800 EVENTPAR RGBA user manual SAFETY WARNINGS AND NOTICES Read this user manual in full before attempting to install, operate or maintain the fi xture to which it relates. This user manual is intended to provide general guidance to such suitably qualifi ed personnel. Installation and opera- tion of the fi... - Page 4 VL800 EVENTPAR RGBA user manual CAUTION AGAINST DIRECT SUNLIGHT THROUGH FRONT LENS ASSEMBLY The design and nature of the front lens assembly in Vari-Lite LLC luminaires is to e ciently focus the light ener- gy from the luminaire’s lamp for maximum light output.
-
Page 5: Compliance Notice
VL800 EVENTPAR RGBA user manual COMPLIANCE NOTICE FCC DECLARATION OF CONFORMITY This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment. -
Page 6: How To Obtain Warranty Service
VL800 EVENTPAR RGBA user manual HOW TO OBTAIN WARRANTY SERVICE A copy of the Limited Warranty card was included in the shipping package for this product. To obtain warranty service, please contact customer service at 1-214-647-7880, or entertainment.service@ signify.com and request a Return Material Authorization (RMA) for warranty service. You will need to provide the model and serial number of the item being returned, a description of the problem or failure and the name of the registered user or organization. - Page 7 PAR cans but built with the DNA of Vari-Lite, the VL800 EVENTPAR will be VL800 EVENTPAR RGBA user manual available in both RGBA and warm white (WW) varieties, with output and color reminiscent of tungsten PAR 64 lamps.
-
Page 8: Installation And Setup
VL800 EVENTPAR RGBA user manual 2 InsTallaTIOn & seTuP POWER AND DATA CABLING REQUIREMENTS CONNECTING POWER This fixture requires standard AC power distribution from 120-240VAC, 50/60 Hz. Current required depends on the AC supply voltage and product model Depending on the application, the luminaire’s AC input cable may require a different connector. If required,... -
Page 9: Recommended Cable Types/Manufacturers
VL800 EVENTPAR RGBA user manual DATA CABLE - DMX512/RDM The luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When purchasing or constructing data cable, it is important that not only the correct cable type be used, but also quality cable to ensure a reliable DMX512 system. -
Page 10: Termination Connector
VL800 EVENTPAR RGBA user manual TAbLE 2. RECOMMENDED CAbLES TYPE PAIRS ZΩ* JACKET TEMP (°F) TEMP (°C) BELDEN CABLES 1215a IBm Type 6 Office cable 1269a PTFe 22 (solid) High Temp, Plenum cable 8102 ul2919 8132 ul2919 8162 ul2493 82729 PTFe... -
Page 11: Hanging The Fixture
VL800 EVENTPAR RGBA user manual HANGING THE FIXTURE The VL800 EVENTPAR WW can be hung horizontally or vertically from any structure designed to work with the type of load created by this luminaire. One mounting truss hook or other mounting hardware is required. Many compatible truss hooks are available from different manufacturers for your particular needs. -
Page 12: Connecting Data And Power
VL800 EVENTPAR RGBA user manual CONNECTING DATA AND POWER A maximum of 32 luminaires may be connected in any one DMX data link. NOTE: This maximum limit applies to the luminaire “daisy chain” only. Your system or console may require few- er luminaires on a single data link path. -
Page 13: Power-Up Procedure
VL800 EVENTPAR RGBA user manual POWERING UP POWER-UP PROCEDURE When AC power is applied, the luminaire immediately boots and performs a systems check. If any errors are found, they will be reported on the display. to power up: Step 1. -
Page 14: Transportation And Shipping Case Requirements
VL800 EVENTPAR RGBA user manual TRANSPORTING When shipping or transporting luminaires, Vari-Lite recommends that the luminaire(s) be sufficiently protected against any (including, but not limited to) shock, vibration, drops, jarring, exposure to the environment, etc. Failure to sufficiently protect any Vari-Lite luminaire during shipping or transportation will result in damage and void the luminaire’s warranty. -
Page 15: Dmx Operation
VL800 EVENTPAR RGBA user manual 3 OPeraTIOn DMX OPERATION DMX MAPS The tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. DMX CHANNEL... - Page 16 VL800 EVENTPAR RGBA user manual DMX CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION 16-BIT COLOR & 16-BIT 8-BIT MODE DECAY 0 - 255 access to preset colors 0 - 68 Channel OFF (rGBa enabled) 69 - 70 0 - Color OFF...
- Page 17 VL800 EVENTPAR RGBA user manual DMX CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION 16-BIT COLOR & 16-BIT 8-BIT MODE DECAY 125 - 126 28 - Cyan 127 - 128 29 - marine Blue 129 - 130 30 - soft Green 131 - 132...
-
Page 18: Menu Functions
ARROW buttons to choose or set desired setting and then touch ENTER to store. Touching the MENU button will return to the previous menu level. The VL800 EVENTPAR RGBA Display and Menu System provides local control for accessing the following fixture’s settings: •... - Page 19 VL800 EVENTPAR RGBA user manual TAbLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT address 000~512 (Default 001) leD Hours XXXXXX h (Default) color calibraiton off square law curve (Default) Dimming curve...
- Page 20 VL800 EVENTPAR RGBA user manual TAbLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT ch 1 - intensity XXX (value) Data ch 2 - intensity Fine XXX (value) …all functions 16-bit (Default)
-
Page 21: Menu System
VL800 EVENTPAR RGBA user manual MENU SYSTEM DISPLAY AND MENU SYSTEM OPERATION The Display Menu system consists of several categories. Use the Menu Button to access the menu. Then use the Up/Down arrow to navigate. When you reach the desired item, touch the Enter But- ton. -
Page 22: Reset Defaults
VL800 EVENTPAR RGBA user manual Dim Snap Dim Snap On allows for fastest output changes between levels but reduces smoothness dimming the LED engine. Dim Snap Off ensures all fades between output levels remains smooth and flicker free but limits fast, instant snaps between levels. Can also be set via the control channel. -
Page 23: Dmx Mode
VL800 EVENTPAR RGBA user manual DMX MODE 16-Bit 16-Bit Dimming and color control. See DMX map. 8-Bit 8-Bit Dimming and color control. See DMX map. Color Mode 8-Bit color control only . See DMX map. 16-Bit Decay 16-Bit Dimming and color control. With Dim Snap Off, has a longer rise and decay time for Dimming and Color. - Page 24 VL800 EVENTPAR RGBA user manual TEST ALL TEST Runs the self-test of all functions. To stop the test, press [MENU]. MANUAL PRESET PLAYBACK Power Up Preset Selects the preset (1 to 20) that will be played back after power up if enabled.
-
Page 25: Care And Maintenance
VL800 EVENTPAR RGBA user manual APPENDIX A Care anD maInTenanCe TROUBLESHOOTING The following are a few common problems that may occur during operation. the unit does not work; light and fan do not turn on • Check the connection of power and main fuse. -
Page 26: Fan Speed And Control
VL800 EVENTPAR RGBA user manual APPENDIX B Fan sPeeD anD COnTrOl ADDENDUM FAN SPEED AND CONTROL All Vari-Lite luminaires will be governed by the same fan speed vs. noise levels. vs. maximum power output rules as detailed below. The noise related to these levels will conform to the Noise Criteria levels, details of which are contained within this document. - Page 27 VL800 EVENTPAR RGBA user manual This page intentionally blank w w w.va r i - l i t e .c o m...
-
Page 28: Technical Support
The information presented in this document is not intended as any commercial o er and does not form part of any quotation or contract, unless otherwise agreed by Signify. Data subject to change. VL800 EVENTPAR RGBA usER mANuAL DOCumENT NumBER: VERsION DATE:...
