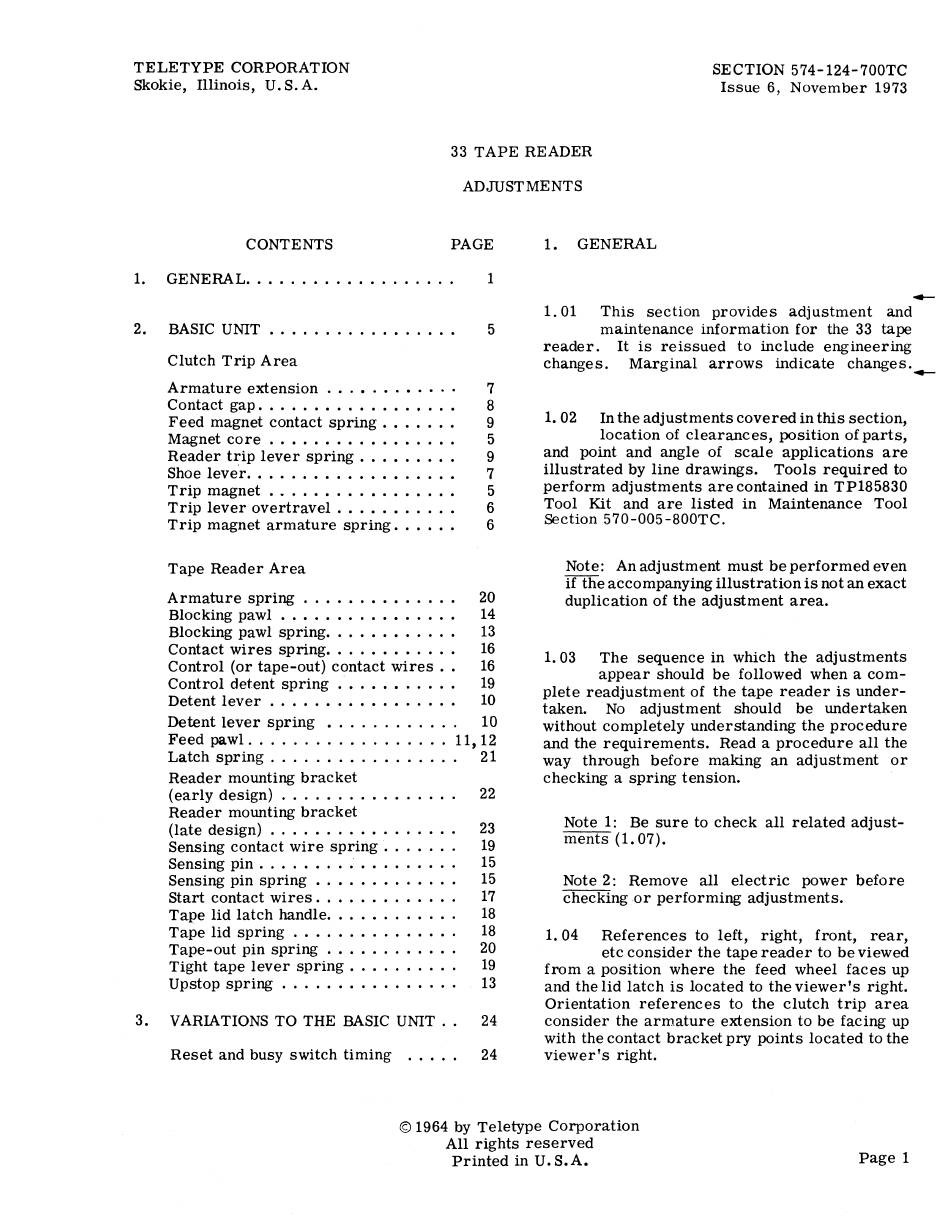

TELETYPE CORPORATION
Skokie, Illinois,
U.S. A.
SECTION 574-124-700TC
Issue 6, November 1973
33 TAPE READER
ADJUSTMENTS
CONTENTS
PAGE
1.
GENERAL. . . . . . . . . • . . . . . . . . .
1
2.
BASIC UNIT ...........•.....
Clutch Trip Area
Armature extension
............
Contact gap .•.•.•••.•..•.•..•
Feed magnet contact spring .•.•...
Magnet core .••....•.•.••.••.
Reader trip lever spring •.••..•.•
Shoe leve'r. • . • . • • • . • • • • • . . . . .
Trip magnet ...•.•...•.••....
Trip lever overtravel
•.••.......
Trip magnet armature
spring ...••.
Tape Reader Area
5
7
8
9
5
9
7
5
6
6
Armature
spring . . . . . . • • • . . . . .
20
Blocking pawl . . • . . . . . . . . . . • . .
14
Blocking pawl spring. . . . . . • • . . • .
13
Contact wires spring. • . . . . • . . . . .
16
Control (or tape-out) contact wires . .
16
Control detent spring . · • . . . . . . • • .
19
Detent lever . . . • . . • . • • . • . . . . .
10
Detent lever spring
• . . . . . . . . . . .
10
Feed pawl ..................
11, 12
Latch spring . . . . . . . . . . . . . . . . .
21
Reader mounting bracket
( early design) . . . . . . . . . . • . . . . .
22
Reader mounting bracket
(late design) . . . . . . . . . • . . . . . . .
23
Sensing contact wire spring . . . . . . .
19
Sensing pin ........
: . . . . . . . . .
15
Sensing pin spring • . • . . . . . . . . . .
15
Start contact wires . . • . . . . . . . . . .
17
Tape lid latch handle. . . . • . . . . . . .
18
Tape lid spring . • . . . . . . . . . . . . .
18
Tape-out pin spring . • . . . . . . . . . .
20
Tight tape lever spring . . . . . . . . . .
19
Upstop spring . . . . • . . . . . . . . . . .
13
3.
VARIATIONS TO THE BASIC UNIT. .
24
Reset and busy switch timing
. . . . .
24
1.
GENERAL
1. 01
This
section
provides
adjustment
and
maintenance
information for the 33 tape
reader.
It
is reissued
to include engineering
changes.
Marginal
arrows
indicate
changes.
1. 02
In the adjustments covered in this section,
location of clearances,
position of parts,
and point and angle of scale applications
are
illustrated
by line drawings.
Tools required to
perform adjustments
are contained in TP185830
Tool Kit and are listed in Maintenance
Tool
Section 570-005-S00TC.
Note: An adjustment must be performed even
if
the accompanying illustration
is not an exact
duplication of the adjustment area.
1. 03
The sequence in which the adjustments
appear should be followed when a com-
plete readjustment
of the tape reader is under-
taken.
No adjustment
should
be undertal,{en
without completely understanding
the procedure
and the requirements.
Read a procedure
all the
way through before making an adjustment
or
checking a spring tension.
Note 1: Be sure to check all related adjust-
ments
(1.
07).
Note 2: Remove all electric
power before
checking or performing adjustments.
1. 04
References
to left, right,
front,
rear,
etc consider the tape reader to be viewed
from a position where the feed wheel faces up
and the lid latch is located to the viewer's
right.
Orientation
references
to the clutch trip area
consider the armature
extension to be facing up
with the contact bracket pry points located to the
viewer's
right.
©
1964 by Teletype Corporation
All rights reserved
Printed in U.S.A.
Page 1
-
-
