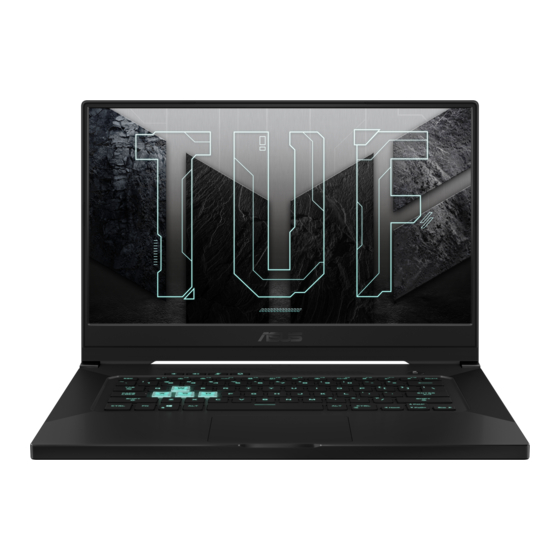

- Page 1 ASUS TUF Dash F15 (FX516P) series Service Guide...
- Page 2 LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property;...
- Page 3 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Keep liquids or moisture away from your Notebook PC before installing or removing any components. • Ensure to place your Notebook PC on a stable surface before installing or removing any components.
-
Page 4: Table Of Contents
Table of Contents ⚫ Service Overview ⚫ ASUS TUF Dash F15 (FX516P) series Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Repair Overview ⚫ Appropriate Tools ⚫ Keyparts and Related Parts ⚫ Disassembly steps : • BOTTOM CASE •... -
Page 5: Service Overview
Service Overview • Carefully read through this Service Guide for a look at various components of the device before performing any service and repairs. • To provide the best service, we have provided the below information for technicians from distributors and resellers to perform the complete device disassembly and assembly. -
Page 6: Asus Tuf Dash F15 (Fx516P) Series Overview
ASUS TUF Dash F15 (FX516P) series Overview Top View Bottom View ❶ Display panel ❶ Air vents ❷ Air vents ❷ Audio speakers ❸ Capital lock indicator ❸ Compartment cover ❹ Status indicators ❺ Power button ❻ Keyboard ❼ Touchpad ❶... -
Page 7: Components Top View
Components Top View LCD COVER MODULE KEYBOARD MODULE MIC FPC WIFI A2 ANTENNA SSD THERMAL PAD GU502DU RF CABLE TAPE KB BL TAPE FX516PR POWER SWITCH_BD MIC RUBBER SPEAKER WIFI A1 ANTENNA LCD BEZEL BATTERY EDP CABLE PW BD GND GASKET MAIN BOARD SPEAKER SPONGE EDP CABLE TAPE... -
Page 8: Components Bottom View
Components Bottom View LCD COVER MODULE BASE CASE FX516PM LCD COVER SPONGE A_A ADHESIVE 1*2PCS LCD COVER SPONGE C (Paste on LCD Adhesives) KEYBOARD MODULE LCD BEZEL LCD BEZEL ADHESIVE LCD Panel LCD BEZEL HINGE ADHESIVE*2PCS THERMAL MODULE ASSY POWER SWITCH_BD MAIN BOARD Back... -
Page 9: Repair Overview
Repair Overview This chapter describes disassembly and assembly (Assemble document please look up from the last page), please follow the information provided in this section to perform the complete disassembly procedure. Precautions: Before you perform any service or repair on the notebook, please pay special attention to the cautions prevent any damages to the notebook. 1. -
Page 10: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ASUS TUF Dash F15 (FX516P) series notebook. Screwdriver Alcohol 95% Glove Dust-free Cloth Please accord to different screw specification to choose different screwdriver and head. Plastic Blade NB LCD MYLAR *6pcs Use it to align panel position. -
Page 11: Bottom Case
BOTTOM CASE Disassembly Notice Step 1 : Remove screws *14pcs. Step 2 : Use plastic blade to pry the bottom case. Screws Spec Torque (kgf-cm) M2*8L (K) B-ZN,NY M2*10L (4.5,0.8) (K) #1 Start Please follow above arrow direction To avoid the bottom case hook, The screw is unable to remove with using plastic blade to pry bottom don't insert plastic blade in each... - Page 12 BOTTOM CASE Assembly Notice Please be sure to pull out adapter and disconnect the battery. Please follow the instruction to assemble the corresponding parts on the Bottom case. Please follow the yellow alignment mark and paste GASKET*2pcs in the red box. Paste CABLE FIX TAPE*1 pcs to prevent the GASKET fall off.
-
Page 13: Battery
BATTERY Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to IC damage. Step 1 : Disconnect the battery connector. Screws Spec Torque(kgf-cm) -
Page 14: Ssd
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove the screws *1pcs. Step 2 : Remove SSD at right side. Assembly Notice Step 3 : Remove ABSORBER on SSD. Please make sure to paste ABSORBER before Screws Spec Torque (kgf-cm) -
Page 15: Ddr
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Tear off the SODIMM ABSORBER MYLAR. Assembly Notice Step 2 : Unlock DDR. Step 3 : Remove DDR. Please make sure to paste FX516PM SODIMM ABSORBER MYLAR* 1 pcs on the front side of DDR, before assembling the DDR. -
Page 16: Wifi Card
WIFI CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1: Tear off the RF cable tape. Step 2: Disconnect the RF CABLE connector *2pcs. Step 3 : Remove the screw *1pcs. Step 4 : Remove WIFI CARD. Screws Spec Torque (kgf-cm) - Page 17 SPEAKER(with THERMALMODULE and MAINBOARD) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect (yellow mark) connector *6pcs. Screws Spec Torque (kgf-cm) Step 2: Lift the tape of both sides on the Thermal module and take out cables. SCREW M2*6L(4.6,0.8)(K)B-ZN,NY Step 3 : Remove screws *11pcs.
-
Page 18: Speaker(With Thermalmodule And Mainboard)
SPEAKER Assembly Notice Assembly Notice Please be sure to pull out adapter and disconnect the battery. Please follow the instruction to assemble the SPEAKER. Please paste SPEAKER SPONGE*1 pcs on the left Speaker as illustrated. Please follow the mark below to tidy cable. - Page 19 THERMAL MODULE & FAN Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Torque Step 1 : Please follow the reverse screws numbers to remove screws *8pcs. Screws Spec (kgf-cm) Step 2 : Remove the THERMAL MODULE from MB. Step 3 : Disconnect (yellow mark) connector *2 pcs.
- Page 20 MAIN BOARD Assembly Notice Please be sure to pull out adapter and disconnect the battery. Please follow the yellow mark to tidy RF CABLE FIX TAPE and cables . If FFC is damage during disassembly, please replace new one. Here are some samples of FFC damage: Put the Antenna cables above the hinge.
- Page 21 MAIN BOARD Mainboard connector placement LED/MB FFC VGA FAN EDP CABLE SPEAKER K/B FPC Supports using JIG BOARD to refresh F1 BIOS BL FPC CPU FAN TP/MB FFC BATTERY Back...
- Page 22 MAIN BOARD Materials on mainboard FX516PM MB TOP EMI GASKET Top side GU502DU MB WASHER MYLAR FX516PM MB TOP MYLAR FX516PM MB TOP EC MYLAR FX516PM MB TOP SPONGE FX516PC MB TOP MYLAR 2 CPU BRKT GA401QM GN20 GPU BKT ASSY GA503QE GPU BKT ASSY GA401QM GPU BACK ABSORBER FX516PM HDMI EMI GASKET...
- Page 23 MAIN BOARD Materials on mainboard GA401QM GN20-E3 GPU MYALR Bottom side G531GW X50 TI GPU MYLAR GA401QM GN20-E GPU MYALR Choose by Model FX516PC/PM FX516PC MB BOT KAPTON FX516PM MB BOT MYLAR FX516PC MB BOT UP MYLAR FX516PC MB BOT MYLAR GU502DU MB BOT EMI GASKET X516PM MB BOT EMI GASKET Back...
-
Page 24: Keyboard Module
KEYBOARD MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *2pcs. Torque (kgf-cm) Screws Spec Step 2 : Disconnect and remove FFC CABLE 4P 0.5MM L120MM BLK. Step 3 : Disconnect and remove FFC CABLE 6P 0.5MM,L100MM. SCREWM2*2L (6.2,0.55) (K)#1 Step 4 : Lift up TP EMI GASKET 2. -
Page 25: Lcd Bezel
LCD BEZEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove LCD BEZEL. Step 1-5, Due to some tapes behind the lower edge of bezel, please using plastic blade to teardown the bezel. Please follow the direction shown in the red arrow, to move plastic blade from left to right and peel the bezel away slowly. -
Page 26: Lcd Panel
LCD PANEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *8pcs, and remove hinges *2pcs. Screws Spec Torque (kgf-cm) Step 2 : Remove screws*2pcs,and remove hinge cap *2pcs. M2.5*2.3L(7.5,0.6)(K) #1 Step 3 : Pull out LCD adhesive *2pcs. -
Page 27: Lcd Cover
LCD COVER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Release TAPE and remove EDP cable. Assembly Notice Step 2 : Lift up MIC FPC EMI FABRIC, then disconnect and remove the MIC FPC. When replace a new LCD Cover: If the LCD is the following green model, please be sure to paste LCD COVER SPONGE C*2pcs on LCD ADHESIVE, and paste LCD COVER SPONGE A_A*3pcs on LCD COVER. - Page 28 LCD PANEL and LCD Cover Assembly Notice Please be sure to pull out adapter and disconnect the battery. When reuse the LCD PANEL: Please follow the green mark to tidy EDP cable and MIC FPC EMI FABRIC. Please use the fingertip to clean the residual glue on PANEL or BEZEL. Please note the EDP connector when assembling: MIC FPC EMI FABRIC Back...
