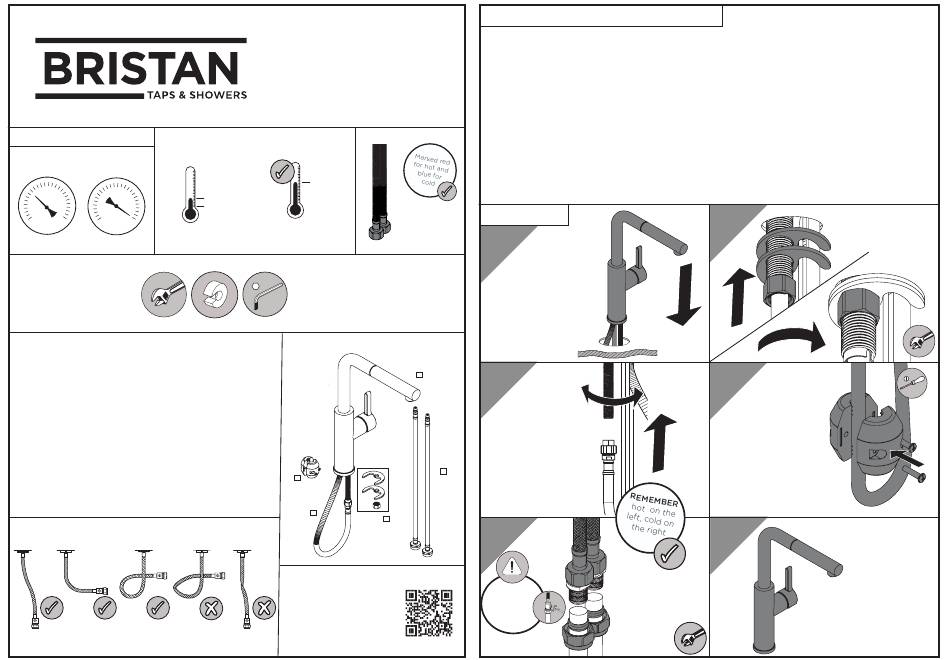

Masco Bristan PR PULLSNK C Installation Instructions & User Manual

Specifications
Cold Water Supply
Dynamic Water Pressure
Min: 1.5 bar Max: 5.0 bar
3.0
2.0 3.0
2.0
4.0
1.0 4.0
1.0
0.2 5.0
0.2 5.0
Pressure Pressure
BAR BAR
Min: 5°C Max: 25°C
Maximum Static Pressure: 10.0 bar
Tools You'll Need
Adjustable Spanner
Prior to Installation
All products manufactured and supplied by Bristan are safe provided
they are installed, used correctly and recieve regular maintenance in
accordance with these instructions.
This product has been tested to the Water Regulations Advisory
Scheme (WRAS) and satisfies the requirements of the Water Supply
(Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
We recommend isolation valves to be fitted to the inlet water supplies
to ensure ease of future maintenance.
Before installing these taps the water supply must be thoroughly
flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will invalidate the
guarantee.
Flexible Connecting Pipes
Curved
Slight 90°
round
bend angle
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: PR PULLSNK C (D1)
Inlet Water Temperature Inlet Connections
Hot Water Supply
60°C
25°C
5°C
60°C
Recommended
Pipe Cutter Hexagonal Key
Pack Contents
x1
x1
x1
Kinks
Twists
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.
Warning from Your Water Supplier
It could be a criminal offence to use this tap with a mains water supply drawn directly from the supply pipe (the supply
pipe is the one that brings the water supply into your home and is directly connected to the public water main).
This tap has an outlet on a flexible hose, which if immersed in water, could result in contaminated water being back drawn
into the pipework if the supply pressure dropped. To prevent contamination of drinking water in the premises and in the
water main, and to comply with the legal requirement of the UK plumbing regulations and byelaws, both hot and cold
water supplies to this tap must come from a storage cistern.
If the distributing pipes feeding this tap from the storage cistern have other outlets connected to them, the outlet of this
tap must be lower than any of those other outlets.
If installed as a tap which is used for drawing water for drinking, and the quality of the water from the storage cistern does
not meet the standards for drinking water, a separate tap supplied with wholesome water must be provided for drinking
purposes.
For further information, contact the Water Regulations Department of your Local Water Supplier (see WRAS website:
wras.co.uk) or contact the Water Regulations Advisory Scheme by email (info@wras.co.uk) or telephone: 0333 207 9030
1/2" BSP Installation
Flexible
Tails
1
Feed the pipes through
the sink hole and place
the tap body.
3
x1
Screw the hose to
the hollow threaded
fixing rod.
Handtighten only
x2
5
IMPORTANT
fit isolation
valves for
future
maintenance
2
4
Secure the hose weight
just before the U-bend,
on the
section of the hose
leading up to the mixed
pipe connector
6
Connect the
hot and cold
water
connections.
Olive
Compression
Nut
Push the washers
against the underside
of the surface and
tighten with the fixing
nut.
Switch on the water
supply and check
connections for any
leaks.
