ASME A112.18.1 / CSA B125.1
ICC/ANSI A117.1
Models/Modelos/Modèles
6590, 6595, 6591 & 6596
Series/Series/Seria
RSVP™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
TWO HANDLE WIDESPREAD LAVATORY FAUCETS
LLAVES DE LAVAMANOS EXTENDIDAS DE
DOS MANIJAS
ROBINETS À ENTRAXE LONG À DEUX POIGNÉES
POUR LAVABO
US. Pat. 3,645,493, 3,786,995, 4,523,604, 4,562,960, 4,593,430, 4,218,785, 4,577,653, 4,765,365
1
L
Advertisement
Related Manuals for Masco Brizo RSVP 6590
Summary of Contents for Masco Brizo RSVP 6590

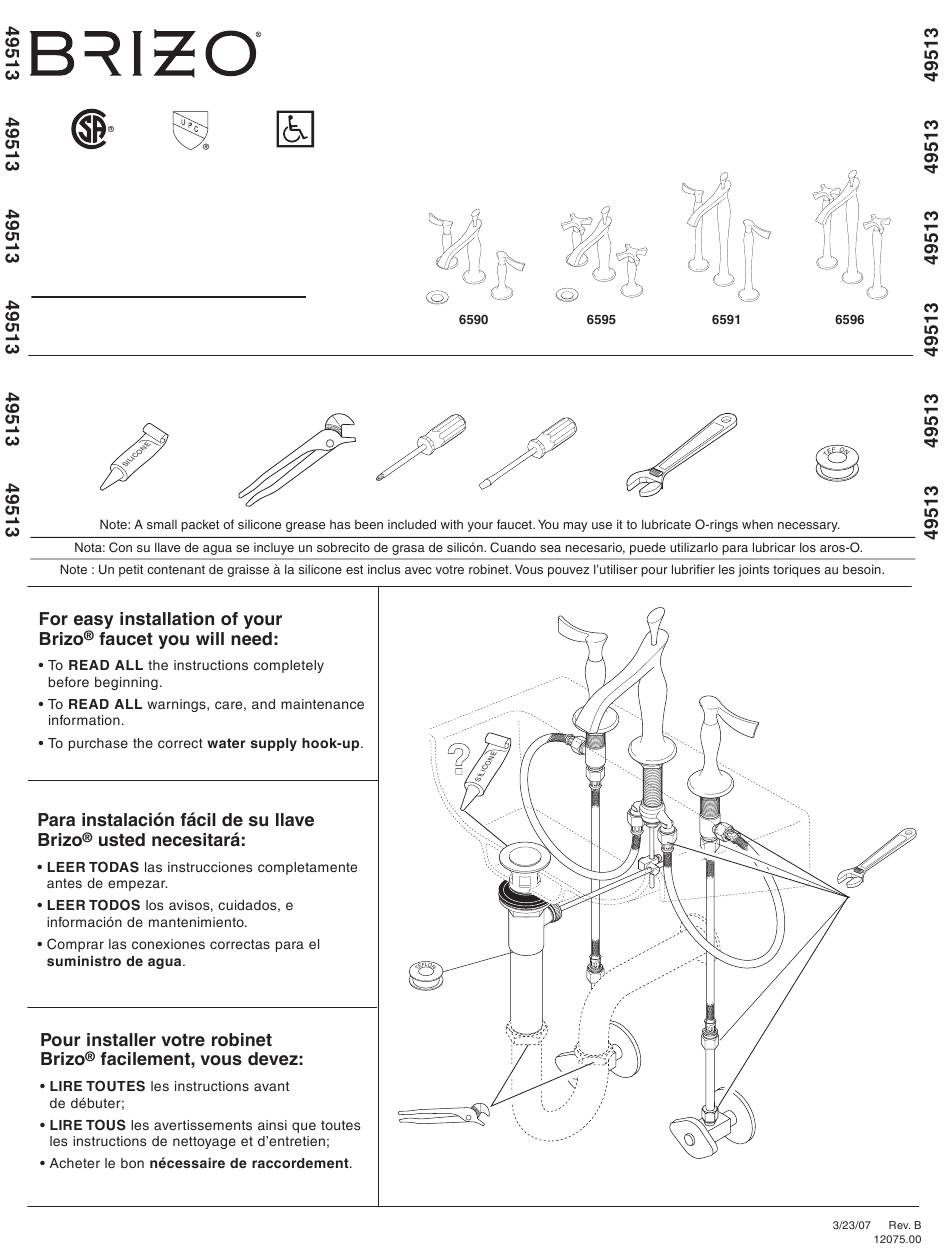

- Page 1 TWO HANDLE WIDESPREAD LAVATORY FAUCETS LLAVES DE LAVAMANOS EXTENDIDAS DE DOS MANIJAS ROBINETS À ENTRAXE LONG À DEUX POIGNÉES POUR LAVABO ASME A112.18.1 / CSA B125.1 ICC/ANSI A117.1 Models/Modelos/Modèles 6590, 6595, 6591 & 6596 Series/Series/Seria RSVP™ Write purchased model number here. Escriba aquí...
-
Page 2: Cleaning And Care
America, Canada, and Mexico. IN INSTALLATION, REPAIR, OR REPLACEMENT AS WELL AS ANY OTHER KIND OF LOSS OR © 2007, Masco Corporation of Indiana Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto. Aunque su acabado es sumamente durable, puede ser afectado por agentes de limpieza o para pulir abrasivos. - Page 3 Modelos / Modèles 6590 & 6595 Models / RP48416▲ Spout Assembly Ensamble del Tubo de Salida RP48410▲ Lift Rod Barra de Alzar Tige de Manoeuvre RP46407▲ Lever Handle & Body, Hot Side Palanca y Cuerpo, Lado Caliente Manette et corps, eau chaude RP48417▲...
- Page 4 Modelos / Modèles 6591 & 6596 Models / RP48421▲ Spout Assembly Ensamble del Tubo RP48420▲ de Salida Cross Handle & Body RP48422▲ Spout Finial Manija en Cruz y Cuerpo Pomo Manette cruciforme et Grain corps de manette RP48418▲ Lever Handle & Body, Hot Side Palanca y Cuerpo, Lado Caliente Manette et corps, eau chaude RP46408...
- Page 5 1 1/8" (29 mm) Diameter Min. INSTALLATION OF VALVE ASSEMBLIES & TRIM INSTALLATION OF SPOUT Note: When drilling holes for side valves, it is recommended that hole size must be a Note: When drilling mounting holes for the spout it is recommended that minimum of 1 1/8"...
- Page 6 1/2" (12.7 mm) IPS If handles do not align, unscrew one or both handle & body assemblies and MAKE CONNECTIONS TO WATER LINES: try assembling again after rotating handle slightly forward or backward until alignment is achieved. NOTE: If handle alignment is still not satisfactory, Choose hook-ups for 1/2"...
- Page 7 POP-UP INSTALLATION Slide white gasket (1) onto flange (2). (Silicone may Place stopper (1) into flange. Place black seal be used to replace gasket if desired.) Insert flange (2) onto pivot rod (3) from short end and pivot Note: For models 6590 & 6596 only. For into sink.
-
Page 8: Maintenance
Maintenance SHUT OFF WATER SUPPLIES BEFORE SERVICING FAUCET. If your faucet leaks out of spout outlet or around handle body, replace valve cartridge (1). A. Remove handle & body assembly (2) by turning body counterclockwise by hand. B. Remove screw (3) and stem adapter (4) using allen wrench provided with faucet. C.
Need help?
Do you have a question about the Brizo RSVP 6590 and is the answer not in the manual?
Questions and answers
brizo 6590 cp is there a rebuild kit for spout water pours out of bottom of spout thru po rod in center
