Masco Brizo Riviera 6715815 Installation Instructions Manual

Single handle deck--mounted roman tub faucets
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
r
r
CSA B125
ASME A112.18.1
ICC/ANSI A117.1
Models/Modelos/Modèles
6715815, 6715814
Series/Series/Seria
Rivierar
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
BRIZOt faucet you will need:
* To READ ALL the instructions completely before
beginning.
* To READ ALL warnings, care, and maintenance
information.
Para instalación fácil de su llave
BRIZOt usted necesitará:
* LEER TODAS las instrucciones completamente
antes de empezar.
* LEER TODOS los avisos, cuidados, e información
de mantenimiento.
Pour installer votre robinet BRIZOt
facilement, vous devez :
* LIRE TOUTES les instructions avant de débuter.
* LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
12998.00
SINGLE HANDLE DECK--MOUNTED ROMAN TUB FAUCETS
t
LLAVES DE AGUA PARA BAÑERAS ROMANAS CON BORDES
MITIGEURS POUR BAIGNOIRE ROMAINE -- POSE SUR PLAGE
6715815
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
1
6715814
05.05

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brizo Riviera 6715815 and is the answer not in the manual?

Questions and answers

Related Manuals for Masco Brizo Riviera 6715815

Summary of Contents for Masco Brizo Riviera 6715815

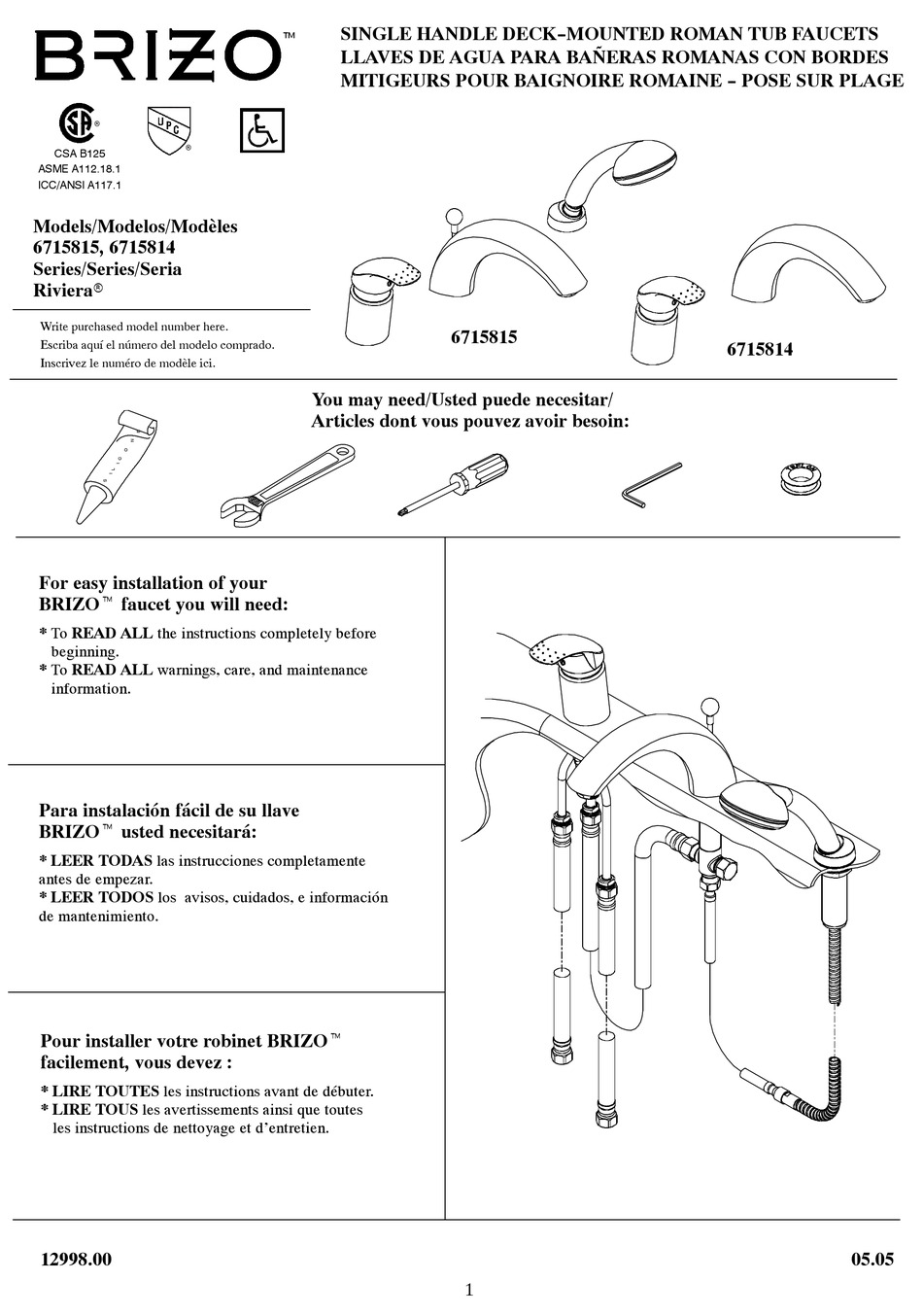

  • Page 1 SINGLE HANDLE DECK--MOUNTED ROMAN TUB FAUCETS LLAVES DE AGUA PARA BAÑERAS ROMANAS CON BORDES MITIGEURS POUR BAIGNOIRE ROMAINE -- POSE SUR PLAGE CSA B125 ASME A112.18.1 ICC/ANSI A117.1 Models/Modelos/Modèles 6715815, 6715814 Series/Series/Seria Rivierar Write purchased model number here. 6715815 Escriba aquí el número del modelo comprado. 6715814 Inscrivez le numéro de modèle ici.
  • Page 2 PREPARING INSTALLATION INSTALLATION OF VALVE ASSEMBLY Determine which model you want to install, with or without handheld shower Insert valve into mounting surface, slip washer (1) over mounting stud and and whether the shower is to be positioned to the right or left of the spout. Drill 2 secure with nut (2), as shown in fig.
  • Page 3 INSTALLATION OF DIVERTER BODY (for spout) INSTALLATION OF HAND HELD SHOWER On diverter body assembly, roughly adjust nut (1) to rim thickness and disas- Remove connection piece (1) from shower nest (2), disassemble nut (3) and semble top piece (2) from body (3). washer (4).
  • Page 4 MAKE CONNECTIONS TO WATER LINES Turn on the water supplies. Open faucet handle in mixed position. Carefully inspect all connections for leakage, with the water pressure on. Re-- The hoses supplied have ½”--14 female connections that can be used to con- tighten if necessary, but do not over tighten.
  • Page 5 INSTALLATION OF SPOUT ASSEMBLY FLUSH YOUR SYSTEM Remove the cap (1) by loosening the set screw (2). Allen key, 3 mm. Remove stream straightener from end of spout. On spout / diverter assembly (3), loosen the set screw (4) at the spout body. Turn faucet handle to the full on position.
  • Page 6 MAINTENANCE REGULATION UNIT MAINTENANCE SPOUT SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE If spout leaks at base of spout body -- replace O--ring. (1). Unscrew set screw at spout base, by using a 3 mm Allen key. ASSEMBLY Pull off spout, and replace O--ring on shank. If faucet leaks out of spout or under handle -- replace valve cartridge.
  • Page 7 MAINTENANCE DIVERTER If spout leaks out of diverter hole in body -- replace top seal (2). If spout leaks out of outlet with diverter in shower mode -- clean or replace O--rings (3 & 4). Unscrew the upper set screw, remove the spout. Unscrew the diverter knob, the diverter stem and spring is released.
  • Page 8 RP40120s 6715814 Flow straightener Rompechorros Canalisateur de jets RP28593 Button & Set screw Botón y tornillo de presión Bouton et vis d’arrêt RP40121s Cover plate, Guide, Bonnet, O--ring Chapa de cubierta, Guía, Capuchón, Anillo--O Calotte, guide, chapeau, joint torique RP40122s 6715815 Handle, Set screw, Color mark Manija, tornillo de presión, marcación de color...
  • Page 9 CURRED IN INSTALLATION, REPAIR, OR REPLACEMENT AS United States of America, Canada, and Mexico. ã2004, Masco Corporation of Indiana LIMPIEZA Y CUIDADO DE SU LLAVE Debe de tener cuidado en la limpieza de este producto. Aunque su acabado es extremadamente durable, puede ser dañado por abrasivos o pulimentos ásperos.

This manual is also suitable for:

Brizo riviera 6715814
