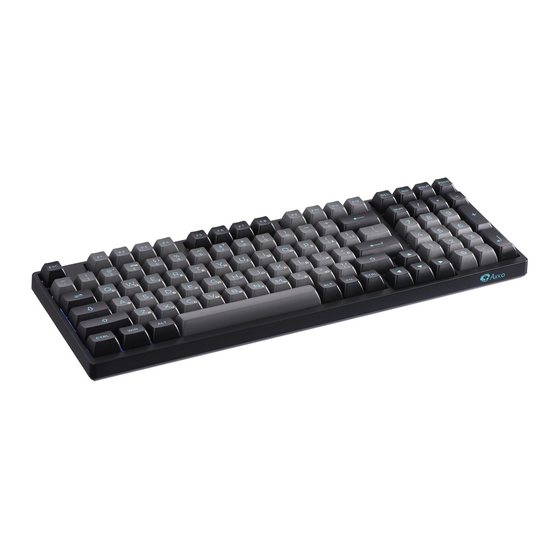

Akko 3098N User Manual
Hide thumbs Also See for 3098N:

Advertisement

三模
N
Multi-modes
用 户 手 册
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3098N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Akko 3098N

  • Page 1 三模 Multi-modes 用 户 手 册 User Manual...
  • Page 2: Table Of Contents

    目录 3098N规格参数 3098N组合键功能 3098N系统功能(Windows) 3098N系统功能(Mac) 3098N背光调节 3098N蓝牙使用指南 3098N蓝牙使用步骤1 3098N蓝牙使用步骤2 Akko Macro V1.0宏定义功能说明1 Akko Macro V1.0宏定义功能说明2 Akko Macro V1.0宏定义功能说明3 Akko Macro V1.0宏定义的调用 Akko售后服务规范...
  • Page 3 3098N Bluetooth Feature Overview 3098N Bluetooth Setup Instruction 1 3098N Bluetooth Setup Instruction 2 Akko Macro V1.0 Macro Setup Instruction 1 Akko Macro V1.0 Macro Setup Instruction 2 Akko Macro V1.0 Macro Setup Instruction 3 Akko Macro V1.0 Calling Macros...
  • Page 4: 3098N规格参数

    3098N规格参数 尺寸 重量 产地 类型 机械键盘 约382*134*40mm 约1.1kg 中国 连接方式 连接线 电池容量 键帽 蓝牙 / 无线 / 有线 Type-C To USB 3000mAh PBT材质 自定义按键 多媒体键 全键无冲 支持 支持 支持, 使用Akko Marco V1.0免驱宏录制系统。...
  • Page 5: 3098N组合键功能

    3098N组合键功能 Ctrl 我的电脑 播放 / 暂停 静音 电子邮件 上一首 < 音量减小 Windows搜索 下一首 > 音量增加 浏览器主页 Prtsc 将 W A S D 与 ↑↓ ← → 键对调 多媒体播放器 计算器...
  • Page 6: 3098N系统功能(Windows)

    3098N系统功能(Windows) ~ Ctrl 锁Win键 恢复出厂设置 将Ctrl变成Menu (App) 键 Fn + 左Win 长按 Fn + ~ 长按Fn + 右Ctrl...
  • Page 7: 3098N系统功能(Mac)

    3098N系统功能(Mac) ~ 降低显示屏亮度 无功能 向前跳过(音频) 左Win 左Alt 增加显示屏亮度 无功能 静音 左Alt 左Win 开放任务控制 向后跳(音频) 调低音量 Fn + (F1 ~ F12) 呼出Siri 暂停/播放(音频) 调高音量 F1 ~ F12...
  • Page 8: 3098N背光调节

    3098N背光调节 电量指示 Num Lock Ins PgUp PgDn 锁Win 大小写指示灯 开启为白灯 ↑ 极光/左右波浪/风车波浪/爆炸波浪 “↑” 灯光变亮 此处灯光调节为 通用功能, 有些 常亮/阶梯/呼吸/涟漪/单点亮 灯光变暗 “↓” 灯光效果不具备 PgUp 繁星闪烁/微波粼粼/上下波浪/贪食蛇 灯光方向向左 “←” 某些调节, 如: 常 PgDn 常亮涟漪/单点灭/爆炸六宫格/曲线波浪/雨滴 灯光方向向右 “→” 亮灯效只能调节 灯光开启/关闭 灯光速度变慢 “-” 亮 度, 不 能调 节...
  • Page 9: 3098N蓝牙使用指南

    3098N蓝牙使用指南 2.4G 蓝牙设备1 短按回连白灯慢闪; 背面开关示意 蓝牙设备2 长按配对白灯快闪 蓝牙设备3 左: Windows 蓝牙设备4 中: 关电源, 切换为USB模式 短按回连绿灯慢闪; (默认Windows) 2.4G无线设备 完成匹配后恢复灯效 右: Mac 有线模式...
  • Page 10: 3098N蓝牙使用步骤1

    Fn + 1 / 2 / 3 /4便可进行蓝牙匹配, 1 / 2 / 3 /4按键上蓝灯快闪, 即可进入蓝牙匹配模式。 2.选择蓝牙设备记忆组 为便于记忆对应设备名称, 本机为蓝牙5.0架构。 分别为Akko 3098BT-1 / Akko 3098BT-2 / Akko 3098BT-3 / Akko 3098BT-4四组蓝牙通道。 您通过Fn + 1 / 2 / 3 /4, 完成匹配设定后, 系统会默认记忆您关闭蓝牙模式前 最后一次连接的设备。 3.设备匹配...
  • Page 11: 3098N蓝牙使用步骤2

    3098N蓝牙使用步骤2 4.设备切换 完成了4组蓝牙设备的匹配后, 系统会自动记忆; 通过短按Fn+1 / Fn+2 / Fn+3 / Fn+4 , 可快速切换4个蓝牙 设备使用。 5.设备关闭 键盘在不使用的时候, 关闭背面开关电源, 可节省电量; 键盘空闲15分钟之后, 进入休眠模式, 可按任意键唤 醒。 注: 使用Windows系统, 开启省电模式会影响蓝牙设备的休眠唤醒时间。 6.设备匹配 如忘记设备, 或者蓝牙连接出现混乱的情况, 如需重新连接蓝牙设备时, 需要删除电脑中原有的3098蓝牙 设备记忆。...
  • Page 12: Akko Macro V1.0宏定义功能说明1

    Akko Macro V1.0宏定义功能说明 1 注意: 键盘需处在有线模式下才能进行宏定义。 蓝牙/2.4G模式可调用宏定义。 1. 自定义功能无需驱动软件, 根据说明操作可直接使用。 2. “Esc” , “ Fn” , “ 左Win键” 三颗功能键无法自定义。 3. 目前Akko Macro V1.0不支持同时触发, 即 “AB” 同时按下依然以A, B顺序触发。 4. 目前Akko Macro V1.0不支持自定义间隔时间, 即无法定义A, B之间的间隔, 不论你按的快或者慢, 都会 以系统默认的触发时间定义。...
  • Page 13: Akko Macro V1.0宏定义功能说明2

    Akko Macro V1.0宏定义功能说明 2 进入自定义层 进入自定义模式 Fn+任意键 输入自定义内容 Fn+该按键 长按Fn+左Win键 Fn+Esc (宏定义) (结束该键自定义) (选择该键开始自定义) 开始下一个按键自定义 退出自定义层 退出自定义模式 回到默认键位模式 Fn+Esc 如果该按键已经进行了自定义, 当进入自定义模式后, 按下FN+该按键则会清除该按键的宏。 清除宏: 如果要对该按键重新进行自定义, 则在清除宏后再按照正常步骤按下FN+该键, 开始自定义。...
  • Page 14: Akko Macro V1.0宏定义功能说明3

    Akko Macro V1.0宏定义功能说明 3 宏定义示例: 将A定义成 akkogear 第一步: 长按Fn+左Win 3秒, 进入自定义层 第二步: 按Fn+Esc, 开始宏定义 第三步: 按Fn+A, 选择A开始宏定义 第四步: 按照顺序按下a,k,k,o,g,e,a,r 第五步: 按Fn+A, 结束A的宏定义 此时, 按A就会显示akkogear, 如果您还要对B进行宏定义, 按下Fn+B, 开始B的宏定义 第六步: 按Fn+Esc退出宏定义 在自定义层下, 就可以操作您设置的键位和宏了 第七步: 长按Fn+左Win 3秒, 退出自定义层, 回到默认键位...
  • Page 15: Akko Macro V1.0宏定义的调用

    Akko Macro V1.0宏定义的调用 方法一: 进入自定义层 (长按Fn+左Win) , 进入自定义层之后, 所有按键变成已经自定义的内容, 同时Win被锁, 如果 想使用Win, 按下Fn+Win解锁。 在这个模式下, 您可以任意的使用已经编辑好的按键。 自定义层不被记录, 关机或者插拔后需要会恢复到默认键位, 需要重新操作后进入自定义层。 方法二: 在默认键位下, 通过Fn+右Alt+已经定义的按键, 快速调用该按键的自定义内容, 注意一定要按照先按Fn 再按Alt的顺序调用。...
  • Page 16: Akko售后服务规范

    Akko 售后服务规范 1.Akko机械键盘享受非人为损坏1年保修服务, 即从购买日起, 1年以内免费维修。 2.如超过条款1的保修期限, Akko官方将收取不超过市场平均价格的费用提供维修服务。 3.用户自行拆开键盘视为放弃免费维修服务, 即使1年内损坏, 也按照售后服务条款2执行。 4.不同销售平台的特殊服务条款, 以购买平台规则为准。 注意 人为损坏不局限于键盘进水、 高处坠落、 过度用力拉扯线材等, 键盘为电子产品, 请按照电子产品 事项 保护方式爱惜使用。 售后电话: 0755-27728007 售后QQ: 981572876 *官方售后服务时间为每周一至周五上午10: 00至下午18: 00, 节假日以国家法定节日休息为准。 *因受维修时间, 物流时间, 零件采购时间等不可控因素, 售后时间会有不同, 以实际损坏情况评估为准, 请用户耐心等待。...
  • Page 17: 3098N Technical Specifications

    3098N Technical Specifications Dimensions Weight Type Country of Origin Approximately Approximately Mechanical Keyboard China 382*134*40mm 1.1kg Connection Interface Keycap Battery Capacity Type-C To USB 3000mAh PBT Material Bluetooth/USB/2.4Ghz Custom Keys Multimedia Keys N-Key Rollover YES (use Akko Marco V1.0)
  • Page 18: 3098N Hotkeys

    3098N HotKeys Num Lock Battery Level Indicator Lock Win PrtSc Caps-Lock LED Indicator (White) Ctrl File Explorer Pause /Playback Mute E-mail < Decrease Volume Previous Song Windows Search > Increase Volume Next Song Browser Homepage Prtsc Swap W A S D with ↑↓...
  • Page 19: 3098N System Commands(Windows)

    3098N System Commands(Windows) ~ Ctrl 锁Win键 Lock Windows Key Restore Factory Settings Revert Ctrl into Menu (APP) key Hold down Fn and press ~ key Press Fn and left Win key Hold down FN and press right Ctrl...
  • Page 20: 3098N System Commands(Mac)

    3098N System Commands(Mac) Decrease display brightness Skip forward (audio) Left Win Command Increases display brightness Mute LeftAlt Option Fn + (F1 ~ F12) Open mission control Skip back (Audio) Volume down F1 ~ F12 Activate Siri Pause/Play (Audio) Volume up...
  • Page 21: 3098N Backlight Settings

    3098N Backlight Settings Num Lock Battery Level Indicator Ins PgUp PgDn Lock Win Caps-Lock LED ↑ Indicator (White) “↑” Bright Effect 1、 Effect 2、 Effect 3、 Effect 4、 Effect 5 The adjustments on the left is for generic Effect 6、 Effect 7、 Effect 8、 Effect 9、 Effect 10 “↓”...
  • Page 22: 3098N Bluetooth Feature Overview

    3098N Bluetooth Feature Overview 2.4G Short press to connect with slow Bluetooth device 1 flashing white LED; Back Switch Indicator Bluetooth device 2 Press and hold to pair device with fast flashing white LED. Bluetooth device 3 Left : Windows...
  • Page 23: 3098N Bluetooth Setup Instruction 1

    To help user recognize individual Bluetooth device, the keyboard is equipped with Bluetooth 5.0 framework. There will be 4 groups of Bluetooth profiles with device name appearing as Akko 3098BT-1 / Akko 3098BT-2 / Akko 3098BT-3 / Akko 3098BT-4. Once the devices...
  • Page 24 3.Bluetooth Pairing The keyboard can be paired with PC, Pad, smartphone and other devices with Bluetooth turned on.During initial setup, the keyboard will appear as “Akko 3098 -1” in your Bluetooth device. 4.Switch the Bluetooth device After 4 Bluetooth devices have been paired with the keyboard, press Fn+1 / Fn+2 / Fn+3 / Fn+4 for at least 4 seconds to quickly switch between them.
  • Page 25: Akko Macro V1.0 Macro Setup Instruction 1

    2. The following keys cannot be programmed: "Esc", "Fn", "Left Win" and "Right Win". 3. Akko Macro V1.0 does not support simultaneous trigger, that is, pressing "AB" at the same time will trigger the two keys in the order of A followed by B.
  • Page 26 Akko Macro V1.0 Macro Setup Instruction 2 Enter Macro Mode Start Macro Editor Macro Recording Fn + Custom Key Fn + Custom Key Fn+Esc Long Press Fn +Left Win (Press Keys to Store) (End Recording) Record the next Key Exit Macro Mode...
  • Page 27: Akko Macro V1.0 Macro Setup Instruction 3

    Akko Macro V1.0 Macro Setup Instruction 3 Macro Recording Example: Define “A” as “AKKOGEAR” Step 1: Press Fn + left Win for 3 seconds to enter the Macro mode. Step 2: Press Fn + ESC to launch Macro editor. Step 3: Press Fn + A. This means we choose key “A” to record.
  • Page 28: Akko Macro V1.0 Calling Macros

    Akko Macro V1.0 Calling Macros Method A: Enter the Macro mode by long pressing Fn+left Win. Then all keys will turn to pre-configured definitions with locked Win key. Press Fn+Win to unlock Win key if necessary. In the Macro mode, you can use keys with customized definitions.
  • Page 29: Akko Warranty And Service Statement

    1. Akko provides 1-yr warranty for customers in mainland China. For other regions, please contact your seller (Akko distributor) for specific warranty policy. 2. If the warranty window expires, customers need to pay for repairs. Akko will also provide instructions if users prefer to repair the keyboard by themselves.
  • Page 30 www.akkogear.com instagram.com/akkogear facebook.com/akkogear 扫描关注官方微信 扫描关注官方微博...
