Caroma URBANE ll 500 Installation Instructions

Wall basin

Advertisement

Quick Links

IMPORTANT
Roughing in for D.200 Basin Fixing Kit:
Reinforcement must be provided behind the finished wall for the basin wall fixing.
For timber stud walls, noggins and studs must be positioned at a height to allow for the
location of fasteners as detailed in Fig. 1.
BASIN INSTALLATION WITH D.200 BASIN FIXING KIT
1- Mark fixing screw hole position on finished wall at the recommended height as
detailed in Fig. 1.
2- Drill two Ø12mm holes in masonry wall for expansion fasteners. For timber stud
walls drill two Ø8mm holes for fixing screws.
3- Insert expansion fasteners into the drilled holes in masonry wall. The fixing screws
should be screwed into the wall using the flat section of the fixing screw with a
spanner as shown in Fig. 2. Allow 50mm of thread to protrude from the finished wall.
4- Locate basin onto the fixing screws on the wall. Insert Plastic Bushes, Washers and
fasten to wall with fixing nut to complete assembly as detailed in Fig. 3.
5- The plastic bush allows for levelling adjustment if required by rotating the hexagonal
head bush, the basin will be slightly raised or lowered as shown in Fig. 3.
6- Fit taps and waste assembly to the basin.
7- Tighten fixing nuts and connect plumbing to complete the installation.
Installation must be in accordance with AS/NZS 3500.2

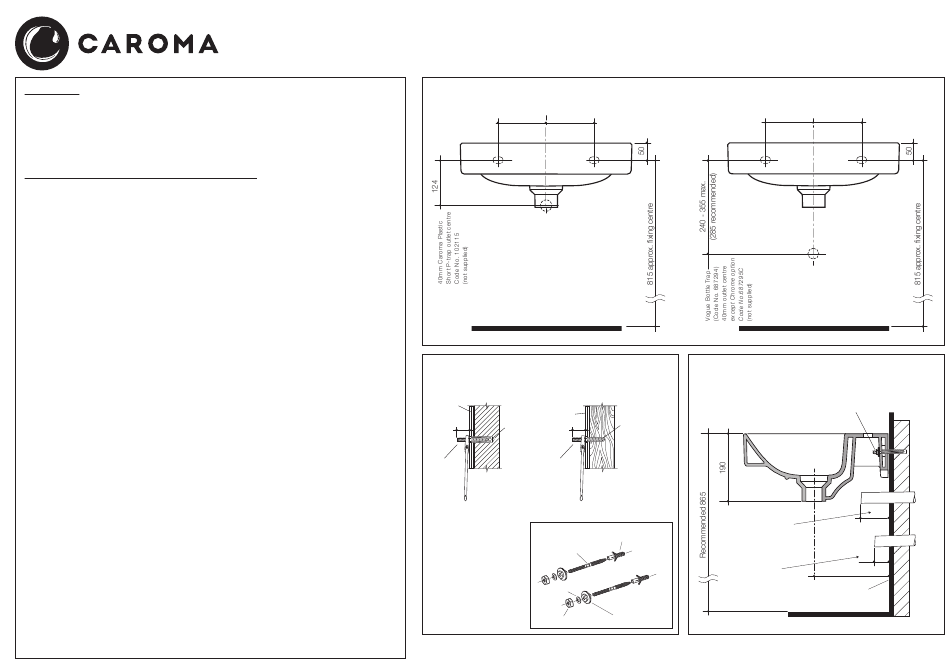

URBANE ll 500 WALL BASIN INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE INSTALLATION
D.200 Basin Fixing Kit
40mm Caroma Plastic Trap layout
140
Finished Floor
Fig. 1
IMPORTANT:
Fixing Screw
Fixing Screw
Masonry Walls
Timber Stud Walls
Installation
Installation
Finished
Wall
Finished
Wall
50
Drill
Ø12mm
hole
Fixing
Screw
D.200 Basin Fixing Kit
Fixing Screw
Washer
Fig. 2
Fixing Nut
All measurements are subject to accepted manufacturing tolerances. To ensure accuracy please check actual product dimensions before drilling for installation.
The manufacturer reserves the right to change specifications at any time without giving prior notification. This product should be installed by a qualified plumber.
Local authority, Water Board, and Building Regulations may apply to the installation of this product, and you should consult the appropriate bodies on these requirements.
Modina and Eco 40mm Bottle Trap layout
140
D.200 Basin Fixing Kit
Completed Installation
Drill
Ø8mm
50
hole
Fixing
Screw
*40mm Caroma Plastic
Short P-trap outlet centre
Masonry Walls
(80 mm for PVC)
Expansion Fastener
(95 mm for copper)
Vogue Bottle Trap
40mm outlet centre
Plastic Bush
Fig. 3
140
140
Finished Floor
Plastic bush for
levelling adjustment
rotate hexagonal
head
*
22
205
Finished wall
Finished Floor
Date of Issue: 16.06.23
Issue No: 3
