Caroma Smart Command Installation Instructions

WATER EFFICIENT - CONNECTED TAPWARE ENABLED BY AWARE
PLUMBERS INSTALLATION INSTRUCTIONS - INWALL BODY (99098)
Important Information
* Brazed connections should not be made directly onto
the mixer, as excessive heat will coause permanant damage.
All pipework must be throroughly flushed prior to installation.
*
Refer to side 2 of this instruction for trim kit installation.
*
Installation
1) Attach inwall body mounting box (11) to timber noggins
as shown (Fig.3) using the 6 off supplied screws (1). Use
the integrated level indicator (2) to ensure that the box
is mounted horizontally.
2)
Remove cover (3) by unscrewing the 4 off plastic
socket screws (4) using the supplied spanner.
3) Remove sealing grommet (5). Insert DN15
copper mains supply pipe through grommet,
and then insert pipe into box. Assemble compression
fitting and make connection with the G1/2 integrated
isolation valve (6). After connection has been made,
slide sealing grommet back onto mounting box. Ensure
that the isolation valve (7) is in the CLOSED POSITION
as shown (Fig.1). Open mains supply & check for leaks.
Connect power supply (8) to a 240VAC, 10A GPO.
4)
Ensure that supply of power has been isolated.
The power outlet should be located no more
than 2.2m from the inwall body box when using the
supplied extension cable (9).
Connection points (10) are provided for terminating standard
20mm electrical conduit to the mounting box.
Run cable through connection points and into the mounting box .
5) Once inwall body installation has been completed,
replace & secure mounting box cover (3) using
screws (4). Complete lining & tiling process. After
tiling is complete, trim excess mounting box tiling
flange so that it flush with the finshed surface (Fig.2).
Re-attach mouting box cover (3) using the screws (4).
ELECTRONIC WALL MOUNTED TAP
10
2 7 1
1 9 4

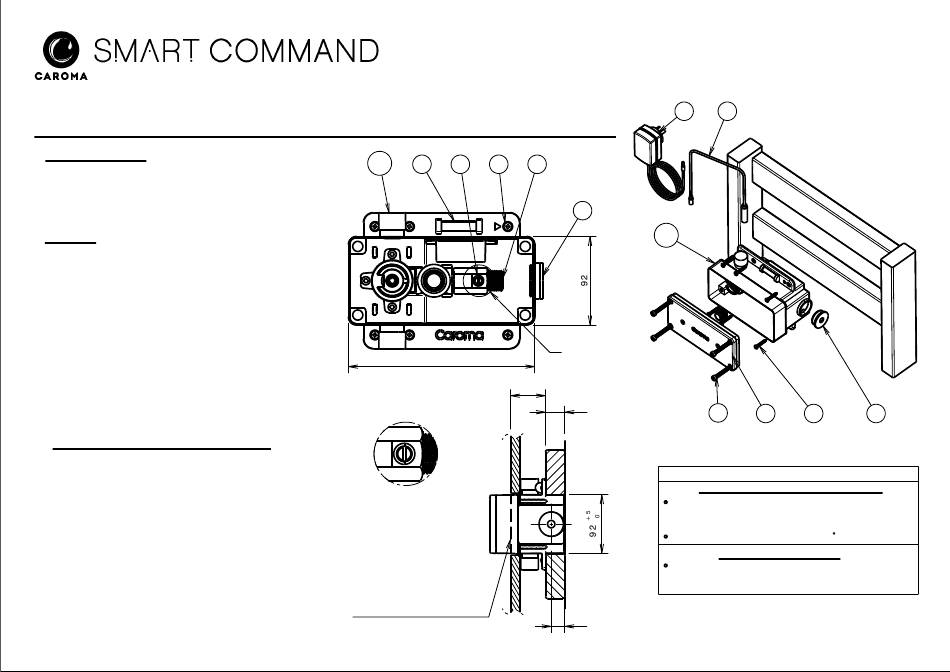

Fig. 1
5 5 - 7 5
Detail B
Isolation Valve in
closed position
Trim excess mounting
box tiling flange after
tiling to be flush with surface.
Fig. 2
8
6
5
11
B
3 0
Fig. 3
Pressure & Temperature Requirements.
Static inlet pressure range : 50 -700 kPa
New Regulation :-500 kPa maximum static pressure
at any outlet within a building. (Ref. AS/NZS 3500.1)
Maximum hot water temperature : 80 C.
The installing plumber is responsible for waterproofing
all penetrations for Taps in Shower areas at installation
by a proprietary flange system or a sealant.(Ref AS3740)
2 0
TM
9
4
3 1 5
IMPORTANT
Installation Requirements.
Sheet 1 of 2
IS1682C(08/18)
