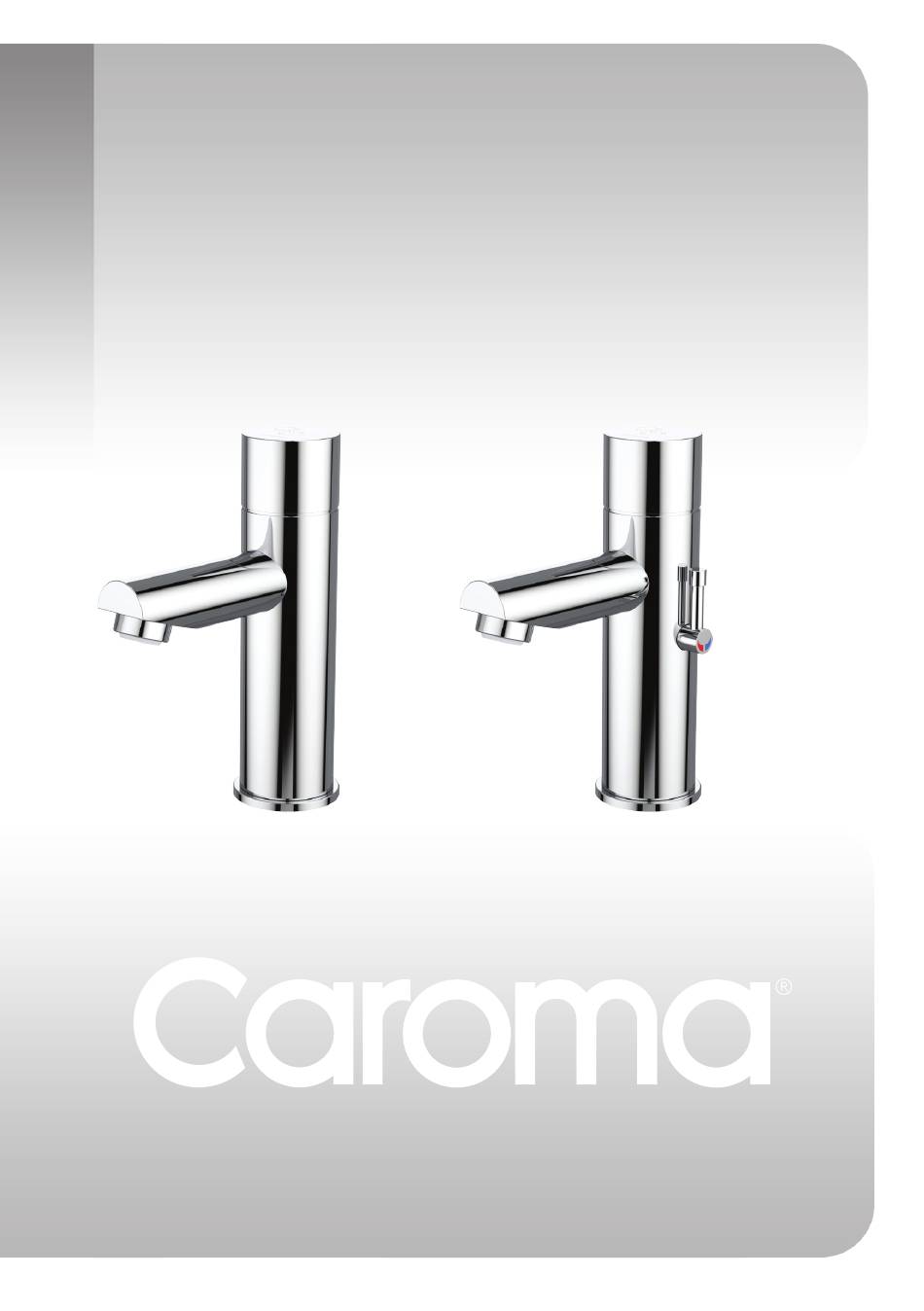

- Page 1 PLUMBERS InStaLLatIon and MaIntEnancE InStRUctIonS G SERIES - E TOUCH MIXER / TAP e l e c t r o n i c a l ly o p e r at e d M i X e r / ta p G Series E Touch Basin Tap G Series E Touch Basin Mixer i S 1 3 01 c ( 0 3 / 1 5 )
- Page 2 I N DEX IMPoRtant tEcHnIcaL data oPERatIon PacK contEntS PRE-InStaLLatIon InFoRMatIon 10-12 MIXER oR taP InStaLLatIon FLoW tIME adJUStMEnt 13-15 BattERY REPLacEMEnt InStRUctIonS MaIntEnancE Filter cleaning instructions care and cleaning of chrome and special finishes SERVIcE cHEcK LISt SPaRE PaRtS LISt...
-
Page 3: Power Requirements
I M PO R T ANT PrESSurE & TEMPEraTurE rEquirEMEnTS Hot and cold water inlet pressures should be equal. Static inlet pressure range: 150-800 kPa - new Regulation: 500 kPa maximum static pressure at any outlet within a building (Ref. aS/nZS 3500.1-2003, clause 3.3.4) Maximum hot water temperature: 70°c DEck rEquirEMEnTS... -
Page 4: Technical Data
TE c h N I cA l DA T A G-Series E touch Basin tap G16002E6a G-Series E touch Basin Mixer G16000E6a IP67 Battery Back Up Box SP63020 G Series touch PS 9V SP63025... -
Page 5: Operation
O P ER A T ION Battery and Mains options to operate this mixer or tap, simply touch the designated area at the piezo cap. default flow time is 8 seconds. If you do not need more water, just touch the designated area again to stop the water flow before the default flow time has passed. - Page 6 PA ck c ONT EN T s E Touch BaSin TaP Familiarise yourself with the part names and confirm that the parts are included. 1x Basin tap and attachments 1x Filter 1x allen key washer B a T T E r Y M a i n S B a c k u P o P T i o n...
- Page 7 PA ck c ONT EN T s E Touch BaSin MiXEr 1x Mixer and attachments 2 x Filter 1x allen key washers B a T T E r Y M a i n S B a c k u P o P T i o n 9V Battery box transformer...
-
Page 8: Pre-Installation
PRE - IN s TA llATI ON I N F OR MAT I ON cHEcK contEntS Separate all parts from packaging and check each part with the Pack contents section. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install your mixer or tap until you obtain the missing parts. - Page 9 M I X ER OR T AP I N sT A llAT I ON STEP 1 – PrEParaTion for MounTinG ThE MiXEr or TaP Shut off the water supply. o-RInG Remove the hexagonal nut, the disc and the gasket. do not remove the o-ring from the base of the mixer or GaSKEt tap.
-
Page 10: Step 3 - Connecting The Water Supply
M I X ER OR T AP I N sT A llAT I ON STEP 3 – connEcTinG ThE waTEr SuPPlY Flush lines, fit filter washer and 2 inlETS VErSion 1 inlET VErSion connect the flexible tails to the water supply and tighten to compress the FLEX taILS sealing washer to provide a water-... - Page 11 M I X ER OR T AP I N sT A llAT I ON STEP 4 – connEcTinG ThE PowEr SourcE (MainS oPTion) MainS oPTion Plug the transformer into the electricity socket and connect the connectors. BaTTErY VErSion Install the battery box at the wall underneath the sink using the two sided adhesive foam tape.
- Page 12 Fl O W T IME ADJ U s T ME N T adjustment levels the flow time is programmable on site. If necessary, the default flow time of 8 seconds can be adjusted to any value between 1 to 60 seconds. the adjustment mechanism is composed of 3 adjustment levels for changing the flow time.
- Page 13 Fl O W T IME ADJ U s T ME N T Example 3: You wish to adjust the flow time to 60 seconds. at level 1 perform 10 steps of 1 second (you will get 10 seconds). total: 10 seconds Go to level 2 and perform 10 steps of 2 seconds (you will get 20 seconds).
- Page 14 Fl O W T IME ADJ U s T ME N T 8) If you need to perform steps at adjusting level 2, wait after you see the LEd blink twice and then, perform the needed quantity of steps (with a maximum of 10 steps of 2 seconds).
-
Page 15: Battery Replacement
B AT TE R Y R EPlA c E ME N T When the battery weakens, the red indicator light will blink at a constant rate. the battery must be replaced within two weeks. carefully open the battery box. Remove the old battery. Replace the used battery with a new 9V battery (Lithium battery is close the box... - Page 16 M A I N T E NA Nc E filter cleaning instructions the tap is provided with one / two stainless steel filter washer(s) preventing foreign particles from entering the lines. If the water flow has decreased, this may be because the filter washer(s) is / are clogged. the filter washer can be cleaned as follows: 1.
- Page 17 s ERv I c E c h Ec k l Is T check the batteries. Low or used up batteries. Replace the batteries. See page 16. check the flow time. See page 13. check the connection between the piezo cap connector and the solenoid connector.
