- Page 1 MET001 Single Phase Electronic Energy Meter User Manual...
-
Page 3: Product Appearance

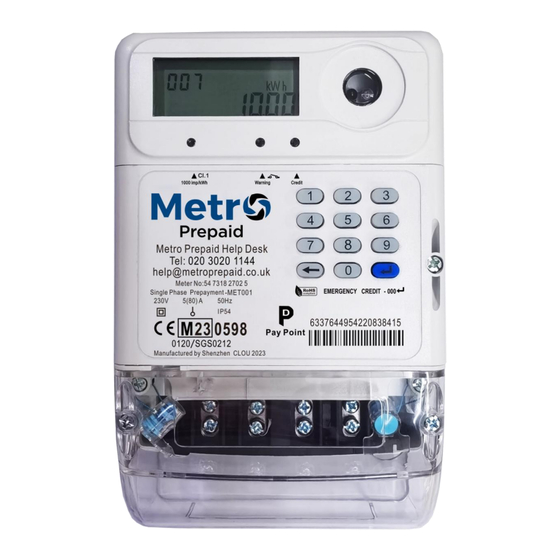

Product Appearance 2. Technical Parameter Item Parameter Wiring Mode Single Phase Two-wire LNNL Rated Current (Ib) Max. Current (Imax) Starting Current (0.4% Ib) 20mA Rated Voltage (Un) 230V Voltage Range 80% Un ~ 120%Un Frenquency（fn） 50Hz ± 5% Accuracy Class Active: IEC Class 1.0 Meter Constant Active: 1000imp/kWh... -
Page 4: Wiring Diagram
Wiring Diagram LCD Display 4.1 LCD Display Introduction Meter Full Display: Symbol Name Function Short code Displays 3-digit short code Main screen Indicates electricity quantity, demand, time, voltage, current and meter ID number etc. Current tariff Displays the current tariff Unit tag Indicates units of registers: 1) Power: kW, kVA,... - Page 5 The display is as follows: 1) Disappear, no tampering occurred. 2) Blink, detect tampering and confirm now.( Instantaneous state set) 3) Keep displaying, tampering event detected.( Confirmation state set) Alert tag Alert status includes two categories: 1) Meter faults: relay faults, clock faults, un-calibrated meters, metering errors 2) Alert events: over current, over voltage, under voltage, over current, low...
- Page 6 times of low credit, it is classified as 2 level, and the subsequent level is analogized. Quadrant tag Indicate the quadrant where the meter is operating: Note: When the meter is creeping, it only displays coordinate symbols, not quadrant symbols. Payment When the meter is in the prepaid mode, mode tag...
-
Page 7: Display List
4.2. Display List Auto scroll display list for the meter Short Code Display Items Remained credit Power off display of meter In prepaid mode: Short Code Display Items Remained credit In postpaid mode: Short Code Display Items Total active energy (forward + reverse) 4.3 LED Indicator Description Pulse LED... - Page 8 5. Power Purchase Process 5.1 Check Meter ID Input “6”&”5” and then press “ ” via keypad, the meter will auto display 11-digit as the ID number in two screens. Notice: The displayed No. shall be the same with the user ID (for purchasing power) 5.2 Purchase Power ...
-
Page 9: Troubleshooting
If TOKEN is expired, “old” will be displayed as follows: If TOKEN has been used, “used” will be displayed as follows: 7. Troubleshooting Conditions Solutions When LCD displays some symbols occur When LCD displays abnormal, lack of stroke, unclear or energy LED contact the manufacturer or local flashes, but LCD has no display.
