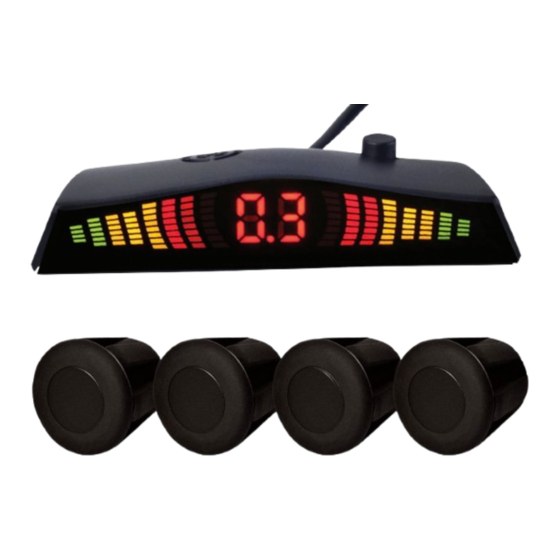

Page 3: General Installation Diagram
GENERAL INSTALLATION DIAGRAM GENERAL INSTALLATION DIAGRAM Control box Display Reversing light Power Speed signal (BROWN) Front installation only Foot brake (YELLOW) Front installation only Ground (BLACK) Power (RED) Rear Reversing light circuit or connect to Accessory circuit for Control box front installation. -
Page 4: Error Codes
ERROR CODES When the system turns on, each sensor is automatically tested. If the system cannot detect any of the sensors, the display will show an error code and beep to indicate which sensor is not detected. If a sensor is not detected, check the connections between the sensor and the module. - Page 5 SPEED SIGNAL PROGRAMMING (front installation only) With the vehicle travelling at a constant low speed, press and hold the function button for 3 seconds and then release. If the speed signal programming is successful, the LED on the green switch will blink twice, indicating that the speed setting is successful. After programming the speed signal, when the vehicle speed drops below the programmed speed, the front parking sensors will activate;...
- Page 6 MONITOR FUNCTION BUTTON Press the function button to mute/unmute the audible alarm. DISPLAY ORIENTATION ADJUSTMENT/ MOUNTING MODE ADJUSTMENT. To mirror or flip the display, press and hold the function button according to the table below to set the desired display mode. Release the function button to set the configuration.
- Page 7 SENSOR INSTALLATION DIAGRAM Fix the position of sensors. No obstacle should be detected at 90° from the top view otherwise Fix the position of sensors. No obstacle should be detected at 90° from the top view otherwise the system will false alarm. the system will fasle alarm.
- Page 8 Smooth slope Smooth round objects Objects absorbing wave, e.g.cotton Smooth slope Smooth round objects Objects absorbing wave, e.g.cotton Objects hard to be detected (eg: clothing) Objects hard to be detected A.Four drill holes A.B.C.D ADVISED POSITION TO INSTALL THE SENSOR should be under the same line.
- Page 9 SELECT DRILLING POSITION FOR SENSOR A & D A. Choose suitable drilling positions A. Choose suitable drilling positions for A and D sensor and mark for A and D sensor and mark A. Choose suitable drilling positions for A and D sensor and mark For best detection angle, position A &...
-
Page 10: Sensor Installation
DRILLING A. Use a small drill bit to locate position B. Drill with the bumper cutter supplied SENSOR INSTALLATION A. Insert the sensors into the holes and secure 超声波探头 B. Arrange wiring neatly and securely OTHERS Mount the display on the dashboard, above the mirror, or at rear of cabin in view of mirror... -
Page 11: Control Box Installation
CONTROL BOX INSTALLATION Install control box inside the boot. Keep away from heat, moisture and vibration. NOTE: Control box is not waterproof. 2.5m... -
Page 12: Troubleshooting
TROUBLE SHOOTING Problem Cause Solution The speed signal The speed signal wire is not Connect the brown wire to configuration fails. connected to the vehicle’s the vehicle’s PWM speed PWM speed signal wire signal wire The vehicle speed signal is Install a CAN interface with integrated into the CAN-bus PWM signal output...
