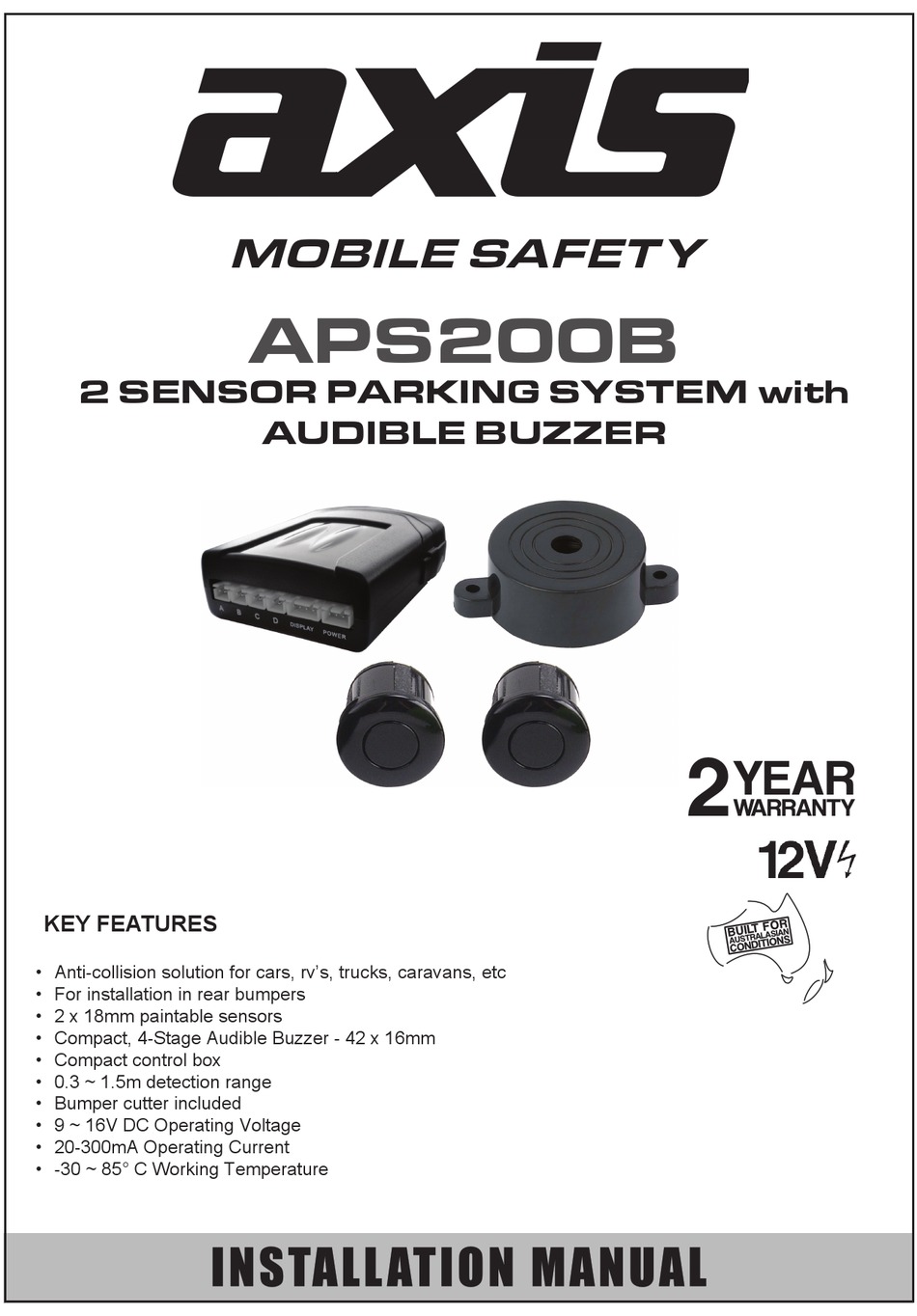

2 SENSOR PARKING SYSTEM with
KEY FEATURES

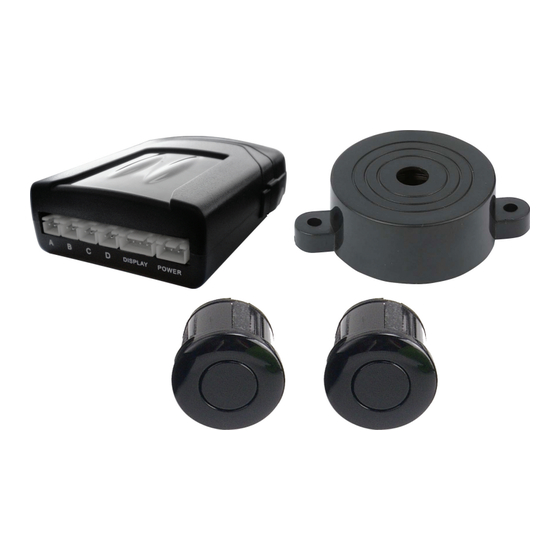

• Anti-collision solution for cars, rv's, trucks, caravans, etc
• For installation in rear bumpers
• 2 x 18mm paintable sensors
• Compact, 4-Stage Audible Buzzer - 42 x 16mm
• Compact control box
• 0.3 ~ 1.5m detection range
• Bumper cutter included
• 9 ~ 16V DC Operating Voltage
• 20-300mA Operating Current
• -30 ~ 85° C Working Temperature
MOBILE SAFETY
APS200B
AUDIBLE BUZZER
1
2
YEAR
WARRANTY
Advertisement
Table of Contents
Related Manuals for Axis APS200B
Summary of Contents for Axis APS200B
- Page 1 MOBILE SAFETY APS200B 2 SENSOR PARKING SYSTEM with AUDIBLE BUZZER YEAR WARRANTY KEY FEATURES • Anti-collision solution for cars, rv’s, trucks, caravans, etc • For installation in rear bumpers • 2 x 18mm paintable sensors • Compact, 4-Stage Audible Buzzer - 42 x 16mm •...
- Page 2 GENERAL INSTALLATION DIAGRAM...
- Page 3 SENSOR INSTALLATION DIAGRAM Fix the position of sensors. No obstacle should be detected at 90° from the top view otherwise the system will fasle alarm. Fix the position of sensors. No obstacle should be detected at 90° from the top view otherwise the system will false alarm.
- Page 4 SENSOR DETECTION Objects hard to detect: including pedestrians with absorbing clothing. Smooth slope Smooth round objects Objects that absorb sound waves: e.g. cotton, wool Smooth slope Smooth round objects Objects absorbing wave, e.g.cotton DISTANCE INDICATION Objects hard to be detected A.Four drill holes A.B.C.D should be under the same line.
- Page 5 SELECT DRILLING POSITION FOR SENSORS A. Choose suitable drilling positions A. Choose suitable drilling positions for A and D sensor and mark for A and D sensor and mark A. Choose suitable drilling positions for A and D sensor and mark For best detection angle, position A &...
- Page 6 CONTROL BOX INSTALLATION Install control box inside the boot. Keep away from heat, moisture and vibration. NOTE: Control box is not waterproof. SENSOR INSTALLATION 2.5m OTHERS Mount the buzzer under the dashboard.
- Page 7 INSTALLATION STEPS 1. Carefully choose position for sensors 2. Select drilling position for sensor A & D 3. Locate the position and drill 4. Install the sensors and hide the wires 5. Install the buzzer 6. Install the control box (NOTE: The control box is not waterproof) TEST 1.
- Page 8 Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: APS200B Serial Number: Model Number: Date of Purchase:...
