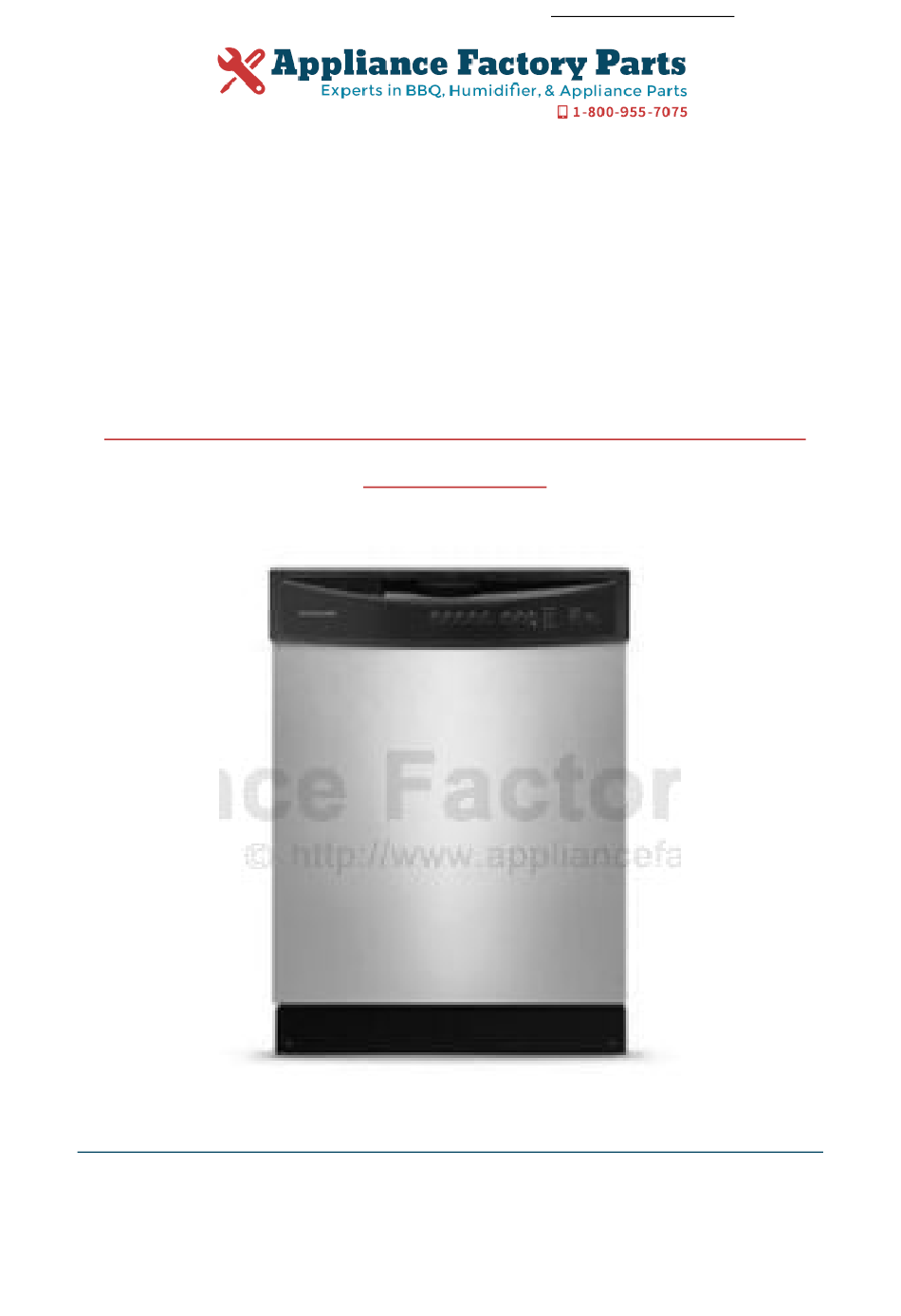

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FRIGIDAIRE ffbd2409ls0a Owner's Manual Shop genuine replacement parts for FRIGIDAIRE ffbd2409ls0a Find Your FRIGIDAIRE Dishwasher Parts - Select From 369 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
Factors Affecting Performance ......11 Dishwasher Features ......... 4 Care and Cleaning ........... 12 Operating Instructions ........5-6 Solutions to Common Dishwashing Problems .. 13-14 Preparing and Loading Dishes ......7-9 Warranty ............15 www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. WARNING • Do not wash plastic items unless marked “dishwasher safe” or the equivalent. Check with manufacturer for This symbol will help alert you to such dangers as recommendations, if not marked. -
Page 4: Product Registration
As each cycle begins, you may–or may not– Serial number hear the drain motor. Registering your product with Frigidaire enhances our ability to serve you. You can register online at The next sound you will hear is the splashing water as www.frigidaire.com or by dropping your Product... -
Page 5: Dishwasher Features
DISHWASHER FEATURES Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Appearance may vary from your model. Options Selections * Delay Start (*available on The DELAY START option allows you to automatically delay select models) starting your dishwasher from 1-10, 1-24 or 2-4-6 hours depending on your model. * Hi-Temp Wash On models with 1-10 or 1-24 hour delay, press the DELAY When HI-TEMP WASH option is selected, the dishwasher START pad until the desired delay time shows in the... - Page 7 OPERATING INSTRUCTIONS Cycle Chart * Includes dry time To Select Cycle Washes/ Cycle Water Time* Rinses (approx.) (Hours) Heavy Wash/Pots & Pans Select HEAVY WASH/POTS & gal. 4 washes 2 1/2 PANS and desired OPTIONS. For pots, pans, casseroles and imp.
-
Page 8: Preparing And Loading Dishes
PREPARING AND LOADING DISHES Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. - Page 9 PREPARING AND LOADING DISHES Loading the Bottom Rack Upper Rack Option Features and appearance of racks and silverware basket The UPPER RACK option can be used to wash a wide may vary from your model. assortment of items when you don't have a full load. Also, when the upper rack fills up with glasses and the The lower rack is best for plates, saucers, bowls, and lower rack is still empty, you don't have to wait anymore...
- Page 10 PREPARING AND LOADING DISHES Loading the Silverware Basket When covers are up, mix items in each section of the basket with some pointing up and some down to avoid CAUTION nesting. Water spray cannot reach nested items. Load sharp items (knives, skewers, etc.) pointing down.
-
Page 11: Dishwasher Dispenser And Detergents
DISHWASHER DISPENSER & DETERGENTS Filling the Detergent Dispenser How much Detergent to use The detergent dispenser has one covered and one The amount of detergent to use depends on the water uncovered cup. Detergent in the uncovered cup falls into hardness. -
Page 12: Factors Affecting Performance
FACTORS AFFECTING PERFORMANCE Rinse Aid Water Pressure Rinse aid greatly improves drying and reduces The hot water line to dishwasher must provide water water spots and filming. Water "sheets" off dishes pressure between 20 and 120 psi. rather than forming water droplets that cling and leave Low water pressure may occur when laundry or showers spots. -
Page 13: Care And Cleaning
CARE AND CLEANING Care of Drain Air Gap WARNING If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the Burn Hazard dishwasher will drain properly. A drain air gap is usually Allow heating element to cool before mounted on countertop and can be inspected by cleaning the interior. -
Page 14: Solutions To Common Dishwashing Problems
SOLUTIONS TO COMMON DISHWASHING PROBLEMS Before calling for service, review this list. It used for cycle selected. Also, check phosphate level. (See Detergent Dispenser.) may save you both time and expense. This list includes common experiences that are not the •... - Page 15 SOLUTIONS TO COMMON DISHWASHING PROBLEMS • Be sure water action can reach the dispenser. Dishwasher Does Not Drain • Check to see if cycle has been completed. Properly • Make sure items do not prevent the detergent dispenser • If unit is hooked up to a food waste disposer, make from opening.
-
Page 16: Warranty
WARRANTY Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
