PROCET PT-PSE105GBSN-D-10 User Manual

PT-PSE105GBSN-D-10
User Manual
www.procetpoe.com
-Overview-
PT-PSE105GBSN-D-10 is a single-port media converter with PoE function. The single PoE output port delivers
1.75A up to 95W(max) power for remote PDs over 4 pairs. It is passive PoE injector, and it will power to PDs directly
without any detection action. Such as PTZ cameras, wireless APs, base stations, and other PoE-powered devices
which need high power watts.
RJ45 port supports 2.5GbE NBase-T, while the fiber slot only supports 10GE SFP+ of optical module. Enclosed in an
IP40 high-impact metal case with a DIN Rail mount bracket, designed for indoor use but can work outdoors by
covering it with a waterproof case. It works with an input voltage of 50-57Vdc and operates under -40°C to +65°C.
For planning purposes, the effective distance is 100 meters over Cat6 cables.
-Appearance-
Product Diagram
Ｄｅｃｌａｒａｔｉｏｎ
Copyright ©2024 Creative Lianjie Network
Technology Co.Ltd
1
2
3
4
5
1. DC Power Indicator
2. PoE Ouput Port
3. SFP Input Port
6
4. Data Indicator
5. PoE Load Indicator
7
6. DC Input port
8 7. DIN Rail Mounting
Bracket
8. GND Terminal
This document belongs to PROCET company. It is not
allowed to reproduce and modify without the original
author's permission. It is PROCET's policy to improve its
products as new technology components, software , and
firmware at any time. PROCET, therefore, reserves the right
to change specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic
Equipment) disposal instructions for old electronic
products.Please do not dispose of the old product in your
general household waste bin.
The symbol indicates that the product should not be
discarded as unsorted waste but must be sent to separate
collection facilities for recovery and recycling.
95.0mm
All rights reserved.
35.4mm

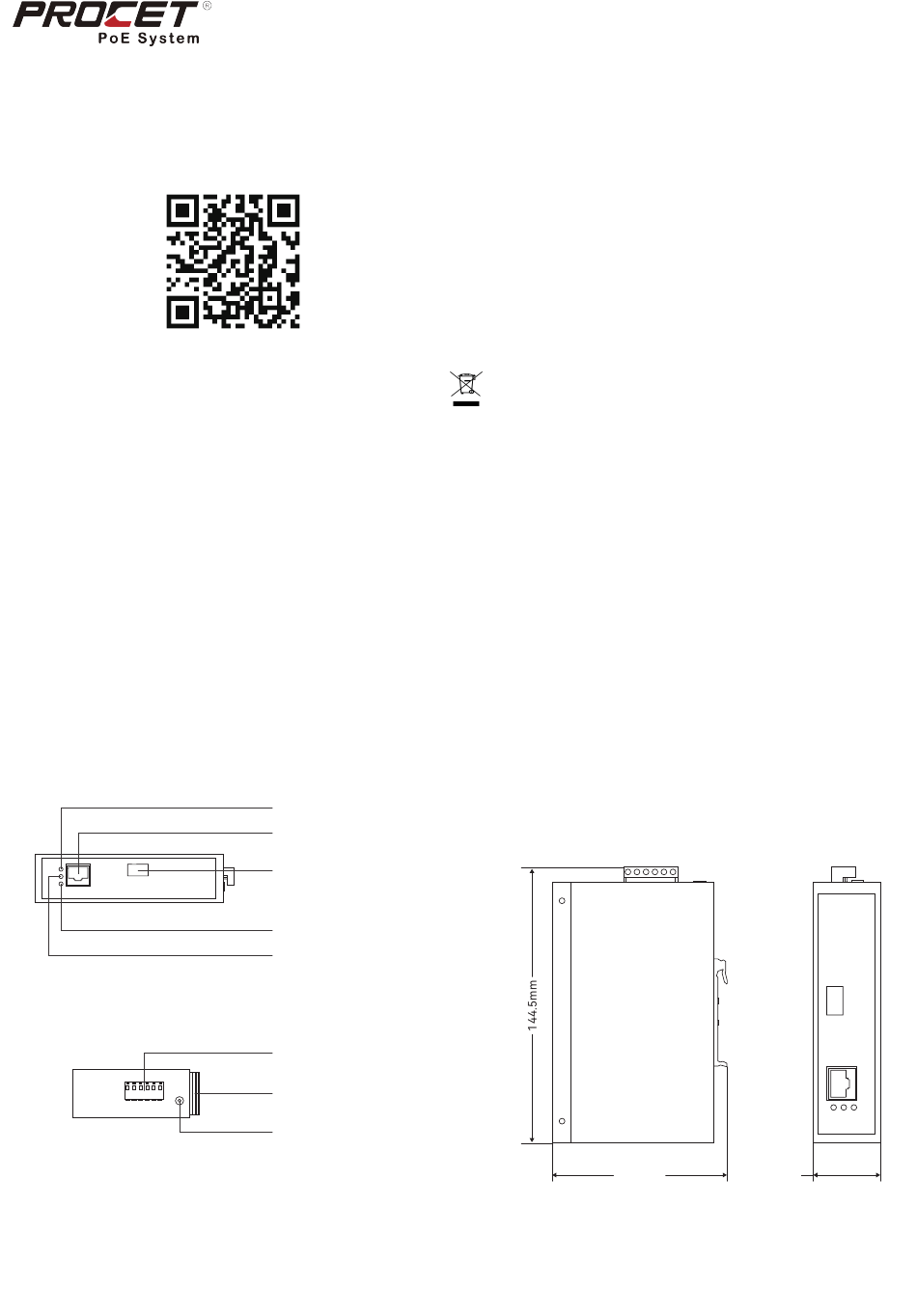

Dimensions
